Description

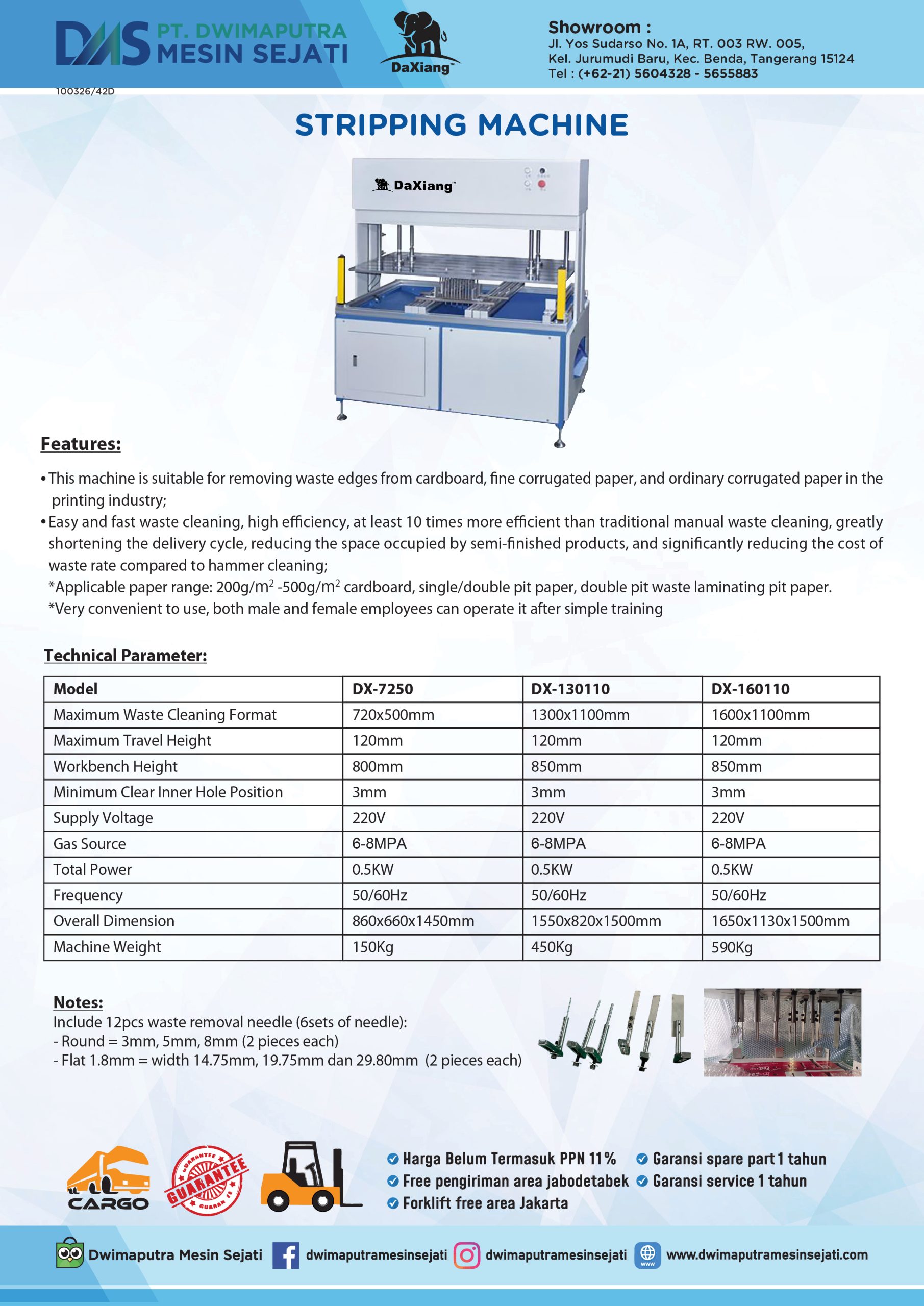

INTRODUCTION & TECHNICAL SPECIFICATION
- This machine is suitable for removing waste edges from cardboard, fine corrugated paper, and ordinary corrugated paper in the printing industry;
- Easy and fast waste cleaning, high efficiency, at least 10 times more efficient than traditional manual waste cleaning, greatly shortening the delivery cycle, reducing the space occupied by semi-finished products, and significantly reducing the cost of waste rate compared to hammer cleaning; *Applicable paper range: 200g/m-500g/m cardboard, single/double pit paper, double pit waste laminating pit paper. “Very convenient to use, both male and female employees can operate it after simple training
| Model | DX-ST720 | DX-ST1300 | DX-ST1600 |
| Maximum Waste Cleaning Format | 720x500mm | 1300x1100mm | 1600x1100mm |
| Maximum Travel Height | 120mm | 120mm | 120mm |
| Workbench Height | 800mm | 850mm | 850mm |
| Minimum Clear Inner Hole Position | 3mm | 3mm | 3mm |
| Supply Voltage | 220V | 220V | 220V |
| Gas Source | 6-8MPA | 6-8MPA | 6-8MPA |
| Total Power | 0.5KW | 0.5KW | 0.5KW |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Overall Dimension | 860x660x1450mm | 1550x820x1500mm | 1650x1130x1500mm |
