Description
INTRODUCTION & TECHNICAL SPECIFICATION

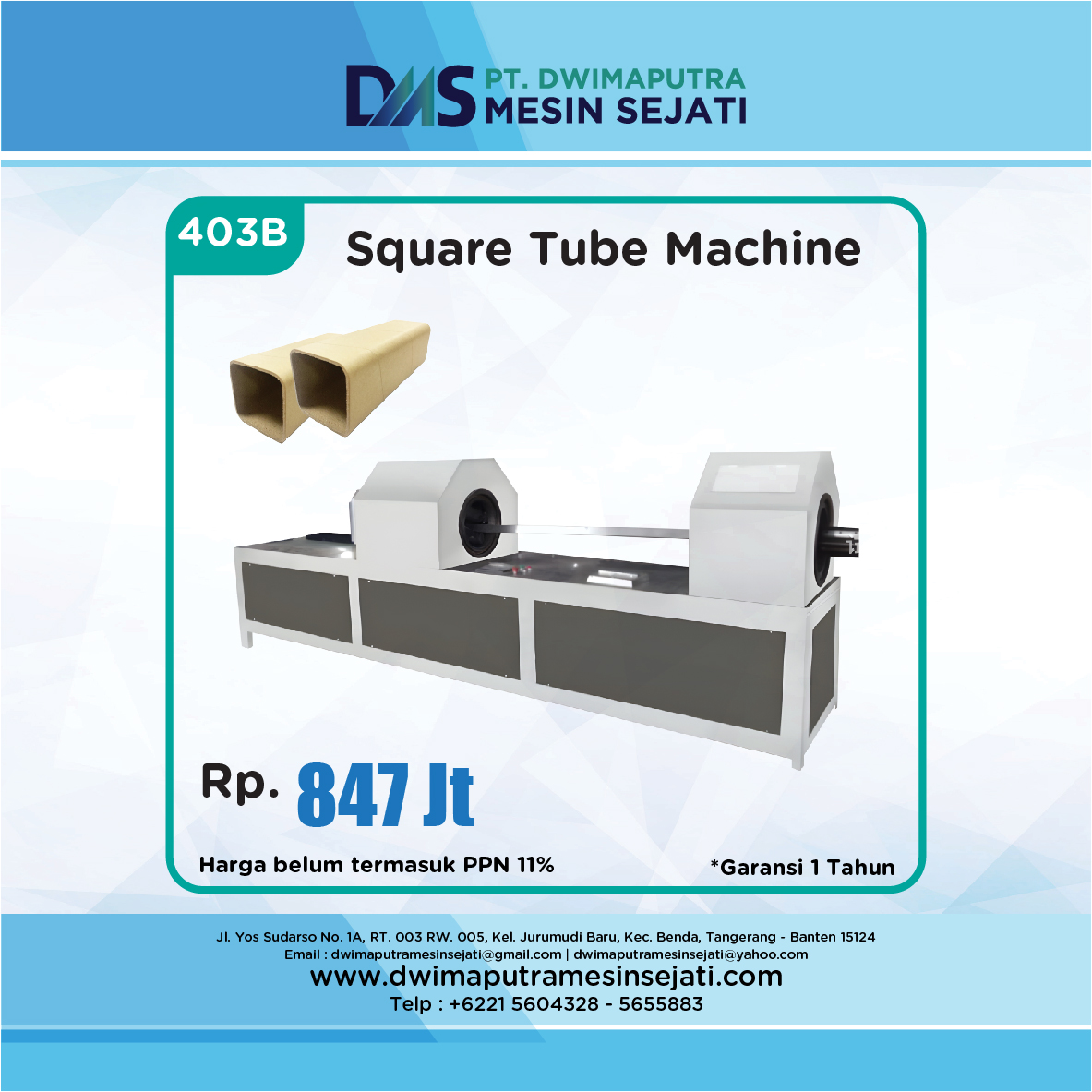

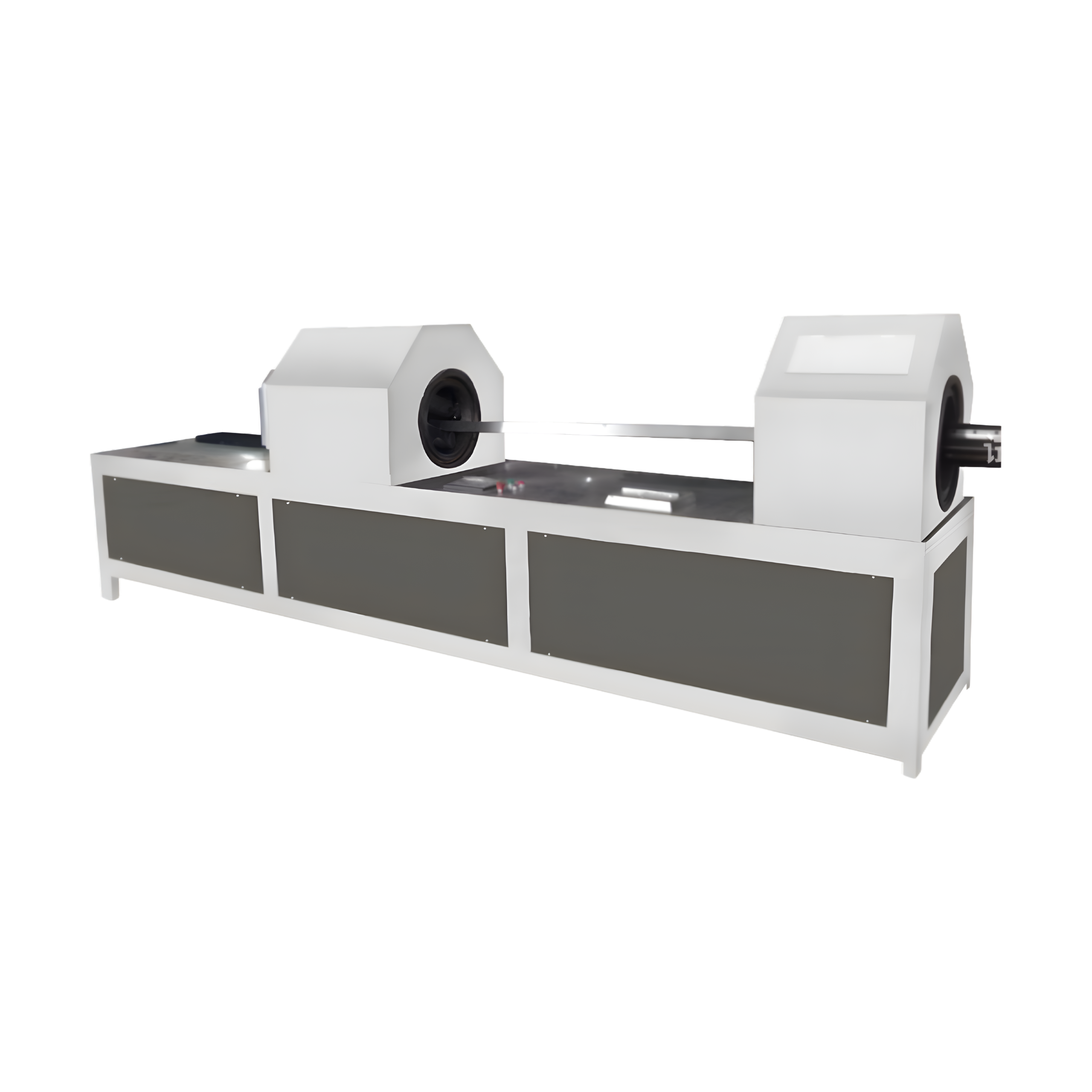

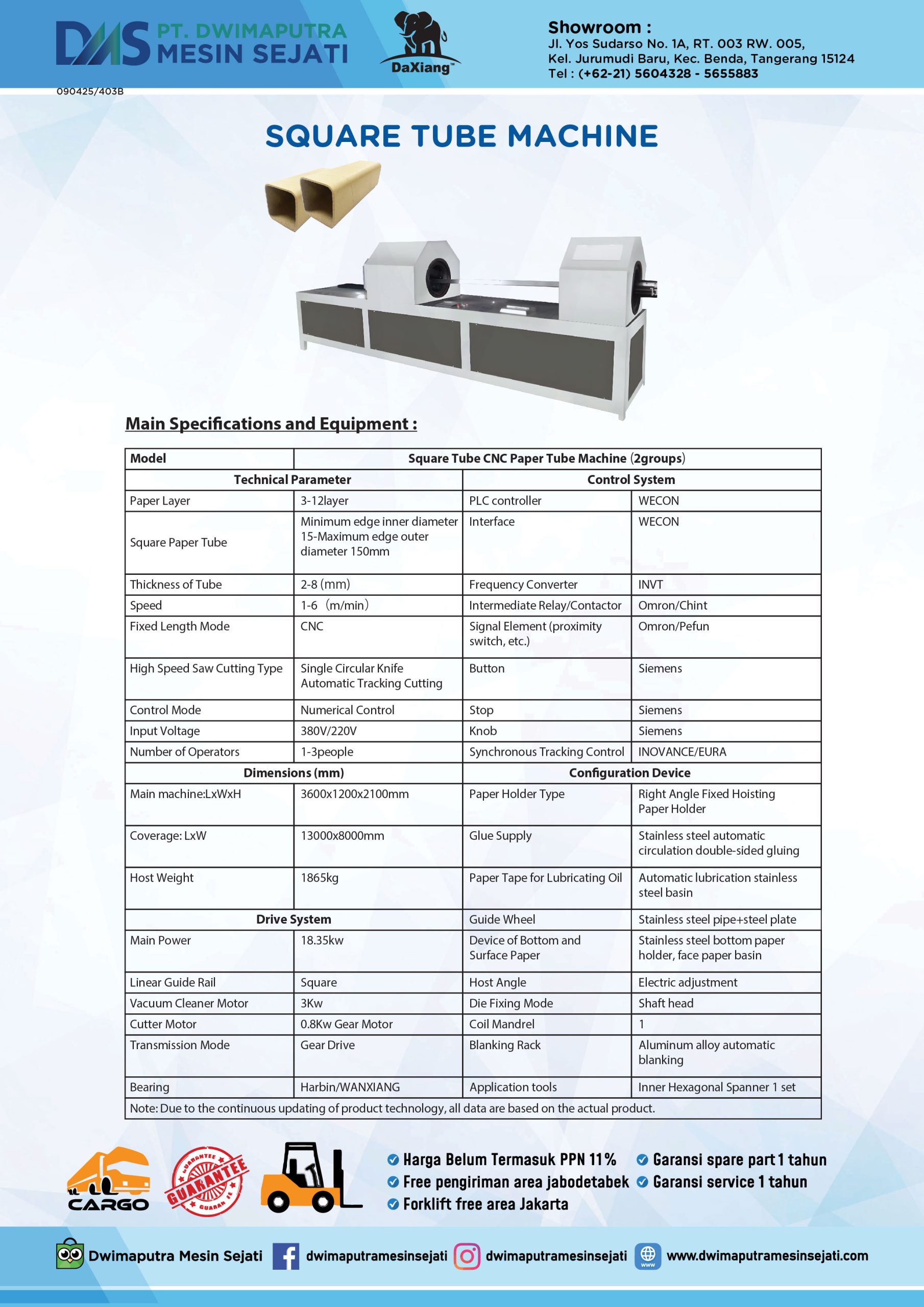

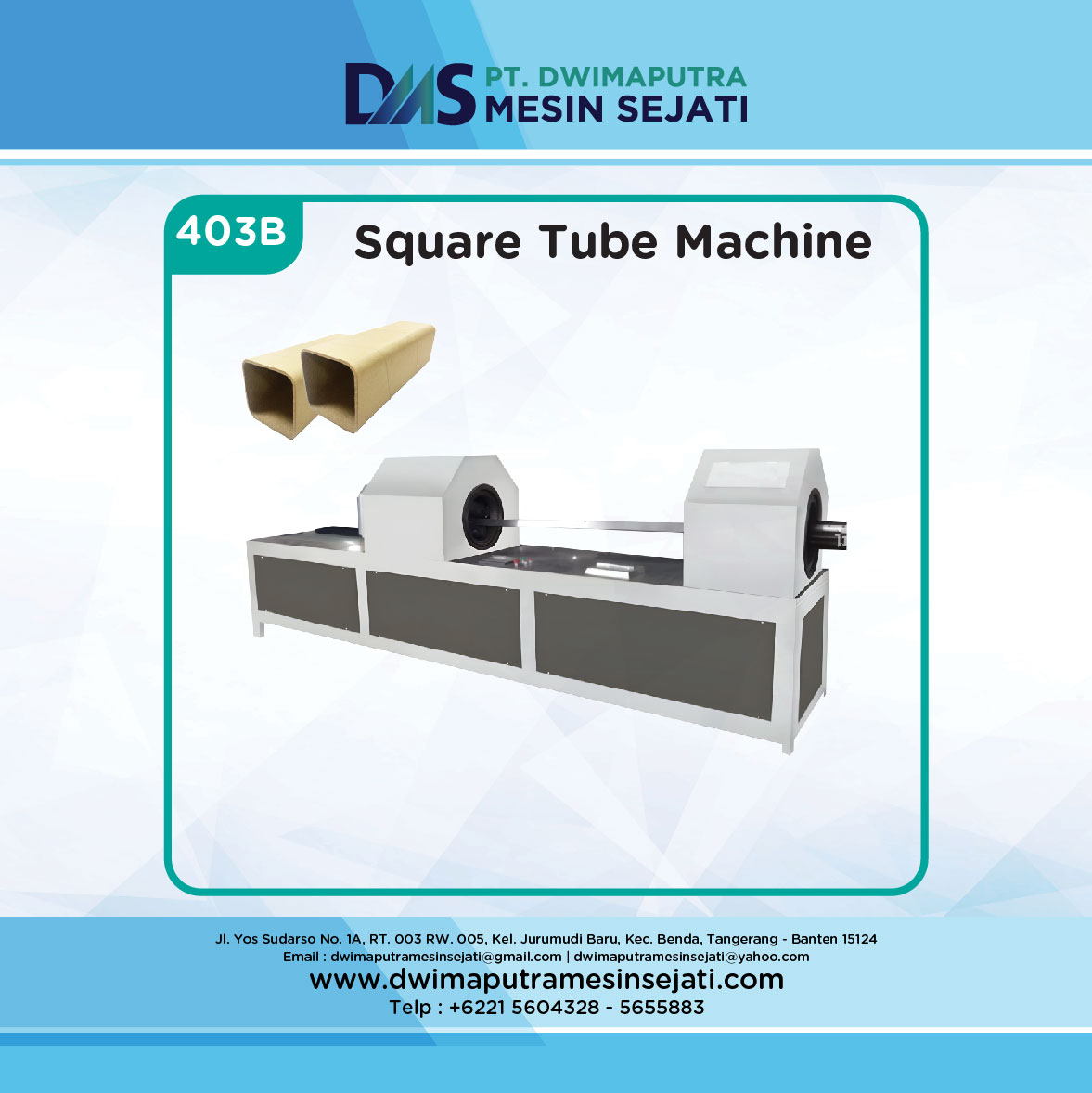

| Model | Square Tube CNC Paper Tube Machine (2groups) | ||
| Technical Parameter | Control System | ||
| Paper Layer | 3-12 layer | PLC controller | WECON |
| Square Paper Tube | Minimum edge inner diameter 15-Maximum edge outer diameter 150mm | Interface | WECON |
| Thickness of Tube | 2-8 (mm) | Frequency Converter | INVT |
| Speed | 1-6 (m/min) | Intermediate Relay/Contactor | Omron/Chint |
| Fixed Length Mode | CNC | Signal Element (proximity switch, etc.) | Omron/Pefun |
| High Speed Saw Cutting Type | Single Circular Knife Automatic Tracking Cutting | Button | Siemens |
| Control Mode | Numerical Control | Stop | Siemens |
| Input Voltage | 380V/220V | Knob | Siemens |
| Number of Operators | 1-3people | Synchronous Tracking Control | INOVANCE/EURA |
| Dimensions (mm) | Configuration Device | ||
| Main machine:LxWxH | 3600x1200x2100mm | Paper Holder Type | Right Angle Fixed Hoisting Paper Holder |
| Coverage: LxW | 13000x8000mm | Glue Supply | Stainless steel automatic circulation double-sided gluing |
| Host Weight | 1865kg | Paper Tape for Lubricating Oil | Automatic lubrication stainless steel basin |
| Drive System | Guide Wheel | Stainless steel pipe+steel plate | |
| Main Power | 18.35kw | Device of Bottom and Surface Paper | Stainless steel bottom paper holder, face paper basin |
| Linear Guide Rail | Square | Host Angle | Electric adjustment |
| Vacuum Cleaner Motor | 3Kw | Die Fixing Mode | Shaft head |
| Cutter Motor | 0.8Kw Gear Motor | Coil Mandrel | 1 |
| Transmission Mode | Gear Drive | Blanking Rack | Aluminum alloy automatic blanking |
| Bearing | Harbin/WANXIANG | Application tools | Inner Hexagonal Spanner 1 set |
| Note: Due to the continuous updating of product technology, all data are based on the actual product. | |||
