Description

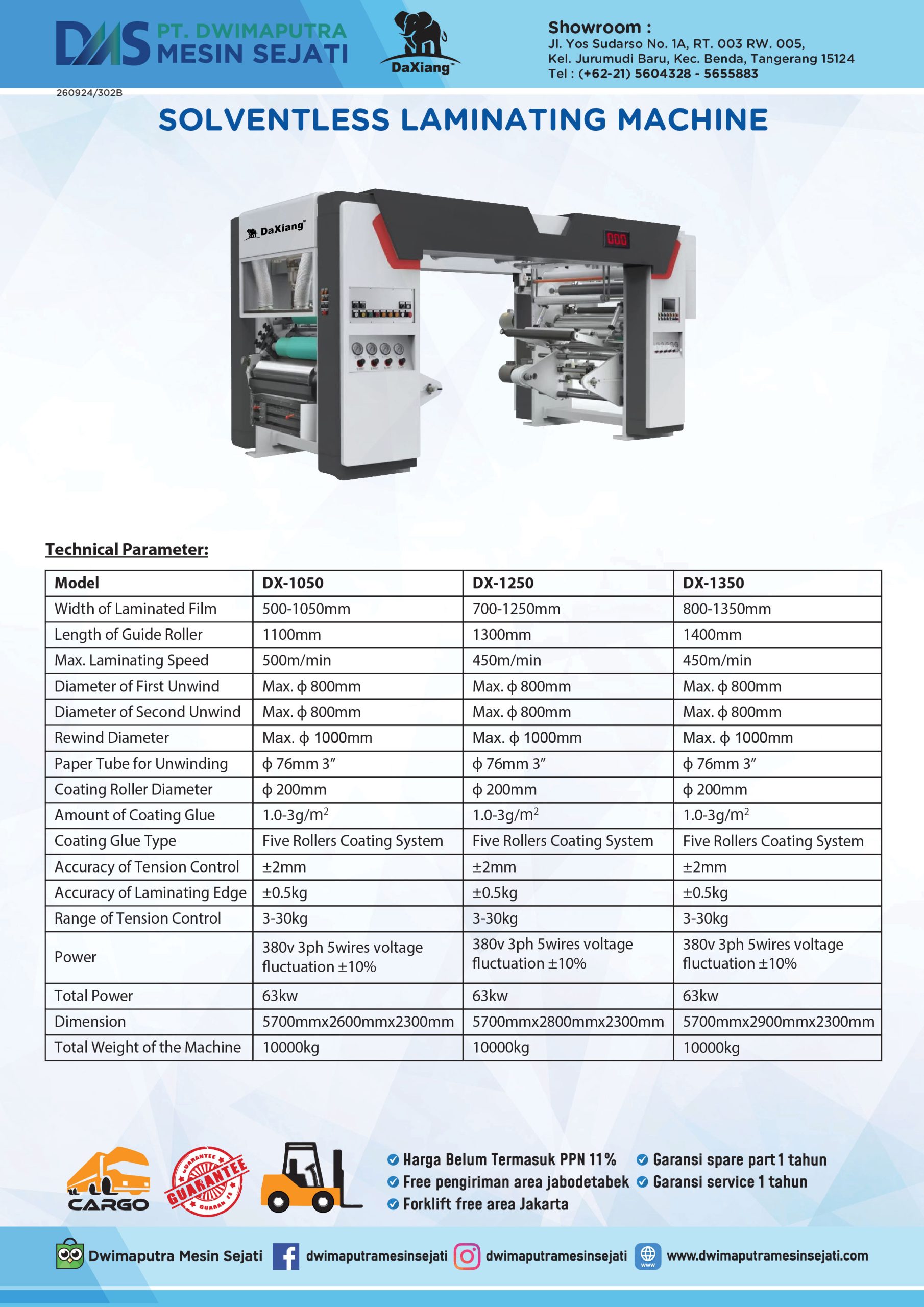

INTRODUCTION & TECHNICAL SPECIFICATION
| Model | DX-1050 | DX-1250 | DX-1350 |
| Width of Laminated Film | 500-1050mm | 700-1250mm | 800-1350mm |
| Length of Guide Roller | 1100mm | 1300mm | 1400mm |
| Max. Laminating Speed | 500m/min | 450m/min | 450m/min |
| Diameter of First Unwind | Max. Ø 800mm | Max. Ø 800mm | Max. Ø 800mm |
| Diameter of Second Unwind | Max. Ø 800mm | Max. Ø 800mm | Max. Ø 800mm |
| Rewind Diameter | Max. Ø 1000mm | Max. Ø 1000mm | Max. Ø 1000mm |
| Paper Tube for Unwinding | Ø 76mm 3″ | Ø 76mm 3″ | Ø 76mm 3″ |
| Coating Roller Diameter | Ø 200mm | Ø 200mm | Ø 200mm |
| Amount of Coating Glue | 1.0-3g/m² | 1.0-3g/m² | 1.0-3g/m² |
| Coating Glue Type | Five Rollers Coating System | Five Rollers Coating System | Five Rollers Coating System |
| Accuracy of Tension Control | ±2mm | ±2mm | ±2mm |
| Accuracy of Laminating Edge | ±0.5kg | ±0.5kg | ±0.5kg |
| Range of Tension Control | 3-30kg | 3-30kg | 3-30kg |
| Power | 380v 3ph 5wires voltage fluctuation ±10% | 380v 3ph 5wires voltage fluctuation ±10% | 380v 3ph 5wires voltage fluctuation ±10% |
| Total Power | 63kw | 63kw | 63kw |
| Dimension | 5700mmx2600mmx2300mm | 5700mmx2800mmx2300mm | 5700mmx2900mmx2300mm |
| Total Weight of the Machine | 10000kg | 10000kg | 10000kg |
