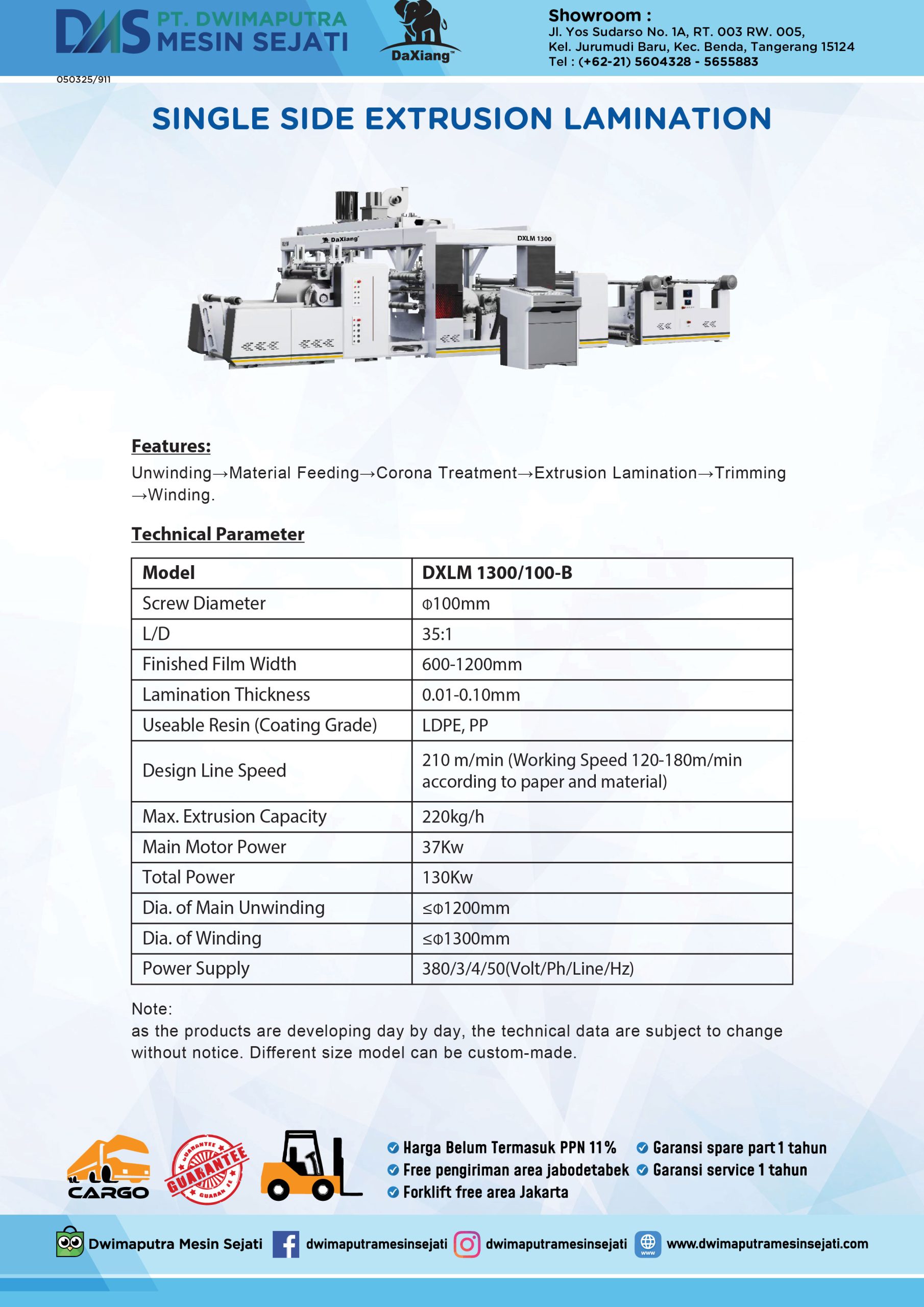

INTRODUCTION & TECHNICAL SPECIFICATION
Unwinding → Material Feeding → Corona Treatment → Extrusion Lamination → Trimming → Winding.
| Model | DXLM 1300/100-B |
| Screw Diameter | Ø 100mm |
| L/D | 35:1 |
| Finished Film Width | 600-1200mm |
| Lamination Thickness | 0.01-0.10mm |
| Useable Resin (Coating Grade) | LDPE, PP |
| Design Line Speed | 210 m/min (Working Speed 120-180m/min according to paper and material) |
| Max. Extrusion Capacity | 220kg/h |
| Main Motor Power | 37Kw |
| Total Power | 130Kw |
| Dia. of Main Unwinding | ≤ Ø 1200mm |
| Dia. of Winding | ≤ Ø 1300mm |
| Power Supply | 380/3/4/50 (Volt/Ph/Line/Hz) |
Note: as the products are developing day by day, the technical data are subject to change without notice. Different size model can be custom-made.
