SEMI AUTO CORNER STICKING

Description

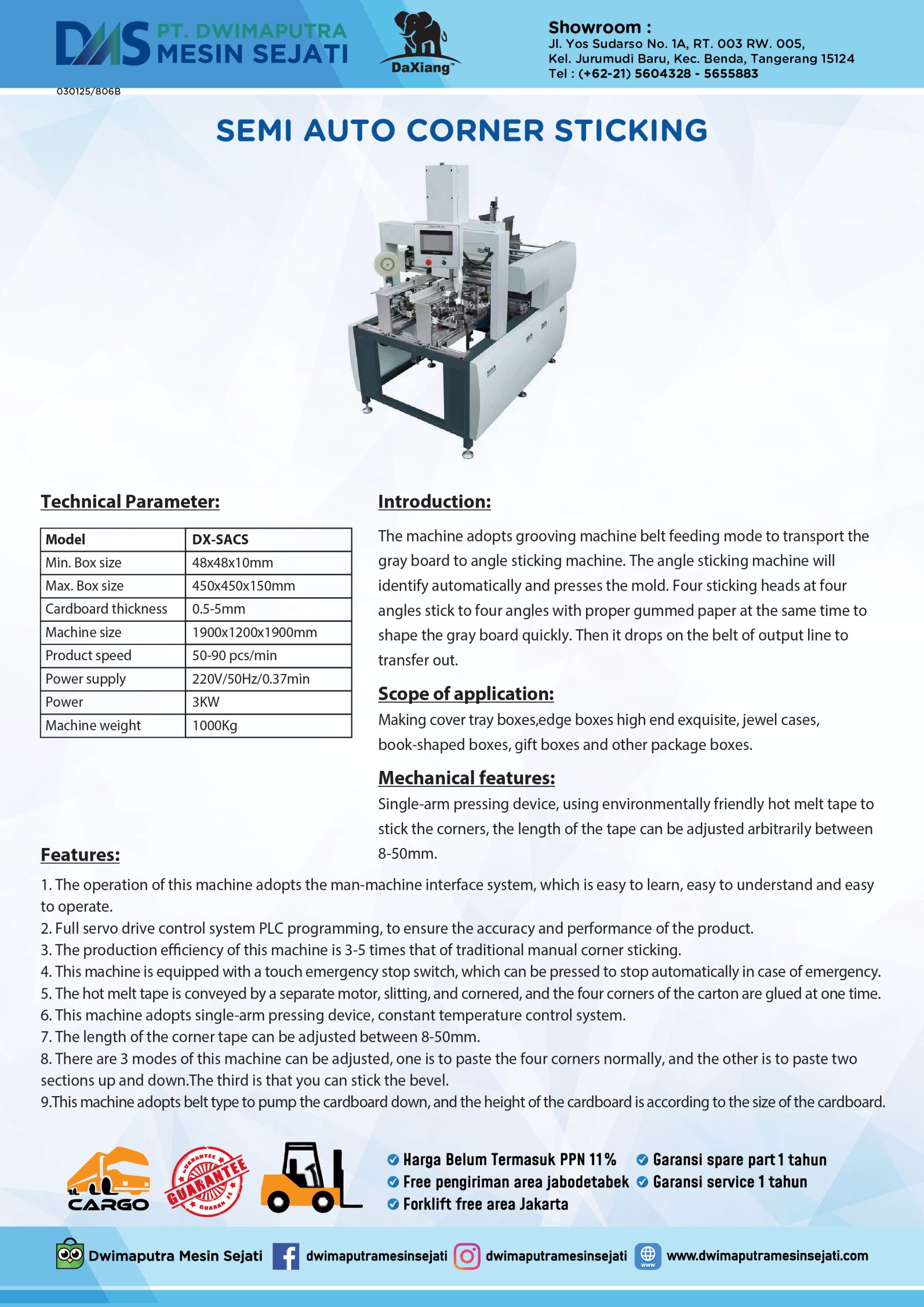

INTRODUCTION & TECHNICAL SPECIFICATION

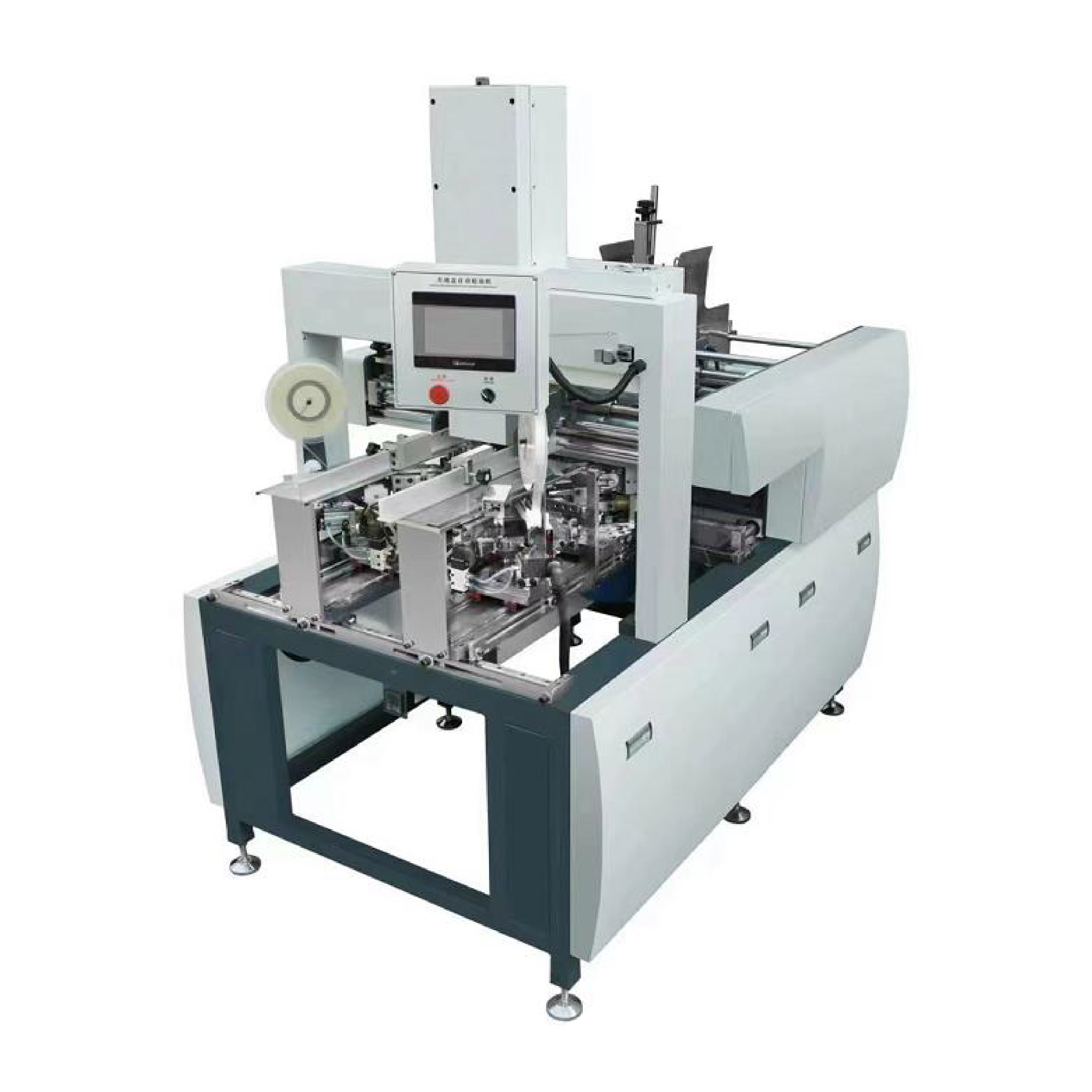

The machine adopts grooving machine belt feeding mode to transport the gray board to angle sticking machine. The angle sticking machine will identify automatically and presses the mold. Four sticking heads at four angles stick to four angles with proper gummed paper at the same time to shape the gray board quickly. Then it drops on the belt of output line to transfer out.

Scope of application: Making cover tray boxes, edge boxes high end exquisite, jewel cases, book-shaped boxes, gift boxes and other package boxes.

Mechanical features: Single-arm pressing device, using environmentally friendly hot melt tape to stick the corners, the length of the tape can be adjusted arbitrarily between 8-50mm.

Features:

1. The operation of this machine adopts the man-machine interface system, which is easy to learn, easy to understand and easy to operate.
2. Full servo drive control system PLC programming, to ensure the accuracy and performance of the product.
3. The production efficiency of this machine is 3-5 times that of traditional manual corner sticking.
4. This machine is equipped with a touch emergency stop switch, which can be pressed to stop automatically in case of emergency.
5. The hot melt tape is conveyed by a separate motor, slitting, and cornered, and the four corners of the carton are glued at one time.
6. This machine adopts single-arm pressing device, constant temperature control system.
7. The length of the corner tape can be adjusted between 8-50mm.
8. There are 3 modes of this machine can be adjusted, one is to paste the four corners normally, and the other is to paste two sections up and down. The third is that you can stick the bevel.
9. This machine adopts belt type to pump the cardboard down, and the height of the cardboard is according to the size of the cardboard.
