Description
INTRODUCTION & TECHNICAL SPECIFICATION

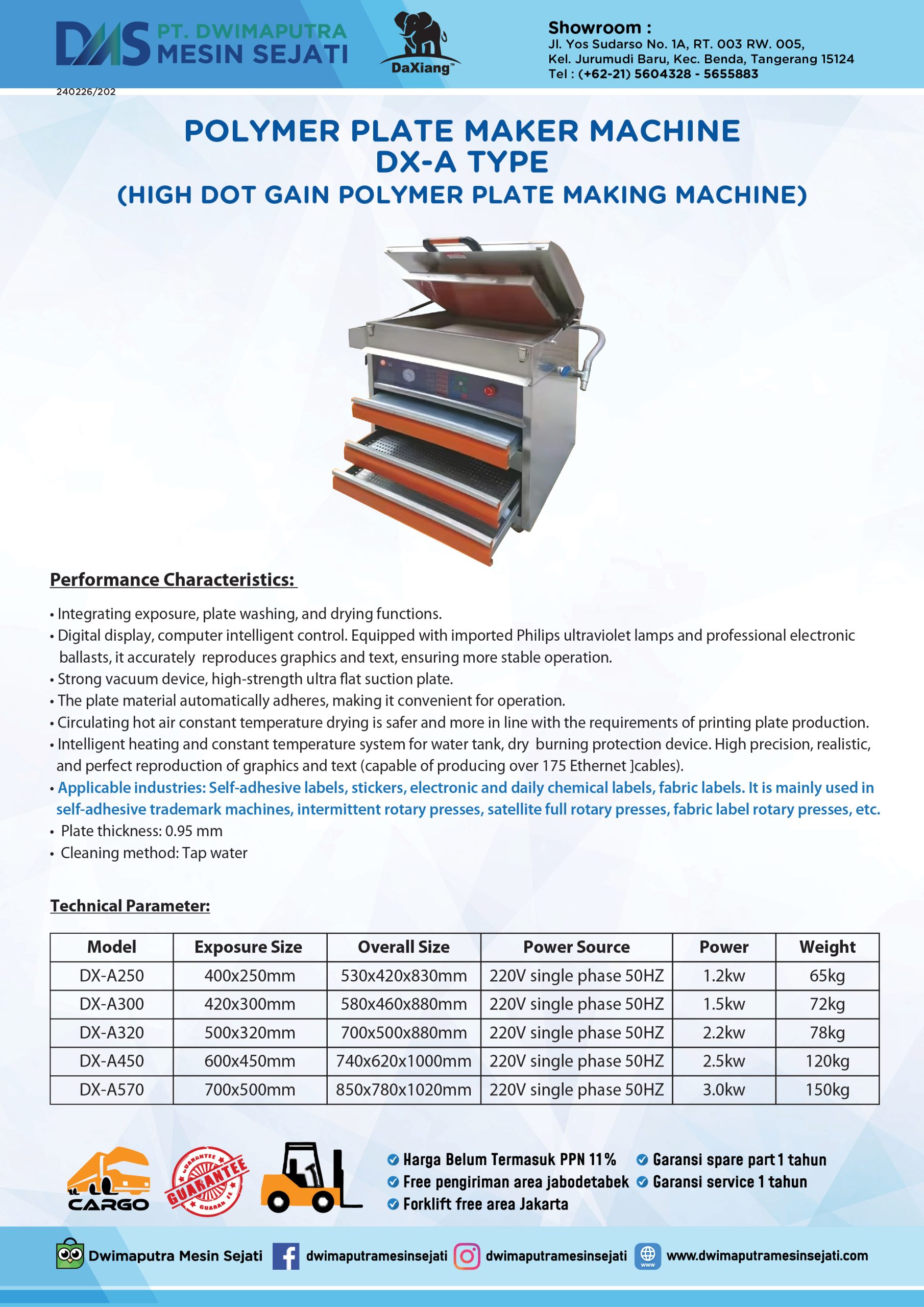

DX-A TYPE
Suitable for printing plate production in the self-adhesive and label industries.
| Model | Exposure Size | Overall Size | Power Source | Power | Weight |
| DX-A250 | 400 x 250mm | 530 x 420 x 830mm | 220V single phase 50HZ | 1.2kw | 65kg |
| DX-A300 | 420 x 300mm | 580 x 460 x 880mm | 220V single phase 50HZ | 1.5kw | 72kg |
| DX-A320 | 500 x 320mm | 700 x 500 x 880mm | 220V single phase 50HZ | 2.2kw | 78kg |
| DX-A450 | 600 x 450mm | 740 x 620 x 1000mm | 220V single phase 50HZ | 2.5kw | 120kg |
| DX-A570 | 700 x 500mm | 850 x 780 x 1020mm | 220V single phase 50HZ | 3.0kw | 150kg |
DX-C TYPE
Suitable for: clothing labels, paper bags, tape, corrugated box packaging, and printing plate production.
| Model | Exposure Size | Overall Size | Power Source | Power | Weight |
| DX-C300 | 420×300 mm | 560x460x1020mm | 220V single phase 50HZ | 1.6 kw | 78kg |
| DX-C450 | 600x450mm | 740x620x1200mm | 220V single phase 50HZ | 2.6kw | 130kg |
| DX-C960 | 900x600mm | 1100x800x1280mm | 220V single phase 50HZ | 4.5kw | 260kg |
| DX-C1280 | 1200x800mm | 1400x1000x1380mm | 220V single phase 50HZ | 5.2kw | 320kg |
