Description
INTRODUCTION & TECHNICAL SPECIFICATION

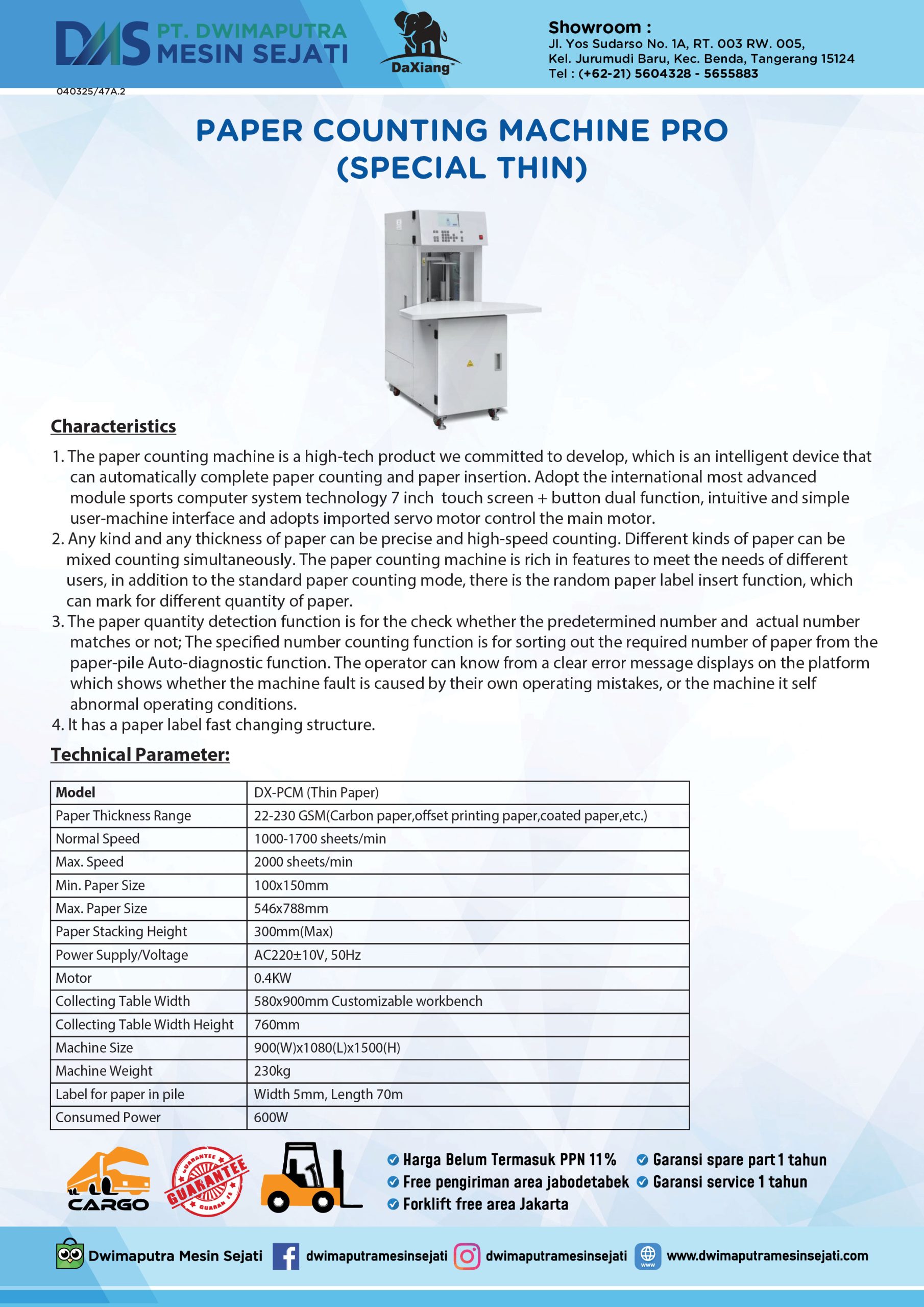

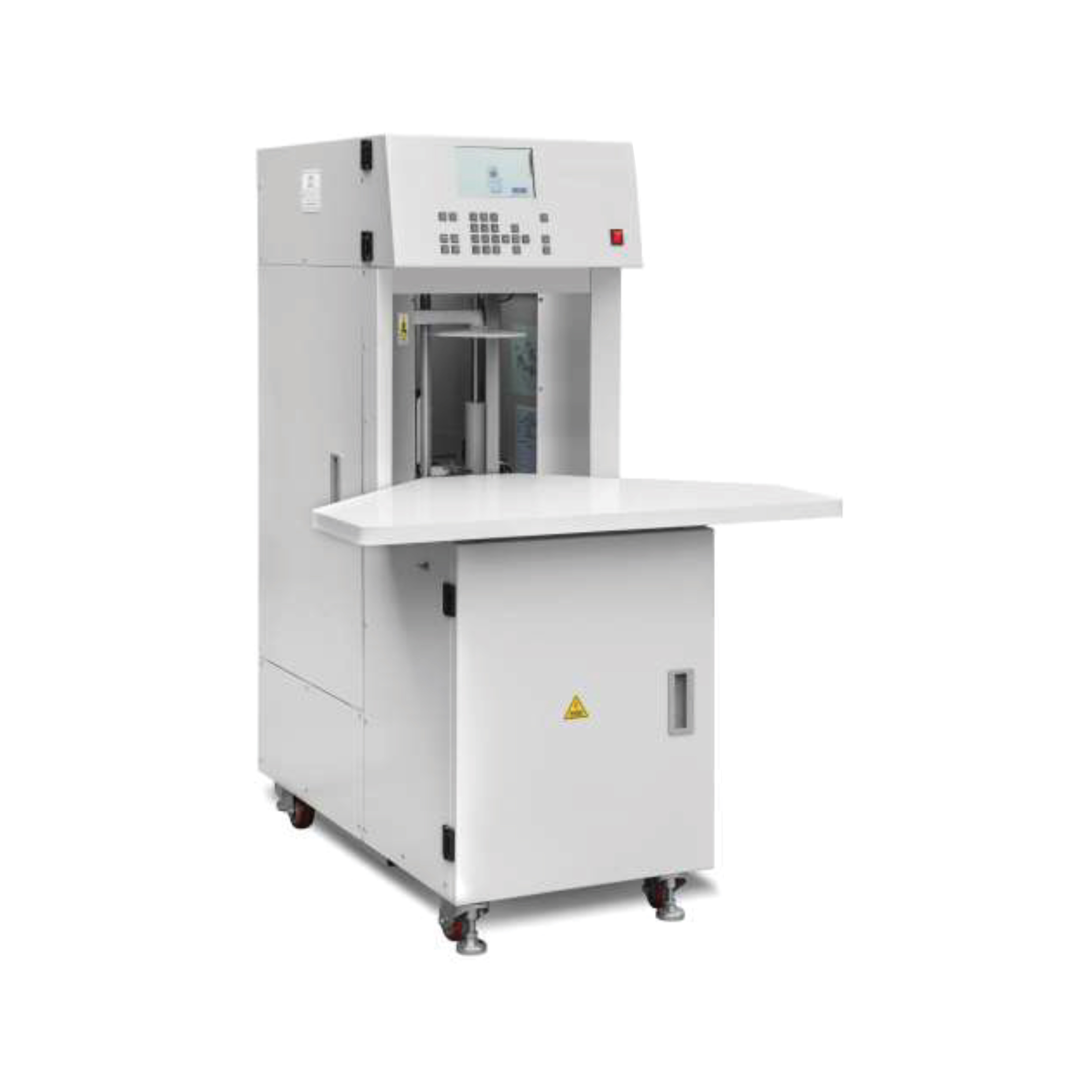

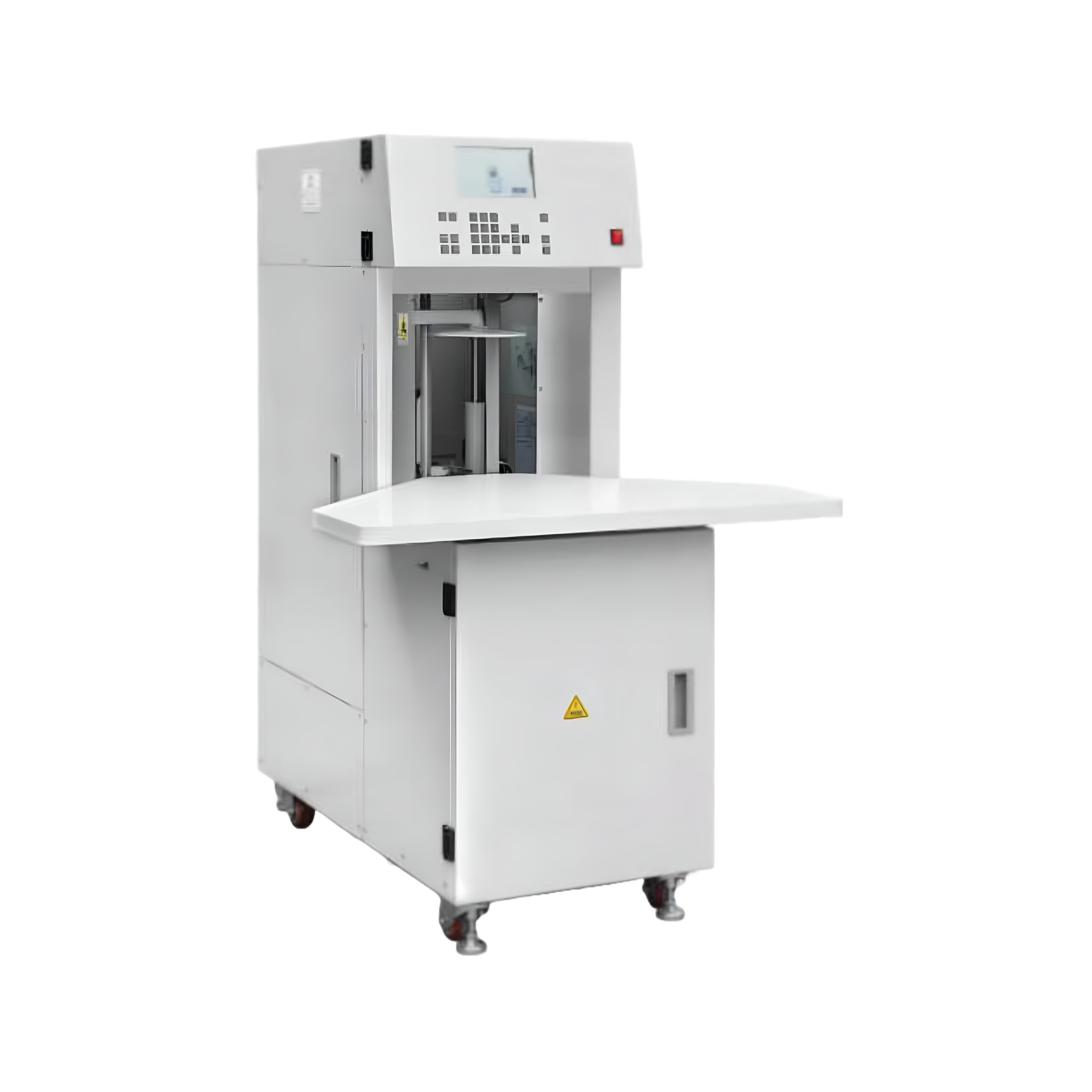

SPECIAL THIN
- The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function, intuitive and simple user-machine interface and adopts imported servo motor control the main motor.
- Any kind and any thickness of paper can be precise and high-speed counting. Different kinds of paper can be mixed counting simultaneously. The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function, which can mark for different quantity of paper.
- The paper quantity detection function is for the check whether the predetermined number and actual number matches or not; The specified number counting function is for sorting out the required number of paper from the paper-pile Auto-diagnostic function. The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine it self abnormal operating conditions.
- It has a paper label fast changing structure.
| Model | DX-PCM (Thin Paper) |
| Paper Thickness Range | 22-230 GSM(Carbon paper, offset printing paper, coated paper,etc.) |
| Normal Speed | 1000-1700 sheets/min |
| Max. Speed | 2000 sheets/min |
| Min. Paper Size | 100x150mm |
| Max. Paper Size | 546x788mm |
| Paper Stacking Height | 300mm(Max) |
| Power Supply/Voltage | AC220±10V, 50Hz |
| Motor | 0.4KW |
| Collecting Table Width | 580x900mm Customizable workbench |
| Collecting Table Width Height | 760mm |
| Machine Size | 900(W)x1080(L)x1500(H) |
| Machine Weight | 230kg |
| Label for paper in pile | Width 5mm, Length 70m |
| Consumed Power | 600W |

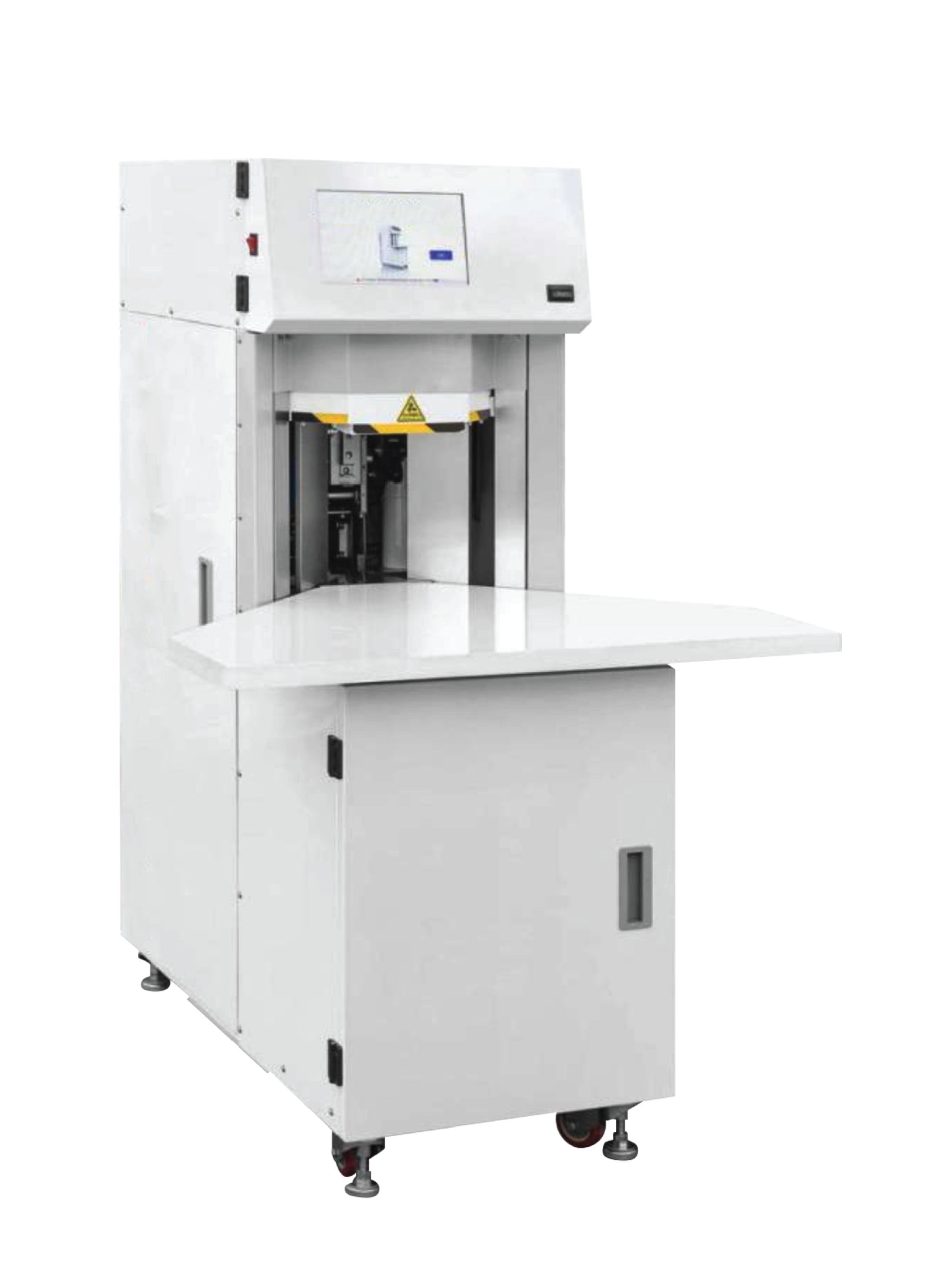

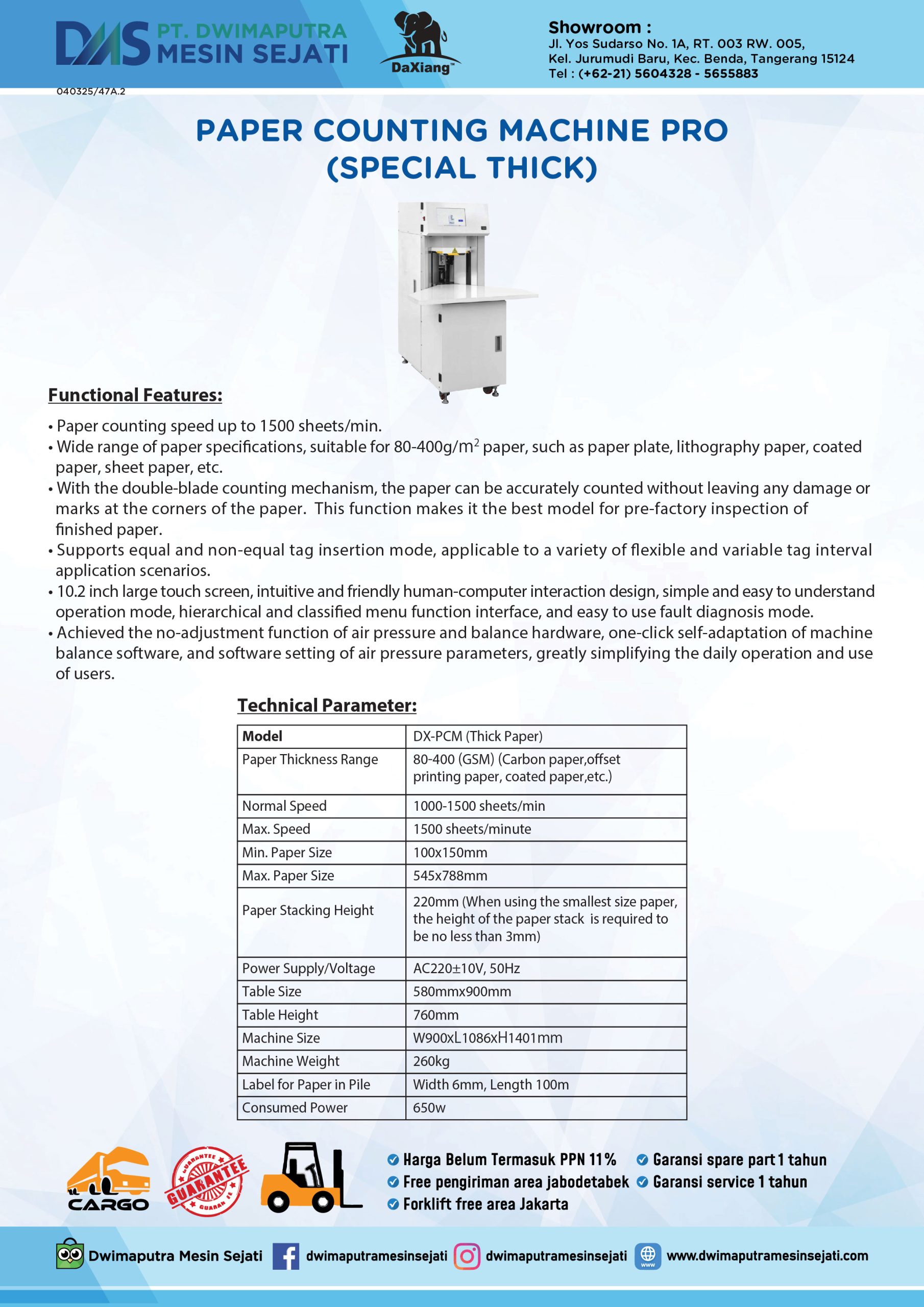

SPECIAL THICK
- Paper counting speed up to 1500 sheets/min.
- Wide range of paper specifications, suitable for 80-400g/m² paper, such as paper plate, lithography paper, coated paper, sheet paper, etc.
- With the double-blade counting mechanism, the paper can be accurately counted without leaving any damage or marks at the corners of the paper. This function makes it the best model for pre-factory inspection of finished paper.
- Supports equal and non-equal tag insertion mode, applicable to a variety of flexible and variable tag interval application scenarios.
- 10.2 inch large touch screen, intuitive and friendly human-computer interaction design, simple and easy to understand operation mode, hierarchical and classified menu function interface, and easy to use fault diagnosis mode.
- Achieved the no-adjustment function of air pressure and balance hardware, one-click self-adaptation of machine balance software, and software setting of air pressure parameters, greatly simplifying the daily operation and use of users.
| Model | DX-PCM (Thick Paper) |
| Paper Thickness Range | 80-400 (GSM) (Carbon paper, offset printing paper, coated paper,etc.) |
| Normal Speed | 1000-1500 sheets/min |
| Max. Speed | 1500 sheets/minute |
| Min. Paper Size | 100x150mm |
| Max. Paper Size | 545x788mm |
| Paper Stacking Height | 220mm (When using the smallest size paper, the height of the paper stack is required to be no less than 3mm) |
| Power Supply/Voltage | AC220±10V, 50Hz |
| Table Size | 580mmx900mm |
| Table Height | 760mm |
| Machine Size | W900xL1086xH1401mm |
| Machine Weight | 260kg |
| Label for paper in pile | Width 6mm, Length 100m |
| Consumed Power | 650w |
