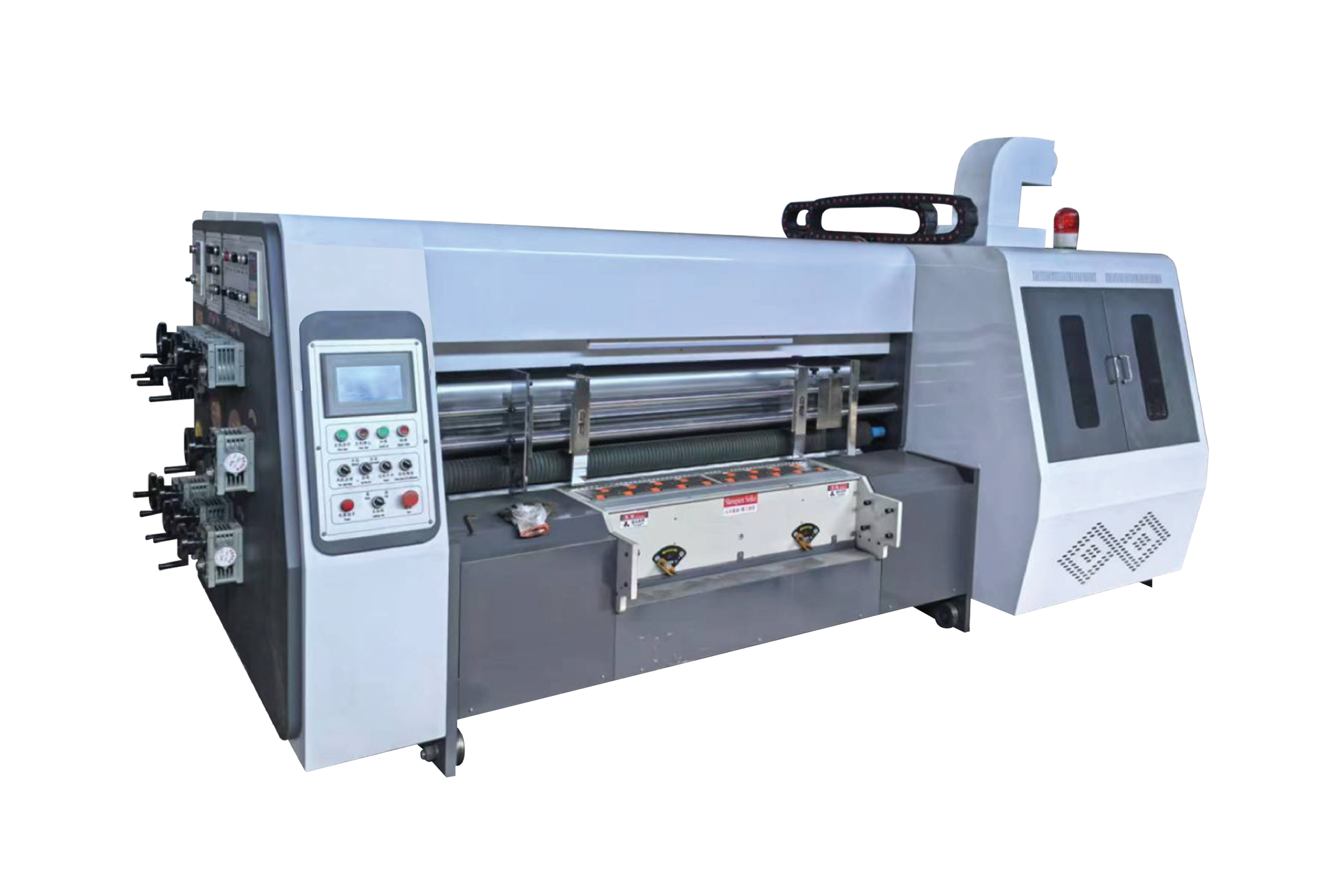

MINI AUTO PRINTING SLOTTER + STACKER 1850x600mm

Description

INTRODUCTION & TECHNICAL SPECIFICATION

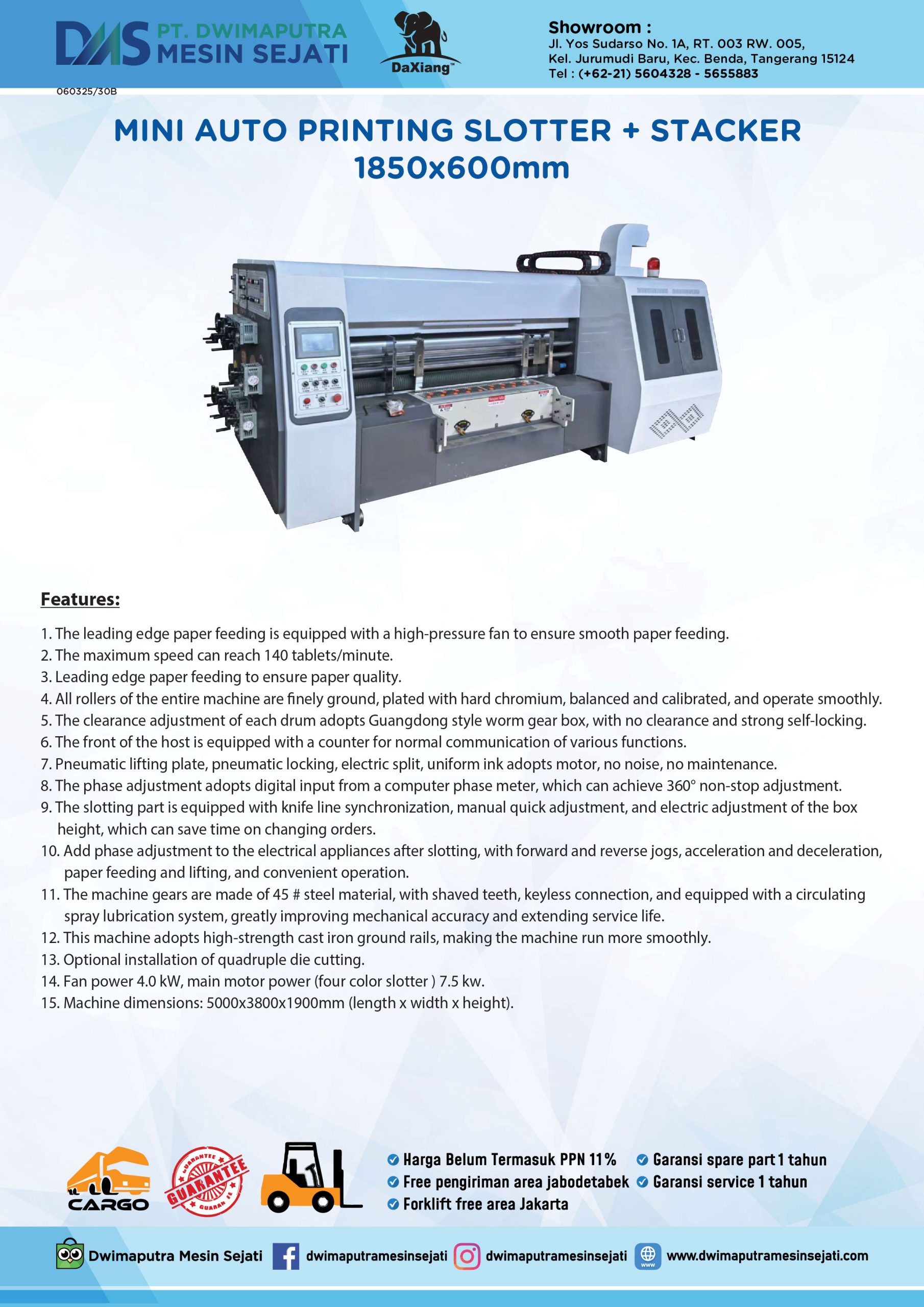

Features:

1. The leading edge paper feeding is equipped with a high-pressure fan to ensure smooth paper feeding.
2. The maximum speed can reach 140 tablets/minute.
3. Leading edge paper feeding to ensure paper quality.
4. All rollers of the entire machine are finely ground, plated with hard chromium, balanced and calibrated, and operate smoothly.
5. The clearance adjustment of each drum adopts Guangdong style worm gear box, with no clearance and strong self-locking.
6. The front of the host is equipped with a counter for normal communication of various functions.
7. Pneumatic lifting plate, pneumatic locking, electric split, uniform ink adopts motor, no noise, no maintenance.
8. The phase adjustment adopts digital input from a computer phase meter, which can achieve 360° non-stop adjustment.
9. The slotting part is equipped with knife line synchronization, manual quick adjustment, and electric adjustment of the box height, which can save time on changing orders.
10. Add phase adjustment to the electrical appliances after slotting, with forward and reverse jogs, acceleration and deceleration, paper feeding and lifting, and convenient operation.
11. The machine gears are made of 45 # steel material, with shaved teeth, keyless connection, and equipped with a circulating spray lubrication system, greatly improving mechanical accuracy and extending service life.
12. This machine adopts high-strength cast iron ground rails, making the machine run more smoothly.
13. Optional installation of quadruple die cutting.
14. Fan power 4.0 kW, main motor power (four color slotter) 7.5 kw.
15. Machine dimensions: 5000x3800x1900mm (length x width x height).
