HEAVY PRESSURE HIGH-SPEED THREE SIDE SEALING BAG MAKING MACHINE (CCD)
HEAVY PRESSURE HIGH-SPEED THREE SIDE SEALING BAG MAKING MACHINE (CCD) - Image 2
HEAVY PRESSURE HIGH-SPEED THREE SIDE SEALING BAG MAKING MACHINE (CCD) - Image 3

HEAVY PRESSURE HIGH-SPEED THREE SIDE SEALING BAG MAKING MACHINE (CCD)

PT. Dwimaputra Mesin Sejati, distributor dan layanan purna jual berbagai mesin berkualitas.

Hubungi kami untuk informasi lebih lanjut

Category:

Description

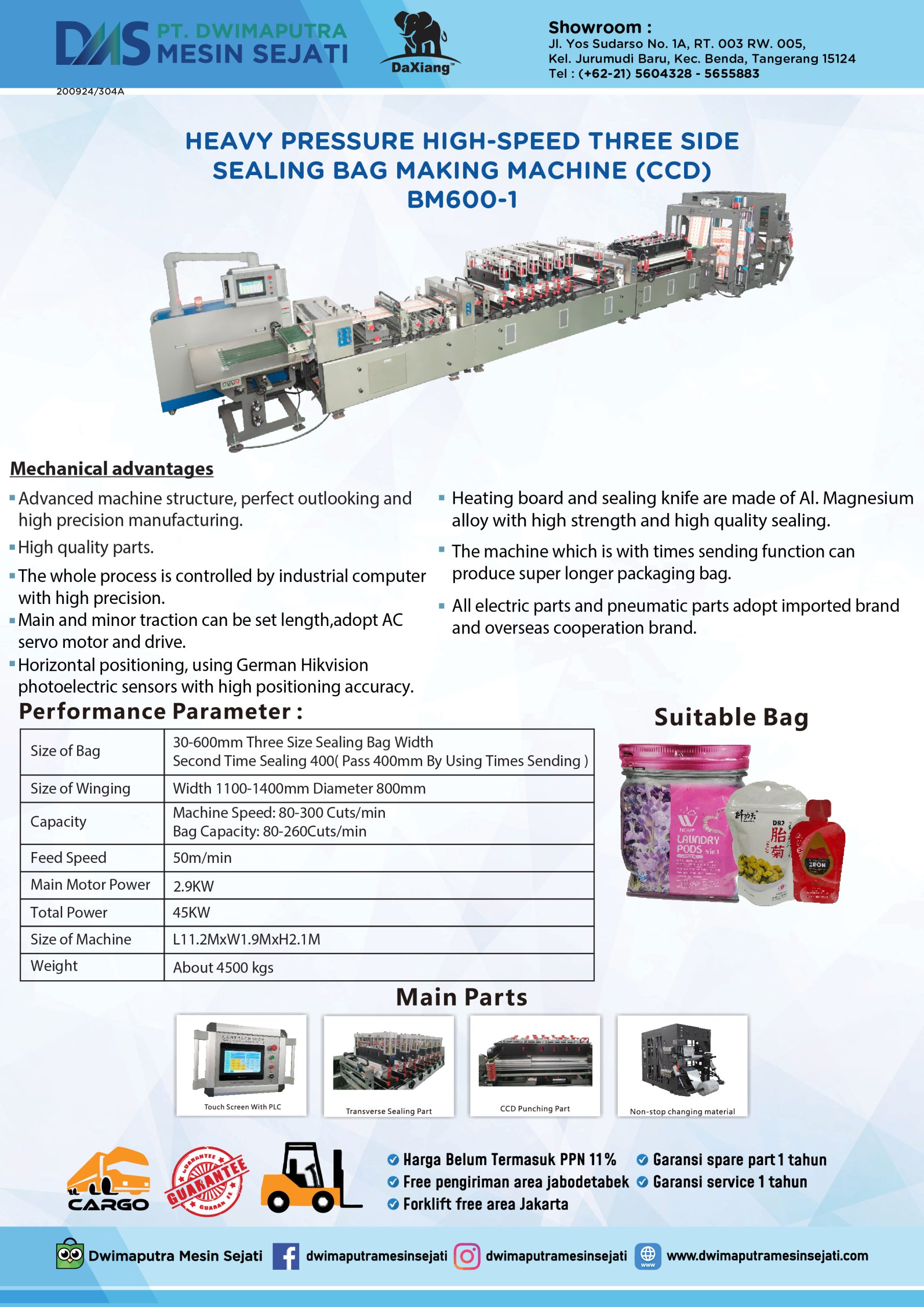

INTRODUCTION & TECHNICAL SPECIFICATION

  • Advanced machine structure, perfect outlooking and high precision manufacturing.
  • High quality parts.
  • The whole process is controlled by industrial computer with high precision.
  • Main and minor traction can be set length, adopt AC servo motor and drive.
  • Horizontal positioning, using German Hikvision photoelectric sensors with high positioning accuracy.
  • Heating board and sealing knife are made of Al. Magnesium alloy with high strength and high quality sealing.
  • The machine which is with times sending function can produce super longer packaging bag.
  • All electric parts and pneumatic parts adopt imported brand and overseas cooperation brand.
Size of Bag 30-600mm Three Size Sealing Bag Width Second Time Sealing 400 (Pass 400mm By Using Times Sending)
Size of Winging Width 1100-1400mm Diameter 800mm
Capacity Machine Speed: 80-300 Cuts/min

Bag Capacity: 80-260Cuts/min
Feed Speed 50m/min
Main Motor Power 2.9KW
Total Power 45KW
Size of Machine L11.2MxW1.9MxH2.1M
Weight About 4500 kgs
