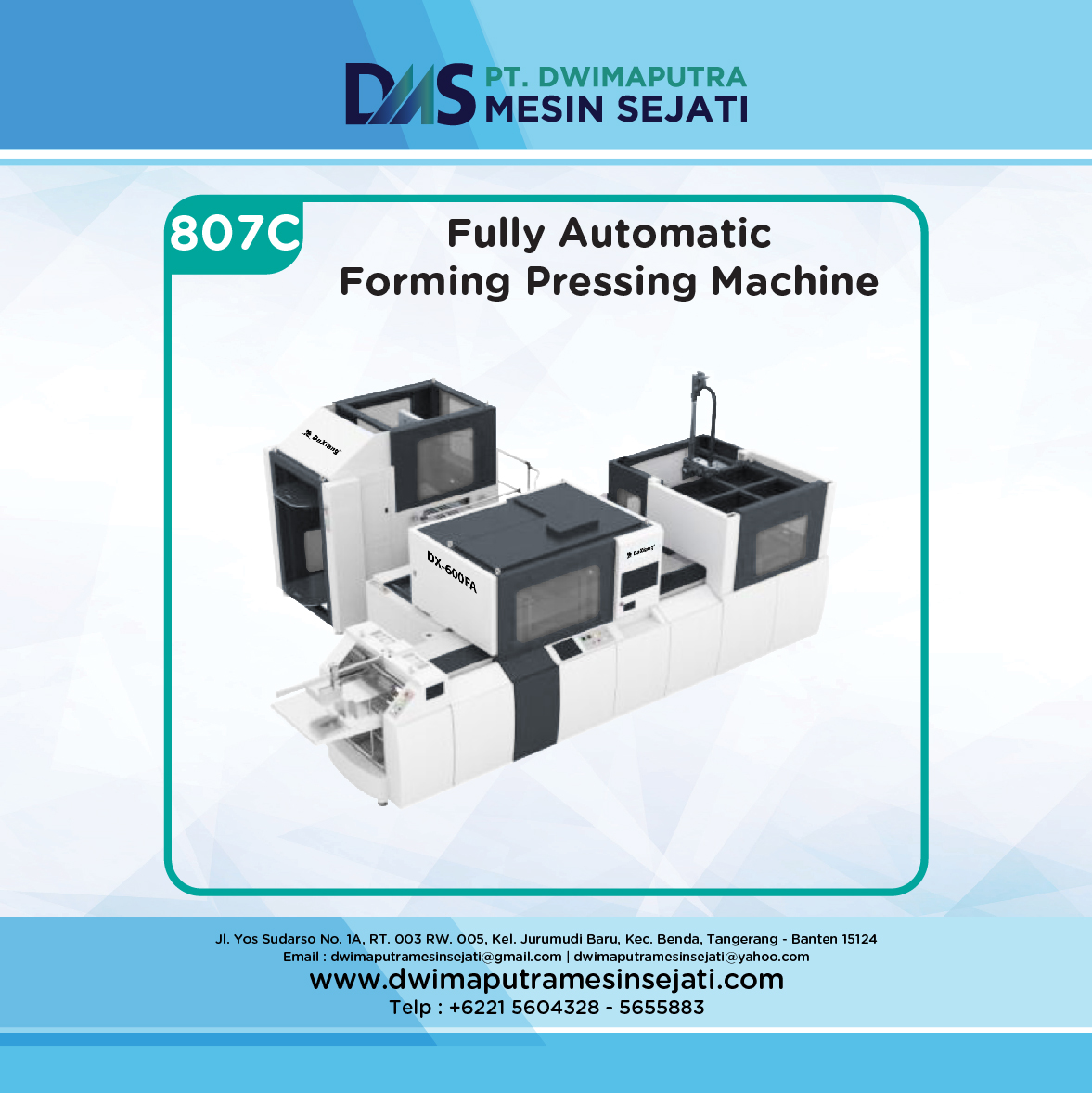

FULLY AUTOMATIC FORMING PRESSING MACHINE
FULLY AUTOMATIC FORMING PRESSING MACHINE - Image 2
FULLY AUTOMATIC FORMING PRESSING MACHINE - Image 3
FULLY AUTOMATIC FORMING PRESSING MACHINE - Image 4

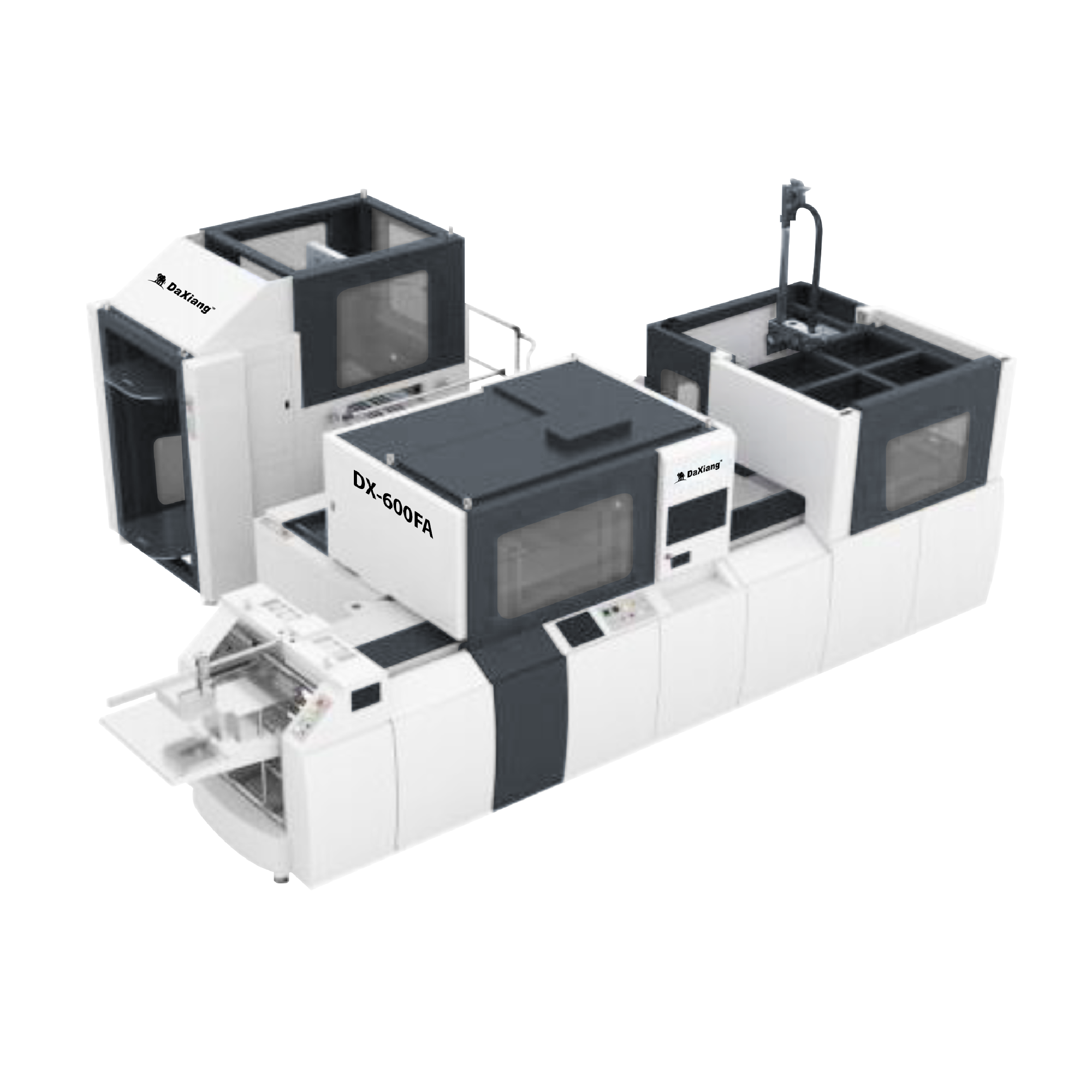

FULLY AUTOMATIC FORMING PRESSING MACHINE

PT. Dwimaputra Mesin Sejati, distributor dan layanan purna jual berbagai mesin berkualitas.

Tersedia Ukuran:

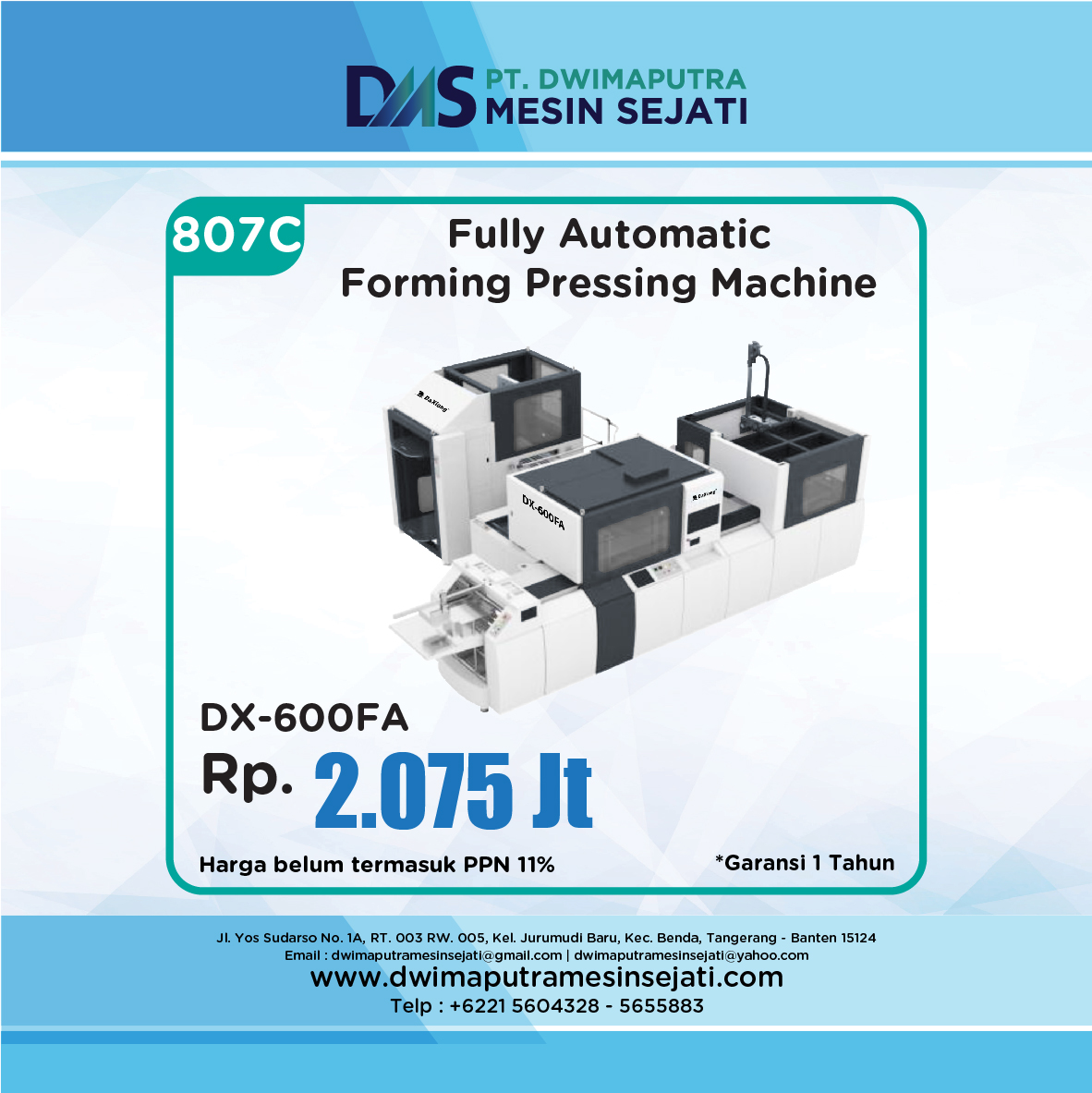

  • DX-600FA

Hubungi kami untuk informasi lebih lanjut

Category:

Description

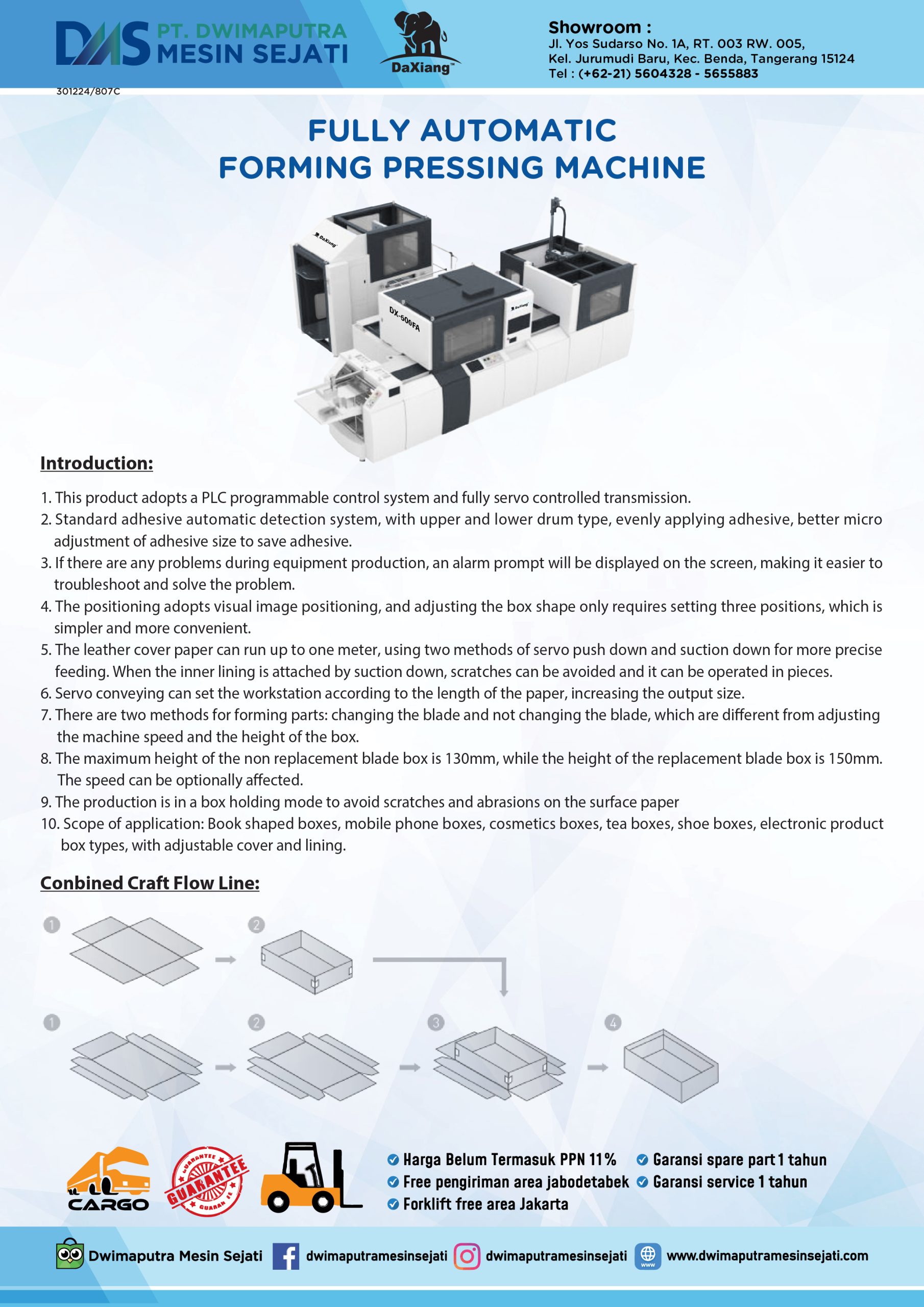

INTRODUCTION & TECHNICAL SPECIFICATION

  1. This product adopts a PLC programmable control system and fully servo controlled transmission.
  2. Standard adhesive automatic detection system, with upper and lower drum type, evenly applying adhesive, better micro adjustment of adhesive size to save adhesive.
  3. If there are any problems during equipment production, an alarm prompt will be displayed on the screen, making it easier to troubleshoot and solve the problem.
  4. The positioning adopts visual image positioning, and adjusting the box shape only requires setting three positions, which is simpler and more convenient.
  5. The leather cover paper can run up to one meter, using two methods of servo push down and suction down for more precise feeding. When the inner lining is attached by suction down, scratches can be avoided and it can be operated in pieces.
  6. Servo conveying can set the workstation according to the length of the paper, increasing the output size.
  7. There are two methods for forming parts: changing the blade and not changing the blade, which are different from adjusting the machine speed and the height of the box.
  8. The maximum height of the non replacement blade box is 130mm, while the height of the replacement blade box is 150mm. The speed can be optionally affected.
  9. The production is in a box holding mode to avoid scratches and abrasions on the surface paper
  10. Scope of application: Book shaped boxes, mobile phone boxes, cosmetics boxes, tea boxes, shoe boxes, electronic product box types, with adjustable cover and lining.

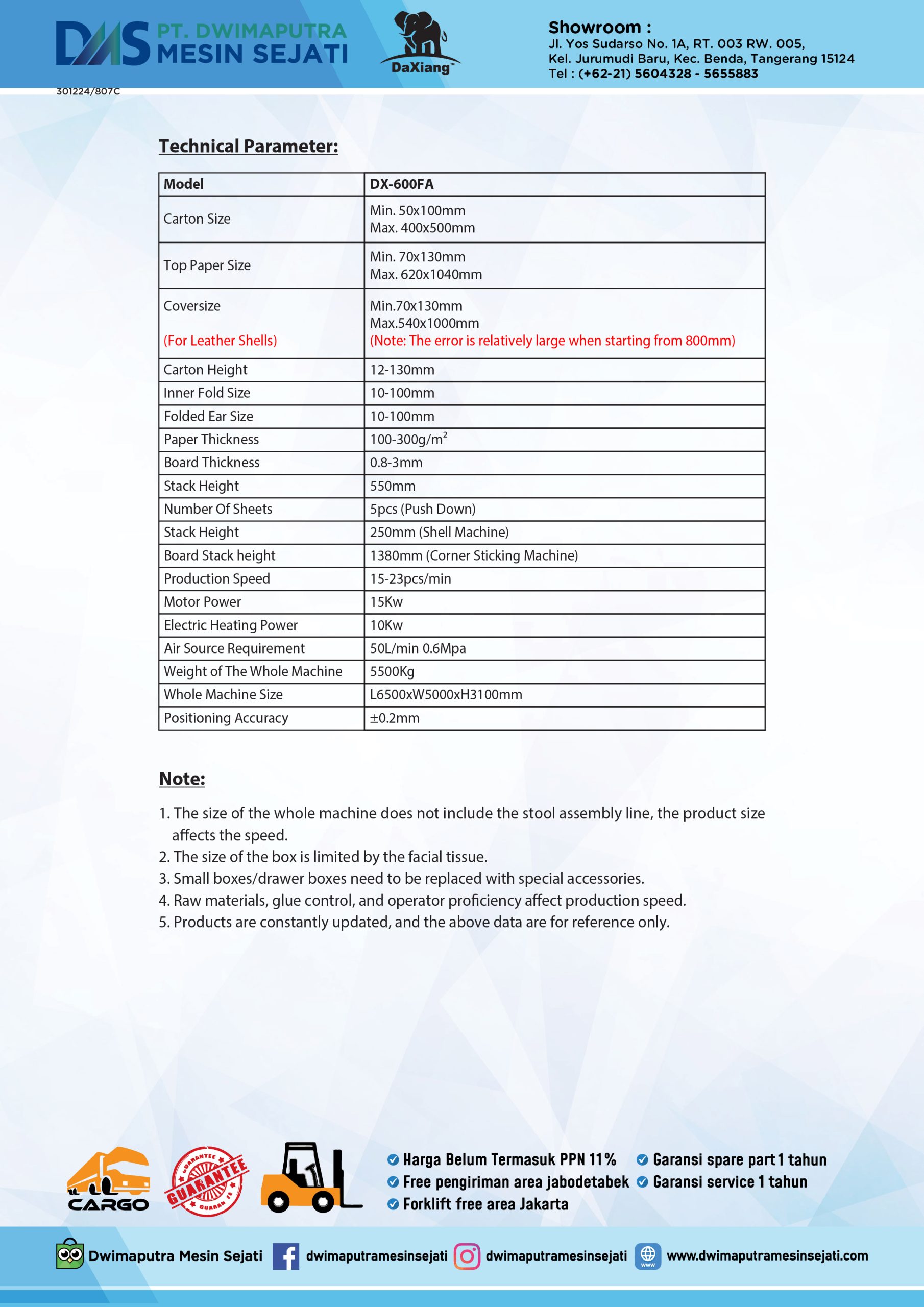

Model DX-600FA
Carton Size Min. 50x100mm

Max. 400x500mm
Top Paper Size Min. 70x130mm

Max. 620x1040mm
Coversize

(For Leather Shells)

 Min.70x130mm

Max.540x1000mm

(Note: The error is relatively large when starting from 800mm)
Carton Height 12-130mm
Inner Fold Size 10-100mm
Folded Ear Size 10-100mm
Paper Thickness 100-300g/m²
Board Thickness 0.8-3mm
Stack Height 550mm
Number Of Sheets 5pcs (Push Down)
Stack Height 250mm (Shell Machine)
Board Stack height 1380mm (Corner Sticking Machine)
Production Speed 15-23pcs/min
Motor Power 15Kw
Electric Heating Power 10Kw
Air Source Requirement 50L/min 0.6Mpa
Weight of The Whole Machine 5500Kg
Whole Machine Size L6500×W5000xH3100mm
Positioning Accuracy ±0.2mm

Note:

  1. The size of the whole machine does not include the stool assembly line, the product size affects the speed.
  2. The size of the box is limited by the facial tissue.
  3. Small boxes/drawer boxes need to be replaced with special accessories.
  4. Raw materials, glue control, and operator proficiency affect production speed.
  5. Products are constantly updated, and the above data are for reference only.
