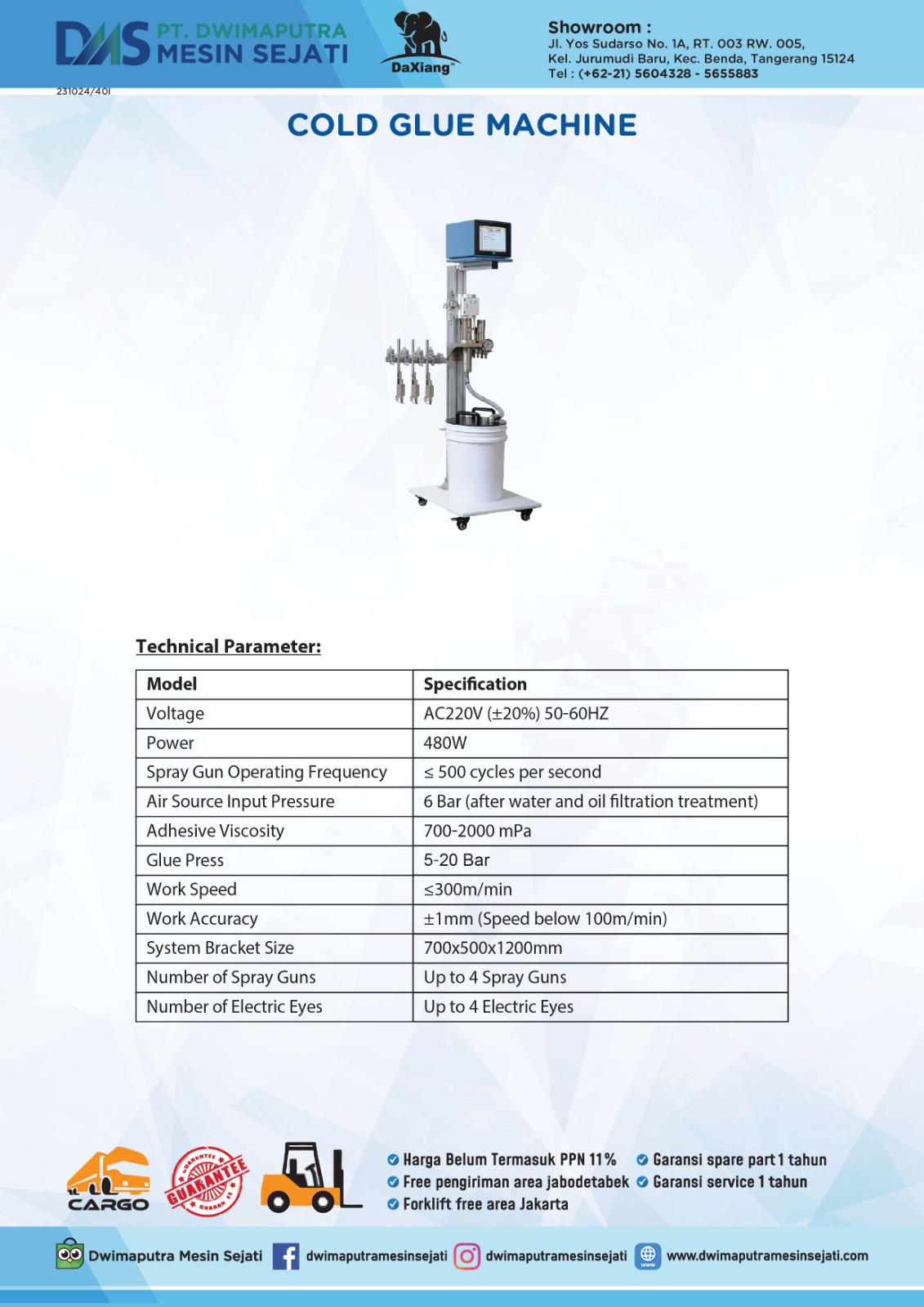

INTRODUCTION & TECHNICAL SPECIFICATION
| Model | Specification |
| Voltage | AC220V (±20%) 50-60Hz |
| Power | 480W |
| Spray Gun Operating Frequency | ≤ 500 cycles per second |
| Air Source Input Pressure | 6 Bar (after water and oil filtration treatment) |
| Adhesive Viscosity | 700-2000 mPa |
| Glue Press | 5-20 Bar |
| Work Speed | ≤ 300m/min |
| Work Accuracy | ± 1mm (Speed below 100m/min) |
| System Bracket Size | 700x500x1200mm |
| Number of Spray Guns | Up to 4 spray guns |
| Number of Electric Eyes | Up to 4 electric eyes |
