Description
INTRODUCTION & TECHNICAL SPECIFICATION
Applicable industries: woodworking and furniture decoration industry, wooden handicraft processing, electronic products industry, musical instrument industry, EVA processing, longevity processing, PE, PC cutting, advertising, and other industries.
Applicable materials: plexiglass, PVC board, KT board, wood board, synthetic board, acrylic, insulating board and other materials

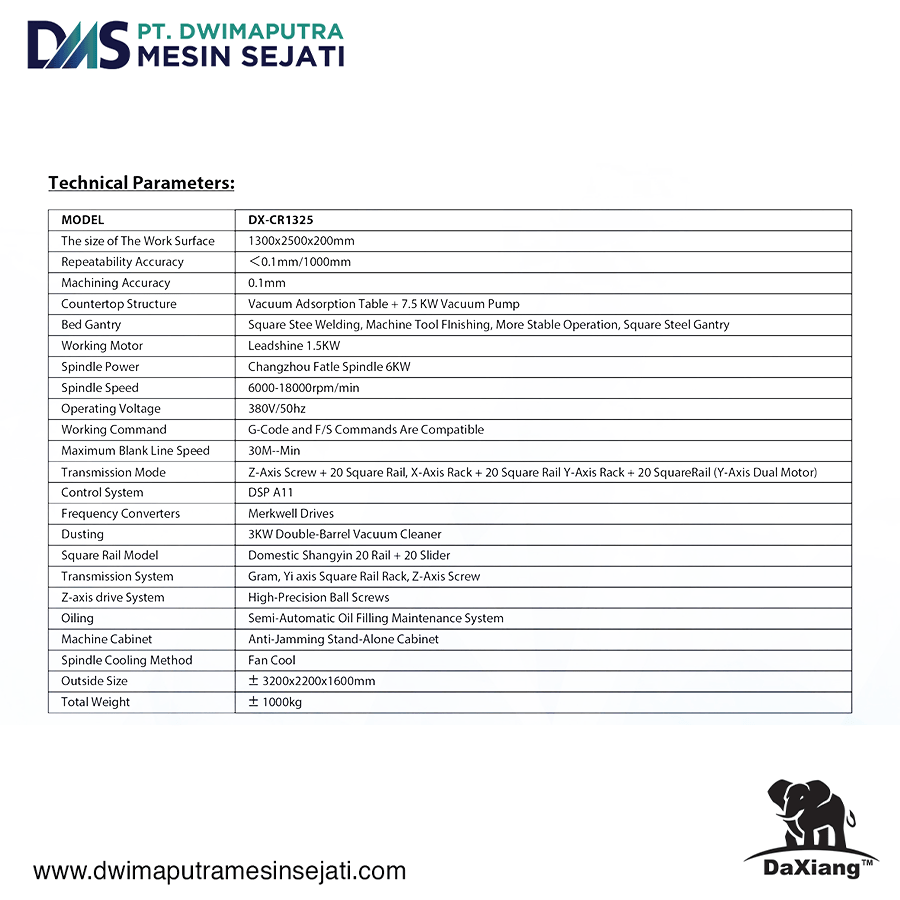

| MODEL | DX-CR1325 |
| The size of The Work Surface | 1300x2500x200mm |
| Repeatability Accuracy | <0.1mm/1000mm |
| Machining Accuracy | 0.1mm |
| Countertop Structure | Vacuum Adsorption Table + 7.5 KW Vacuum Pump |
| Bed Gantry | Square Stee Welding, Machine Tool Finishing, More Stable Operation, Square Steel Gantry |
| Working Motor | Leadshine 1.5KW |
| Spindle Power | Changzhou Fatle Spindle 6KW |
| Spindle Speed | 6000-18000rpm/min |
| Operating Voltage | 380V/50hz |
| Working Command | G-Code and F/S Commands Are Compatible |
| Maximum Blank Line Speed | 30M–Min |
| Transmission Mode | Z-Axis Screw +20 Square Rail, X-Axis Rack +20 Square Rail Y-Axis Rack + 20 SquareRail (Y-Axis Dual Motor) |
| Control System | DSP A11 |
| Frequency Converters | Merkwell Drives |
