Description
INTRODUCTION & TECHNICAL SPECIFICATION

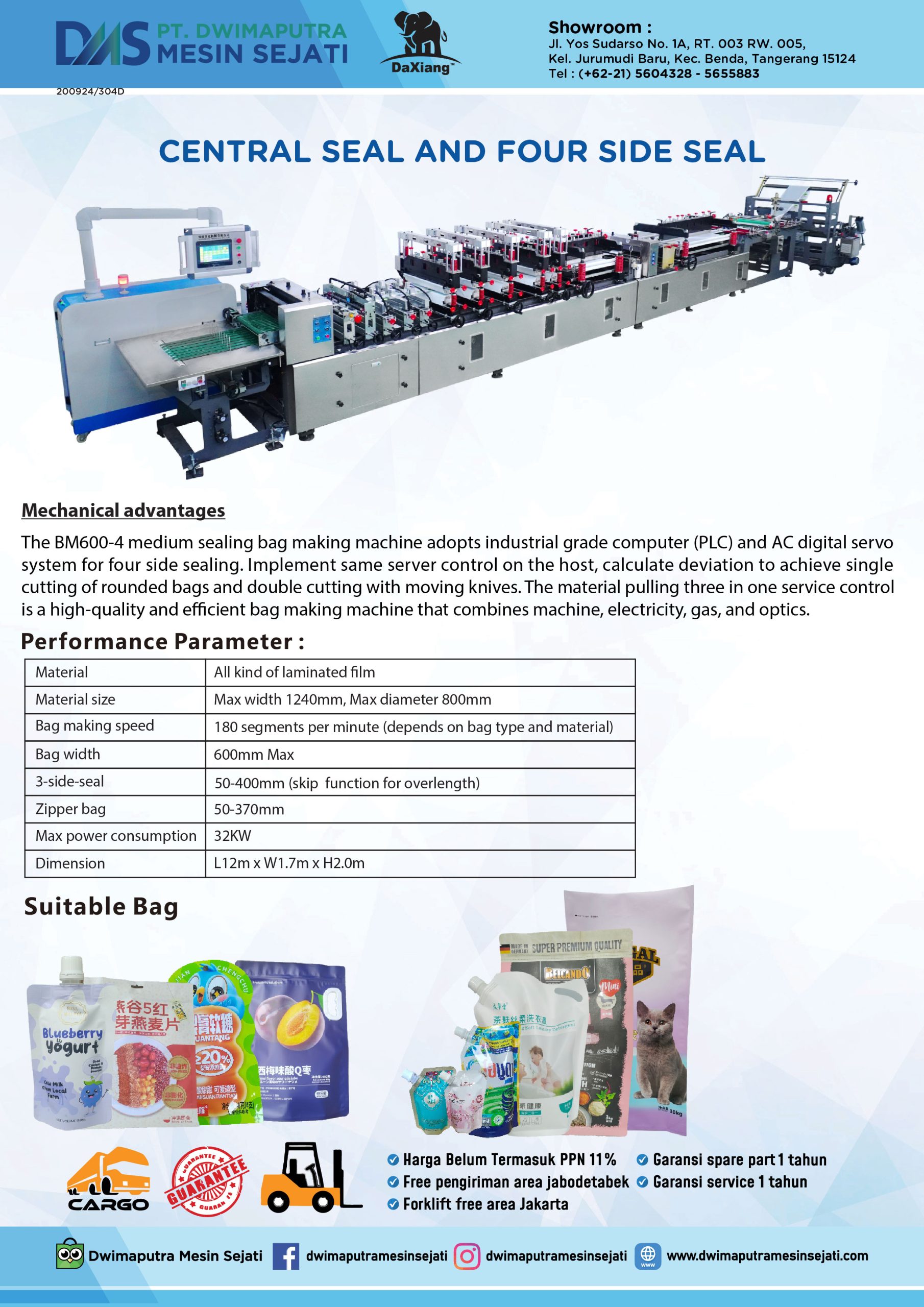

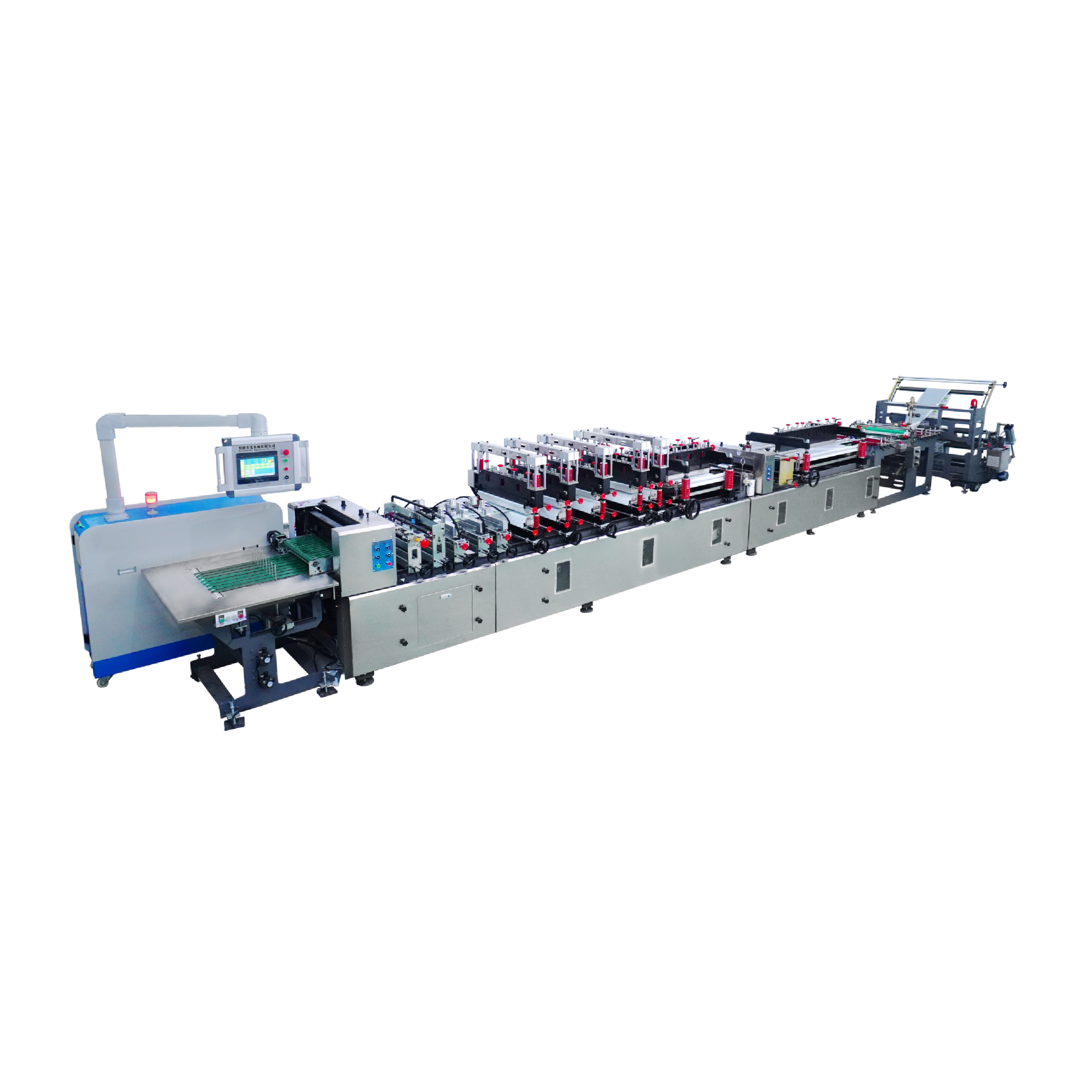

The BM600-4 medium sealing bag making machine adopts industrial grade computer (PLC) and AC digital servo system for four side sealing. Implement same server control on the host, calculate deviation to achieve single cutting of rounded bags and double cutting with moving knives. The material pulling three in one service control is a high-quality and efficient bag making machine that combines machine, electricity, gas, and optics.
| Material | All kind of laminated film |
| Material size | Max width 1240mm, Max diameter 800mm |
| Bag making speed | 180 segments per minute (depends on bag type and material) |
| Bag width | 600mm Max |
| 3-side-seal | 50-400mm (skip function for overlength) |
| Zipper bag | 50-370mm |
| Max power consumption | 32KW |
| Dimension | L12m x W1.7m x H2.0m |
