Description

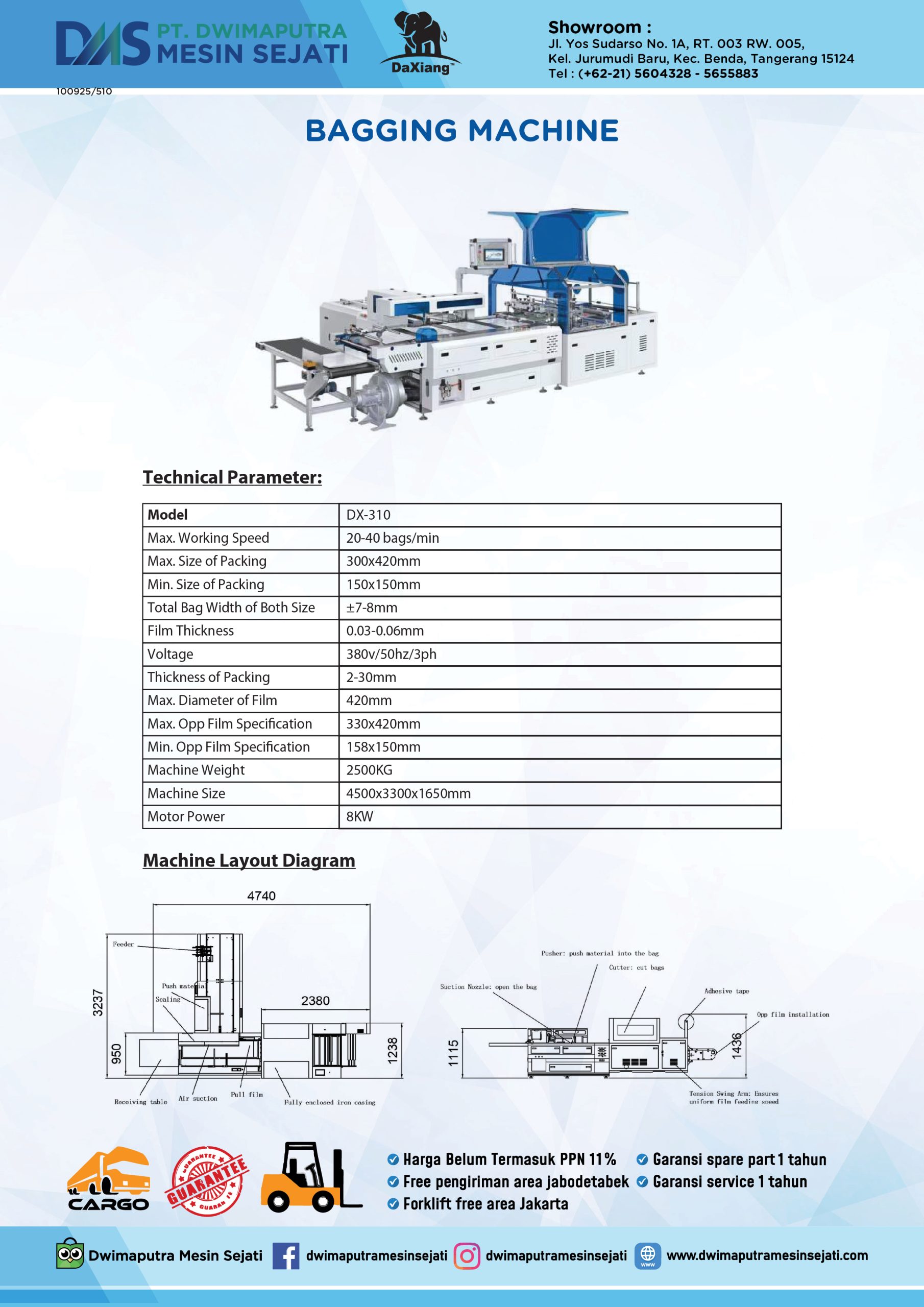

INTRODUCTION & TECHNICAL SPECIFICATION
| Model | DX-310 |
| Max. Working Speed | 20-40 bags/min |
| Max. Size of Packing | 300x420mm |
| Min. Size of Packing | 150x150mm |
| Total Bag Width of Both Size | ±7-8mm |
| Film Thickness | 0.03-0.06mm |
| Voltage | 380v/50hz/3ph |
| Thickness of Packing | 2-30mm |
| Max. Diameter of Film | 420mm |
| Max. Opp Film Specification | 330x420mm |
| Min. Opp Film Specification | 158x150mm |
| Machine Weight | 2500KG |
| Machine Size | 4500x3300x1650mm |
| Motor Power | 8KW |
