Description

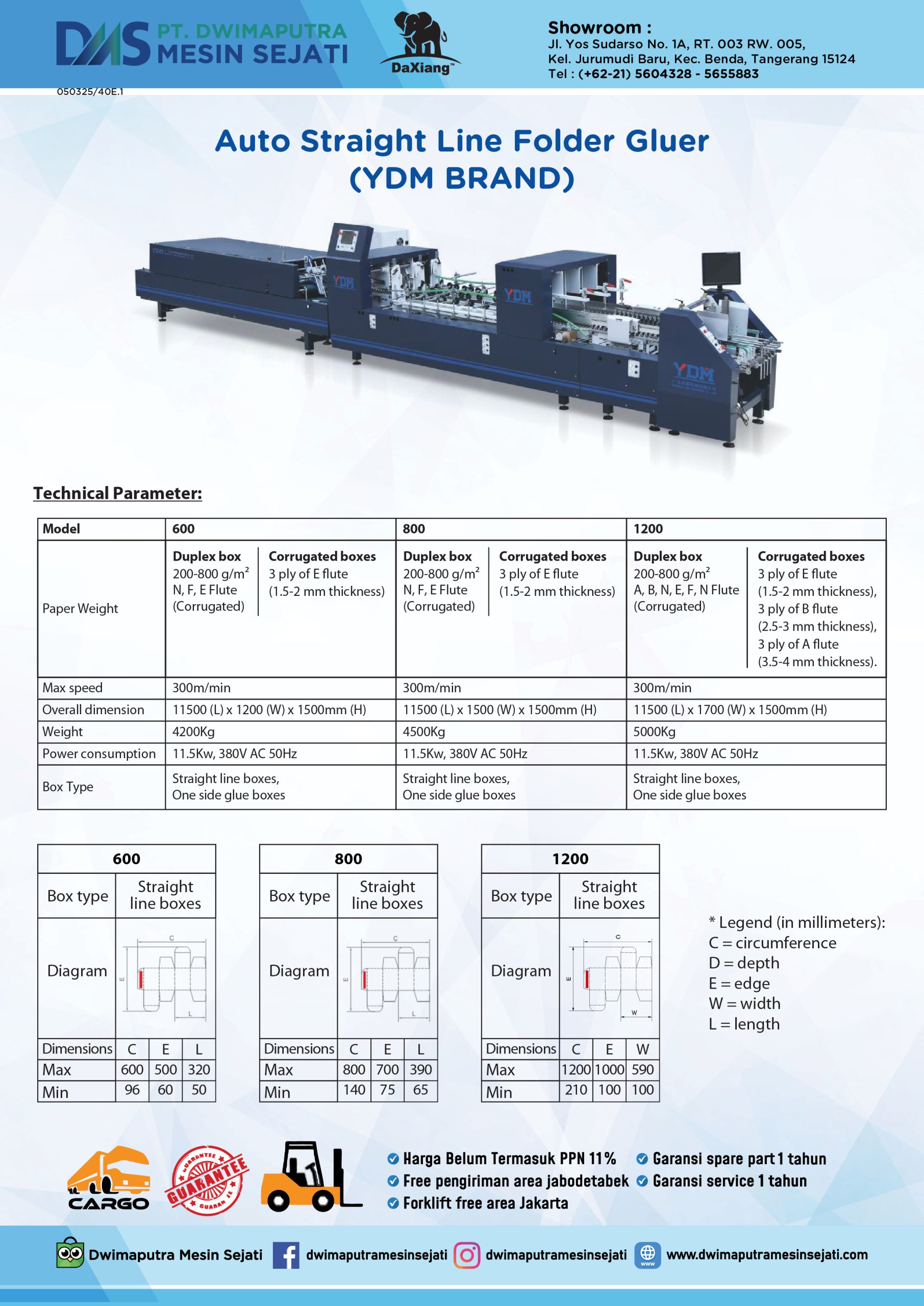

INTRODUCTION & TECHNICAL SPECIFICATION
| Model | 600 | 800 | 1200 | |||
| Paper Weight | Duplex box
200 – 800g /m2 N, F, E Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness) |
Duplex box
200 – 800g /m2 N, F, E Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness) |
Duplex box
200 – 800g /m2 A, B, N, E, F, N Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness), 3 ply of B flute (2.5-3 mm thickness), 3 ply of A flute (3.5-4 mm thickness). |
| Max speed | 300m/min | 300m/min | 300m/min | |||
| Overall dimension | 11500(L) x 1200(W) x 1500mm(H) | 11500(L) x 1500(W) x 1500mm(H) | 11500(L) x 1700(W) x 1500mm (H) | |||
| Weight | 4200Kg | 4500Kg | 5000Kg | |||
| Power consumption | 11.5Kw, 380V AC 50Hz | 11.5Kw, 380V AC 50Hz | 11.5Kw, 380V AC 50Hz | |||
| Box Type | Straight line boxes, One side glue boxes | Straight line boxes, One side glue boxes | Straight line boxes, One side glue boxes | |||

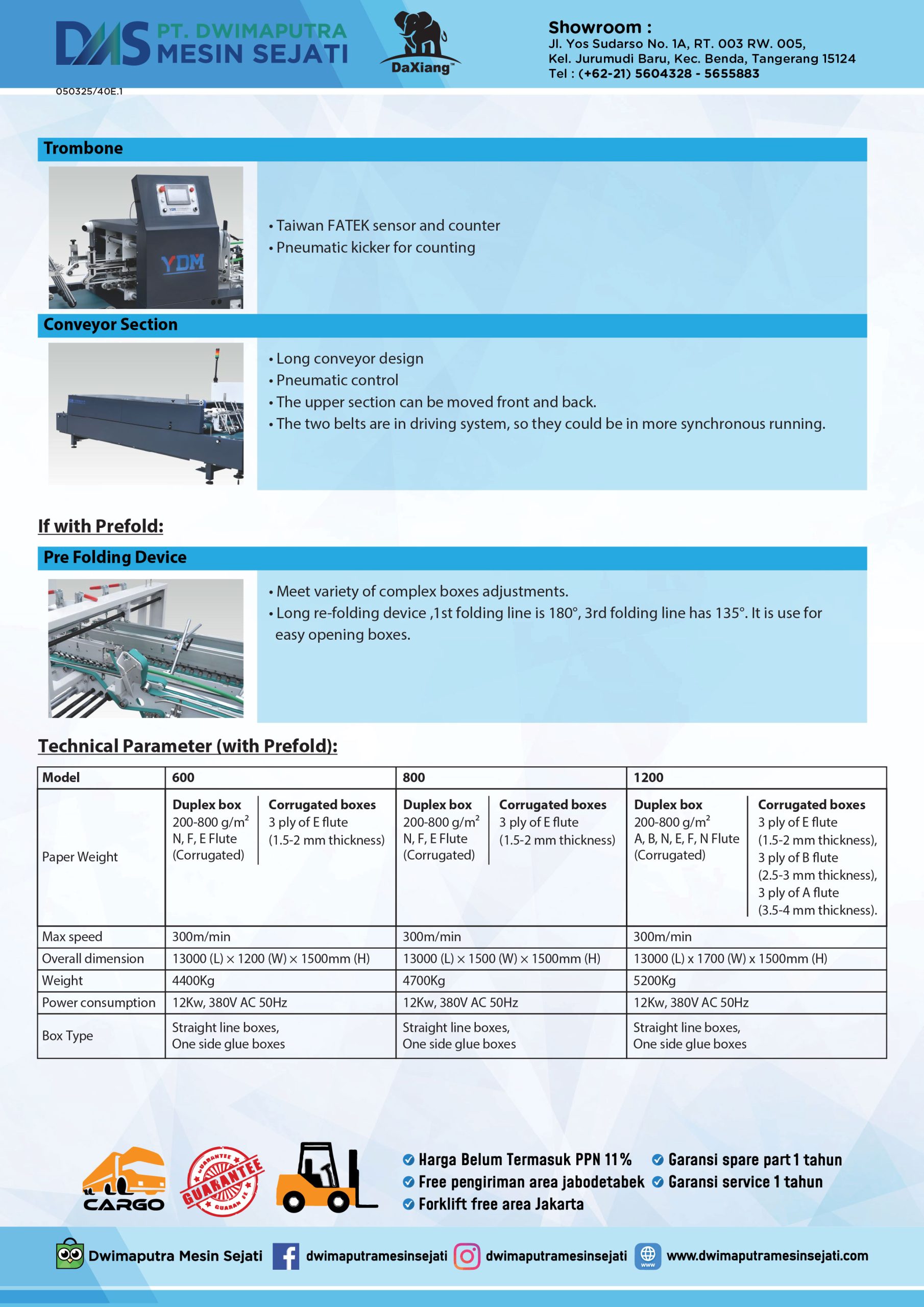

Technical Parameter (with Prefold):
| Model | 600 | 800 | 1200 | |||
| Paper Weight | Duplex box
200 – 800g /m2 N, F, E Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness) |
Duplex box
200 – 800g /m2 N, F, E Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness) |
Duplex box
200 – 800g /m2 A, B, N, E, F, N Flute (Corrugated) |
Corrugated boxes
3 ply of E flute (1.5-2 mm thickness), 3 ply of B flute (2.5-3 mm thickness), 3 ply of A flute (3.5-4 mm thickness). |
| Max speed | 300m/min | 300m/min | 300m/min | |||
| Overall dimension | 13000 (L) x 1200 (W) x 1500mm (H) | 13000 (L) x 1500 (W) x 1500mm (H) | 13000 (L) x 1700 (W) x 1500mm (H) | |||
| Weight | 4400Kg | 4700Kg | 5200Kg | |||
| Power consumption | 12Kw, 380V AC 50Hz | 12Kw, 380V AC 50Hz | 12Kw, 380V AC 50Hz | |||
| Box Type | Straight line boxes, One side glue boxes | Straight line boxes, One side glue boxes | Straight line boxes, One side glue boxes | |||
