Description

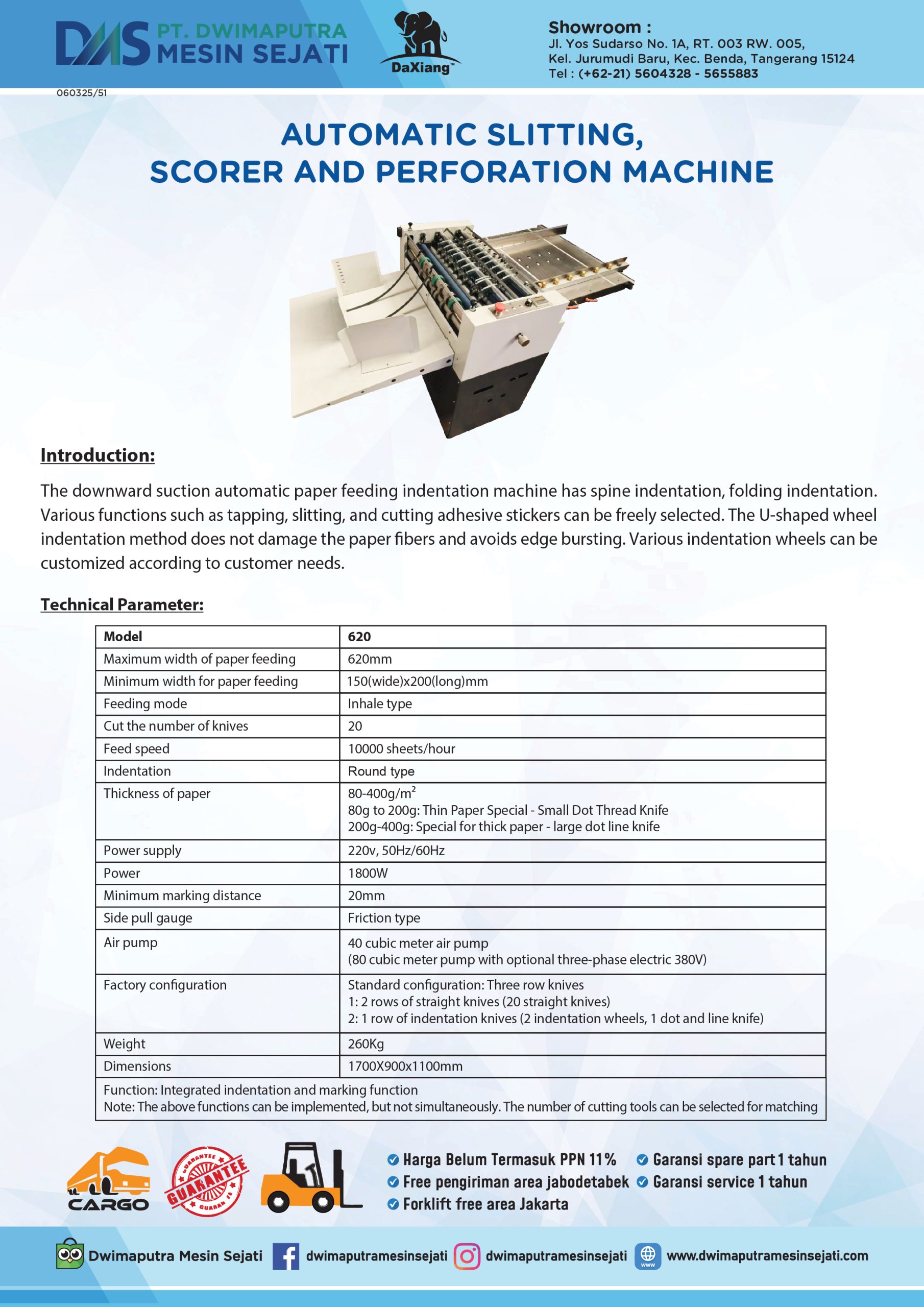

INTRODUCTION & TECHNICAL SPECIFICATION

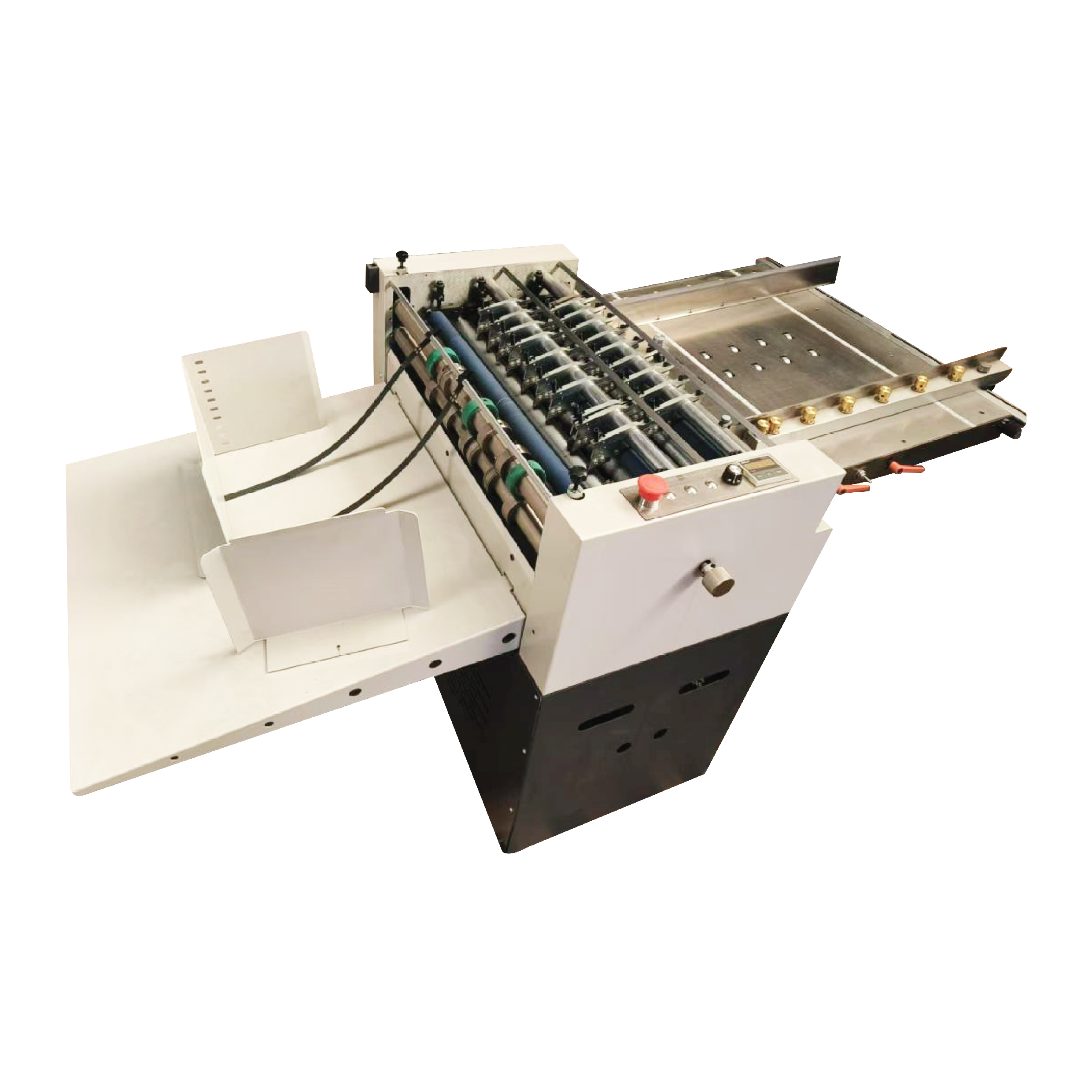

The downward suction automatic paper feeding indentation machine has spine indentation, folding indentation. Various functions such as tapping, slitting, and cutting adhesive stickers can be freely selected. The U-shaped wheel indentation method does not damage the paper fibers and avoids edge bursting. Various indentation wheels can be customized according to customer needs.
| Model | 620 |
| Maximum width of paper feeding | 620mm |
| Minimum width for paper feeding | 150(wide)x200(long)mm |
| Feeding mode | Inhale type |
| Cut the number of knives | 20 |
| Feed speed | 10000 sheets/hour |
| Indentation | Round type |
| Thickness of paper | 80-400g/m²
80g to 200g: Thin Paper Special – Small Dot Thread Knife 200g-400g: Special for thick paper – large dot line knife |
| Power supply | 220v, 50Hz/60Hz |
| Power | 1800W |
| Minimum marking distance | 20mm |
| Side pull gauge | Friction type |
| Air pump | 40 cubic meter air pump (80 cubic meter pump with optional three-phase electric 380V) |
| Factory configuration | Standard configuration: Three row knives
1: 2 rows of straight knives (20 straight knives) 2: 1 row of indentation knives (2 indentation wheels, 1 dot and line knife) |
| Weight | 260Kg |
| Dimensions | 1700X900x1100mm |
| Function: Integrated indentation and marking function Note: The above functions can be implemented, but not simultaneously. The number of cutting tools can be selected for matching | |
