INTRODUCTION & TECHNICAL SPECIFICATION

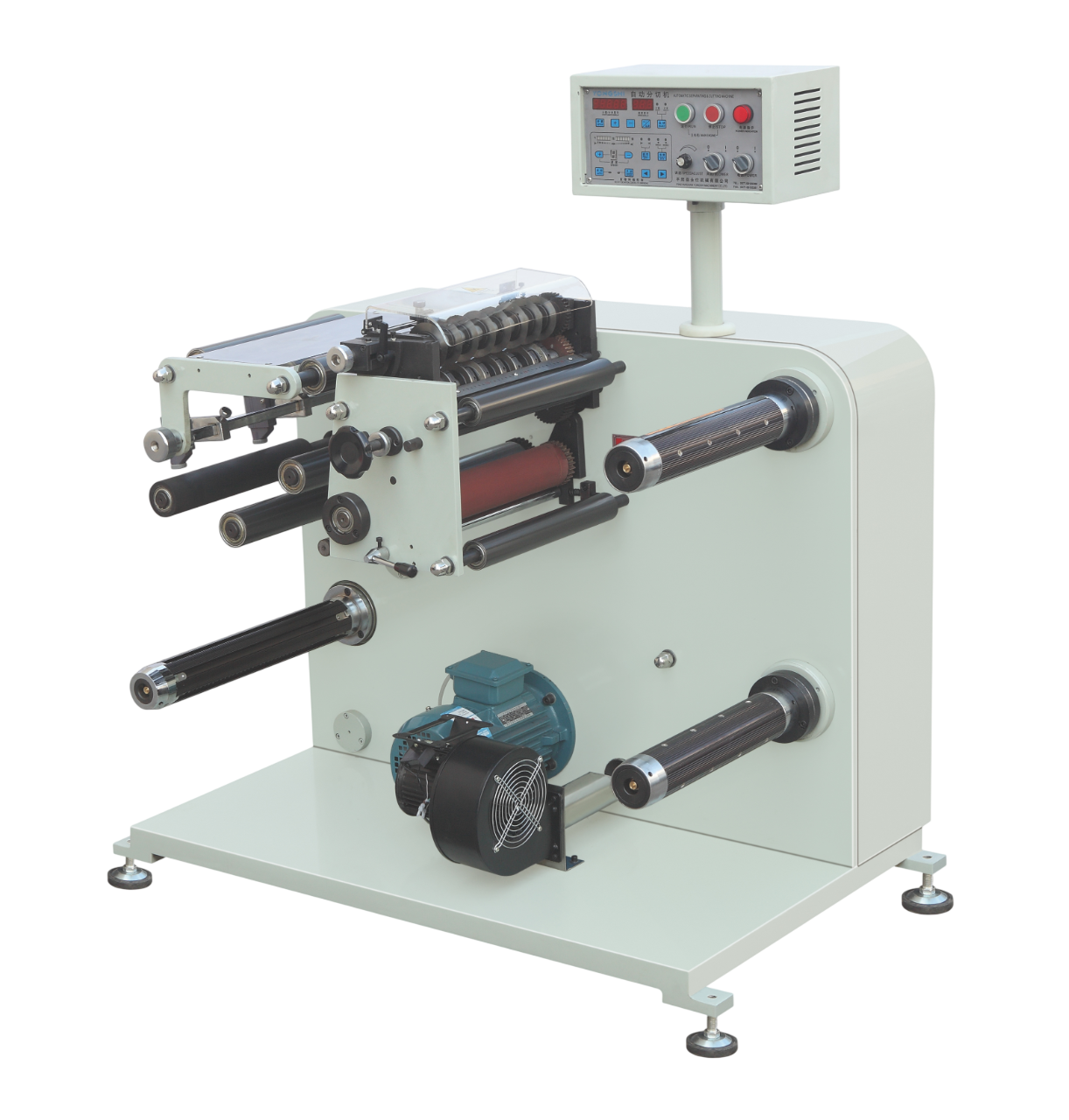

DXAS-350/450 automatic slitting machine is a supporting product of automatic die cutting machine, which is suitable for narrow paper slitting. It has automatic meter setting length, automatic stop, automatic correction and other functions. The machine has the characteristics of compact structure, fast speed, high efficiency, accurate cutting, simple operation and smooth running.
| Model | DXAS-350 | DXAS-450 |
| Slitting Speed | 120m/min | 120m/min |
| Max. Width | 350mm | 450mm |
| Max. Unwinding Diameter | 500mm | 500mm |
| Max. Rewinding Diameter | 500mm | 500mm |
| Min. Slitting Width | 16mm | 16mm |
| Max. Slitting Width | 310mm | 410mm |
| Accuracy Rate | ±0.10mm | ±0.10mm |
| Voltage | 220V | 220V |
| Main Motor Power | 2Kw | 2Kw |
| Weight | 550Kg | 600Kg |
| Dimension | 1240x965x1300mm | 1240x1065x1300mm |
