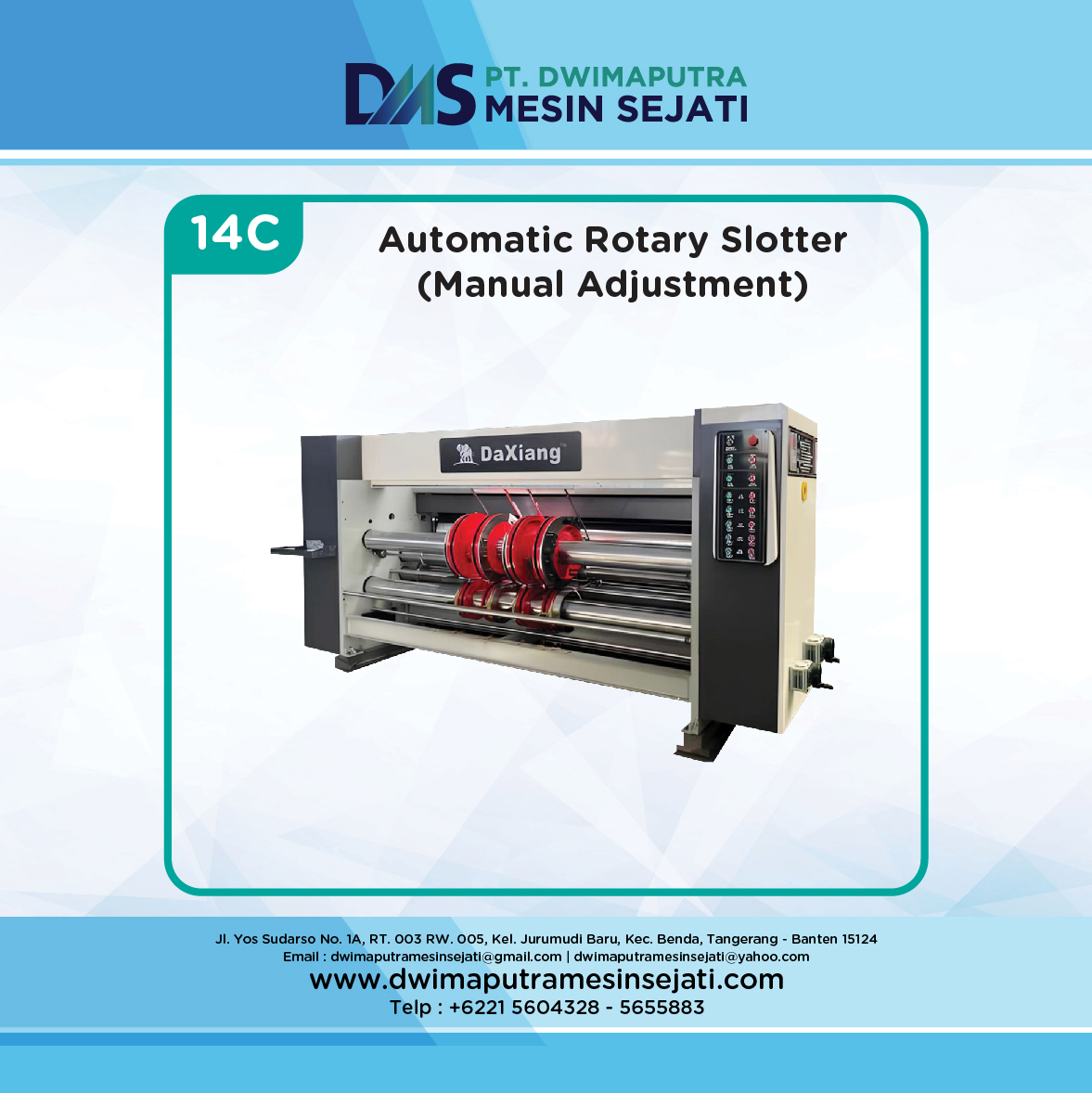

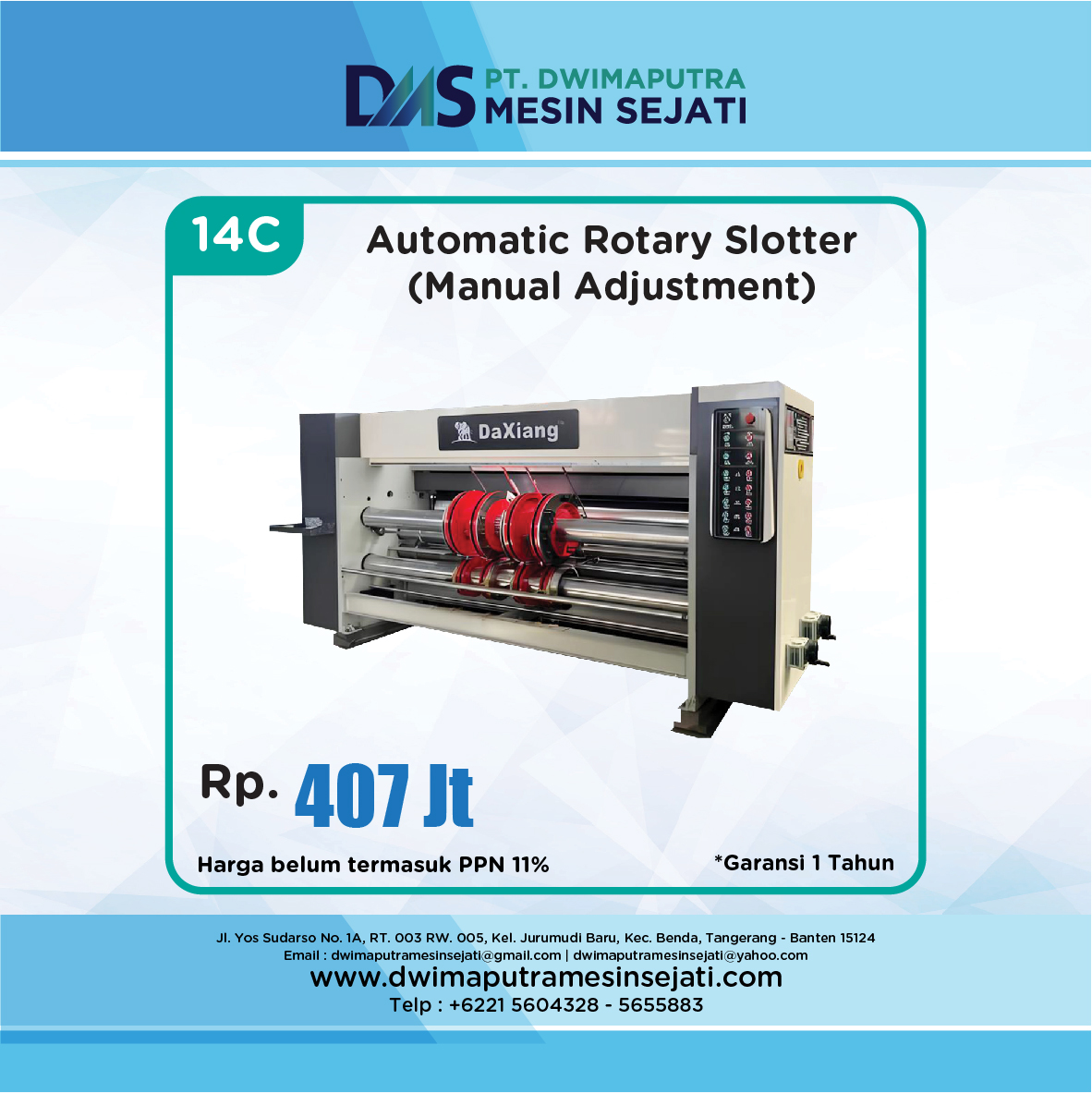

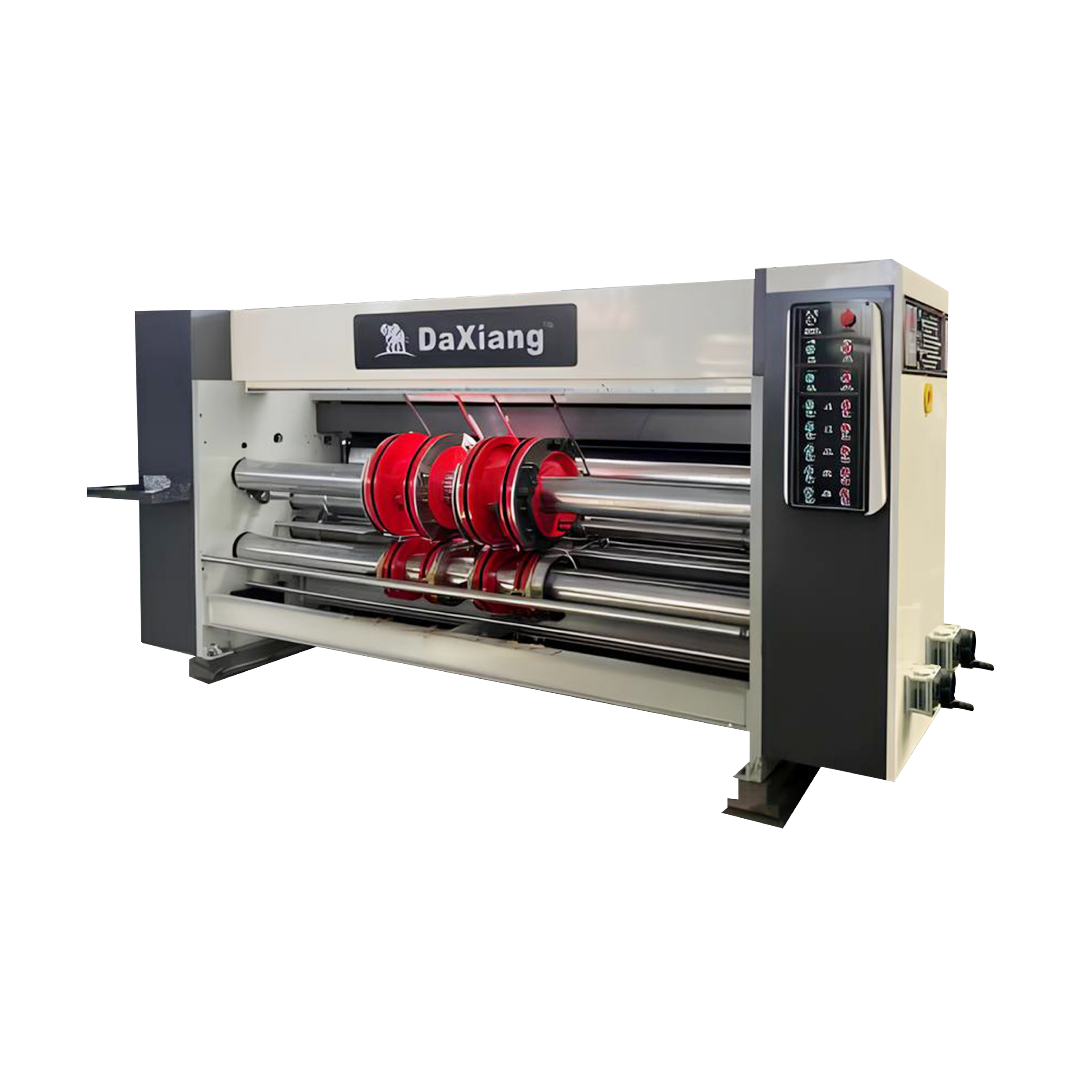

AUTOMATIC ROTARY SLOTTER (MANUAL ADJUSTMENT)

Description

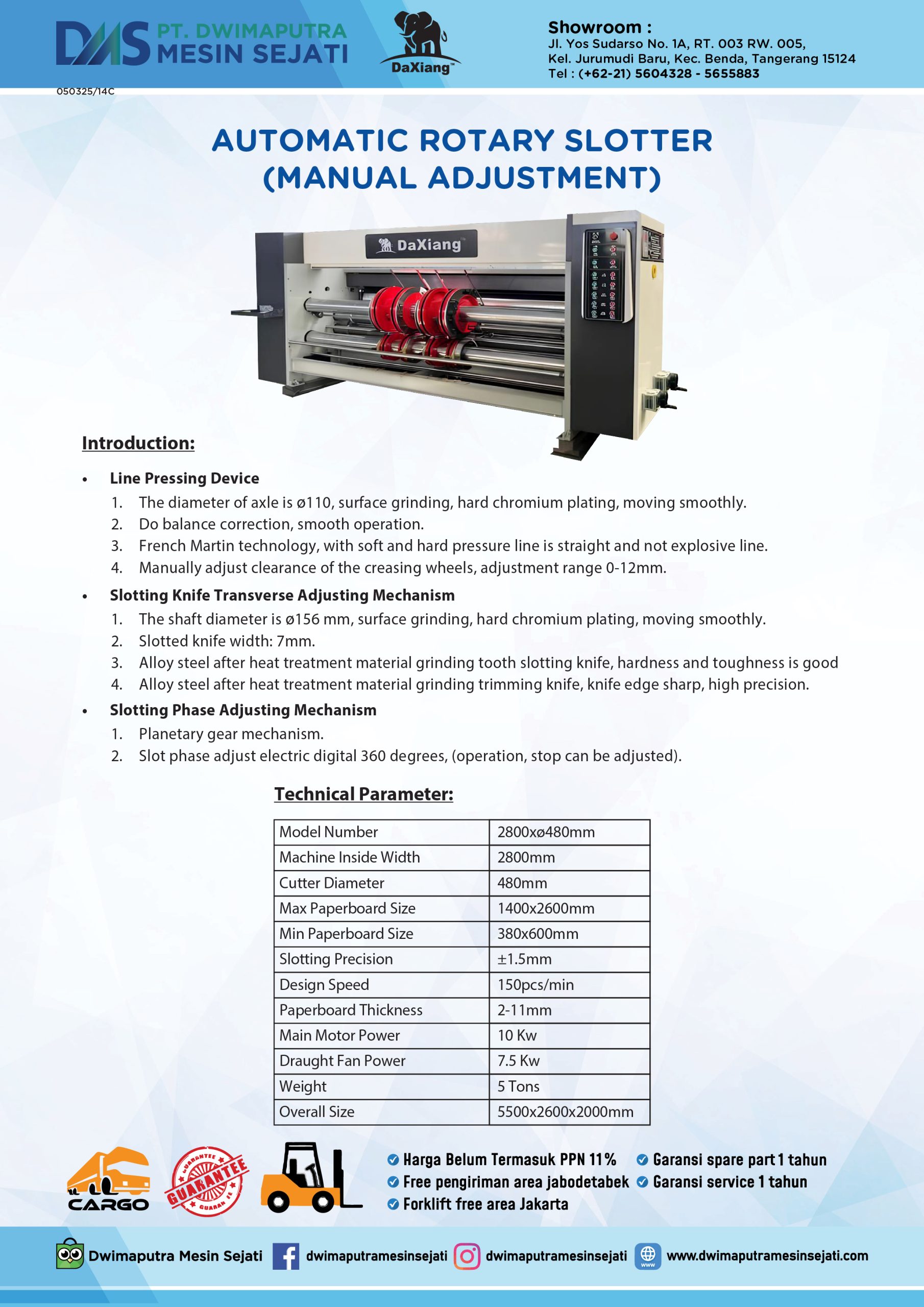

INTRODUCTION & TECHNICAL SPECIFICATION

• Line Pressing Device

1. The diameter of axle is ø110, surface grinding, hard chromium plating, moving smoothly.
2. Do balance correction, smooth operation.
3. French Martin technology, with soft and hard pressure line is straight and not explosive line.
4. Manually adjust clearance of the creasing wheels, adjustment range 0-12mm.

• Slotting Knife Transverse Adjusting Mechanism

1. The shaft diameter is ø156 mm, surface grinding, hard chromium plating, moving smoothly.
2. Slotted knife width: 7mm.
3. Alloy steel after heat treatment material grinding, tooth slotting knife, hardness and toughness is good
4. Alloy steel after heat treatment material grinding trimming knife, knife edge sharp, high precision.

• Slotting Phase Adjusting Mechanism

1. Planetary gear mechanism.
2. Slot phase adjust electric digital 360 degrees, (operation, stop can be adjusted).
