Description

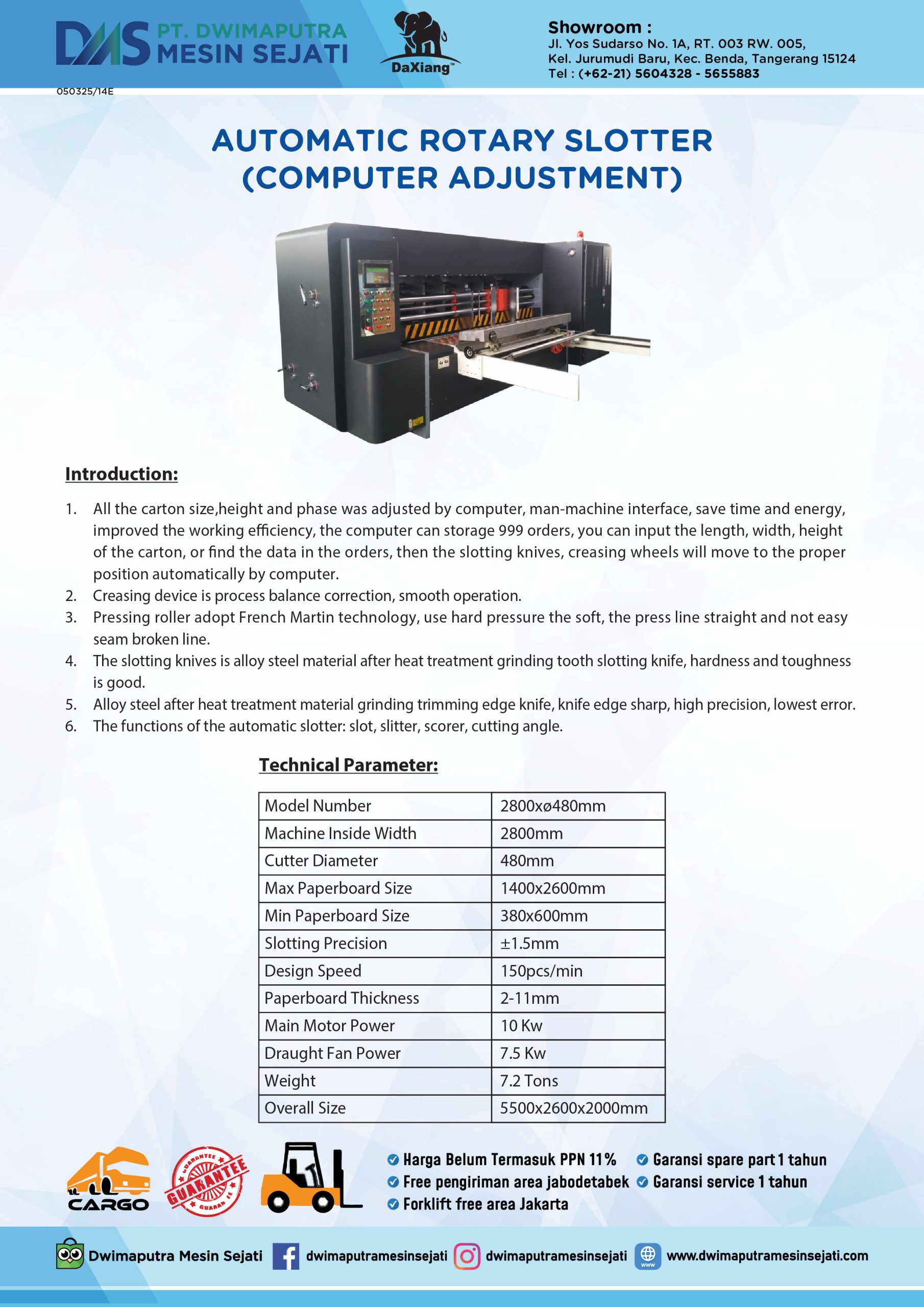

INTRODUCTION & TECHNICAL SPECIFICATION

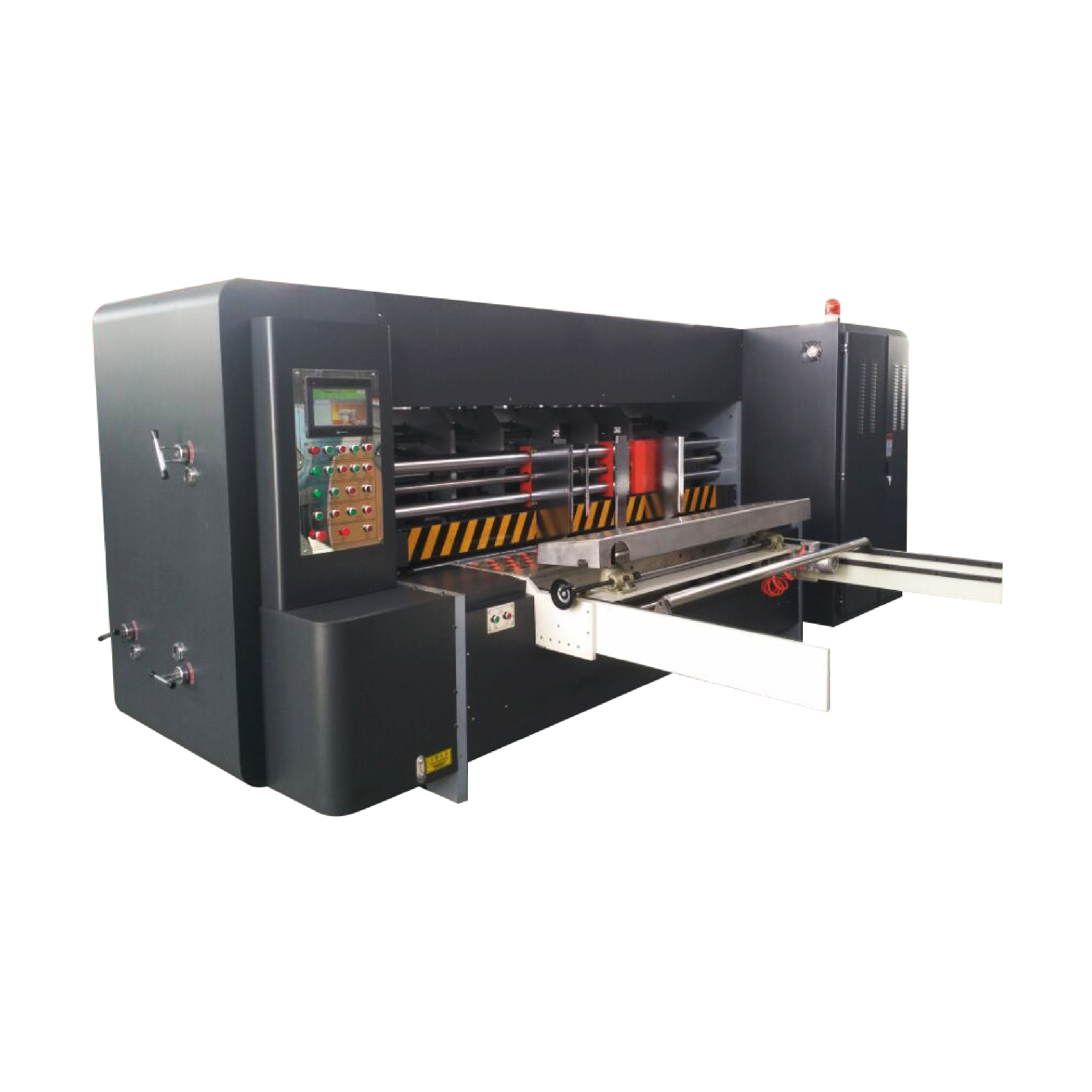

Introduction:
- All the carton size, height and phase was adjusted by computer, man-machine interface, save time and energy, improved the working efficiency, the computer can storage 999 orders, you can input the length, width, height of the carton, or find the data in the orders, then the slotting knives, creasing wheels will move to the proper position automatically by computer.
- Creasing device is process balance correction, smooth operation.
- Pressing roller adopt French Martin technology, use hard pressure the soft, the press line straight and not easy seam broken line.
- The slotting knives is alloy steel material after heat treatment grinding tooth slotting knife, hardness and toughness. is good.
- Alloy steel after heat treatment material grinding trimming edge knife, knife edge sharp, high precision, lowest error. 6. The functions of the automatic slotter: slot, slitter, scorer, cutting angle.
| Model Number | 2800xØ480mm |
| Machine Inside Width | 2800mm |
| Cutter Diameter | 480mm |
| Max Paperboard Size | 1400x2600mm |
| Min Paperboard Size | 380x600mm |
| Slotting Precision | ±1.5mm |
| Design Speed | 150pcs/min |
| Paperboard Thickness | 2-11mm |
| Main Motor Power | 10 Kw |
| Draught Fan Power | 7.5 Kw |
| Weight | 7.2 Tons |
| Overall Size | 5500x2600x2000mm |
