Description
INTRODUCTION & TECHNICAL SPECIFICATION
- LOCK BOTTOM

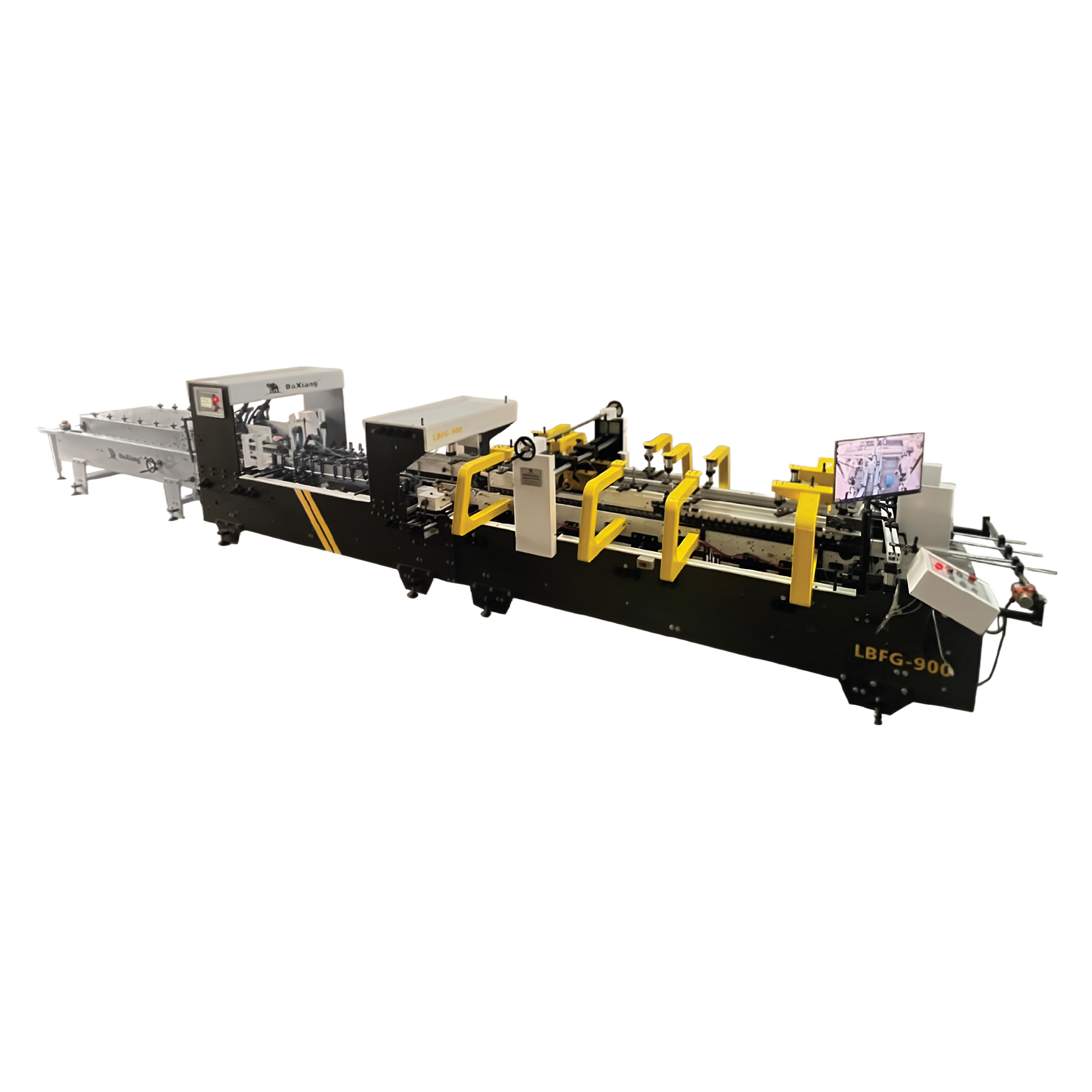

Feeder, main motor and trombone are driven by servo motors. All boards are intelligent remote controlled. Printing quality & defect inspection and gluing all in one machine, ensure product quality. Accurately eliminate detected defective products at high speed without stopping the machine.
| Model | 680 | 880 | 1100 | |||
| Paper Thickness | 200-800 g/m² | 200-800 g/m² | 200-800 g/m² | |||
| Paper Material | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | |||
| Box Type | Straight Line Box
Max: 680x650mm Min: 60x60mm |
Lock Bottom Box
Max: 600x650mm Min: 180x65mm |
Straight Line Box
Max: 880x780mm Min: 210x100mm |
Lock Bottom Box
Max: 800x780mm Min: 210x120mm |
Straight Line Box
Max: 1100x800mm Min: 210x100mm |
Lock Bottom Box
Max: 1050x800mm Min: 210x100mm |
| Machine Speed | Max. 400m/min | Max. 400m/min | Max. 400m/min | |||
| Feeding Method | Automatic and continuous paper feeding | Automatic and continuous paper feeding | Automatic and continuous paper feeding | |||
| Machine Size (LxWxH) | L14800 x W1300 x H1450mm | L15600 x W1450x H1450mm | L15600 x W1700 x H1450mm | |||
| Machine Weight | ≤6.5T | ≤8T | ≤8.5T | |||
| Power Consumption | 21.5KW | 26KW | 27KW | |||
- 4/6 CORNER
| Model | 46-880 | 46-1100 | ||
| Paper Thickness | 200-800 g/m² | 200-800 g/m² | ||
| Paper Material | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | ||
| Box Type | Straight Line Box
Max:880x780mm Min: 210x100mm |
Four Corner Box
Max: 750x750mm Min: 190x180mm |
Straight Line Box
Max:1100x800mm Min: 210x100mm |
Four Corner Box
Max: 1000x800mm Min: 190x180mm |
| Lock Bottom Box
Max: 800x780mm Min: 210x120mm |
Six Corner Box
Max: 750x750mm Min: 290x180mm |
Lock Bottom Box
Max: 1050x800mm Min: 210x100mm |
Six Corner Box
Max: 1000x800mm Min: 290x180mm |
|
| Machine Speed | Max. 400m/min | Max. 400m/min | ||
| Feeding Method | Automatic and continuous paper feeding | Automatic and continuous paper feeding | ||
| Machine Size (LxWxH) | L15600xW1450xH1500mm | L15600 x W1700 x H1500mm | ||
| Machine Weight | ≤8.3T | ≤8.5T | ||
| Power Consumption | 30KW | 30KW | ||
