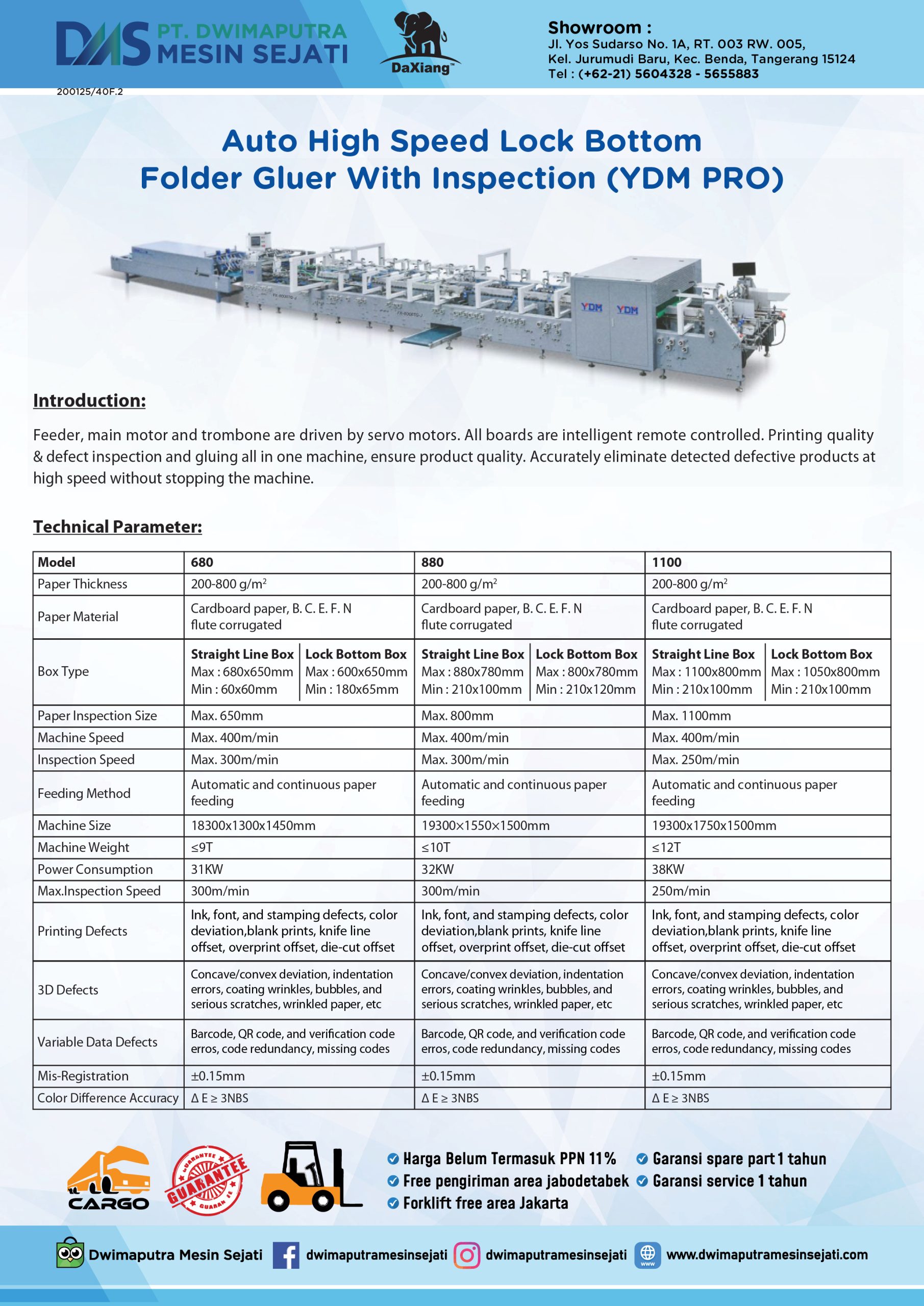

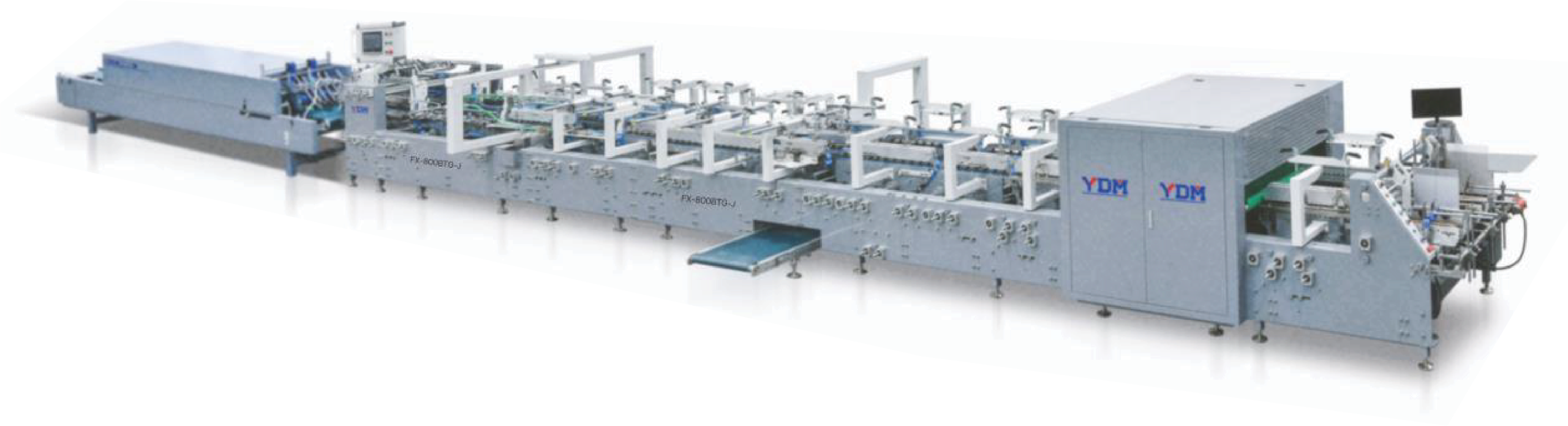

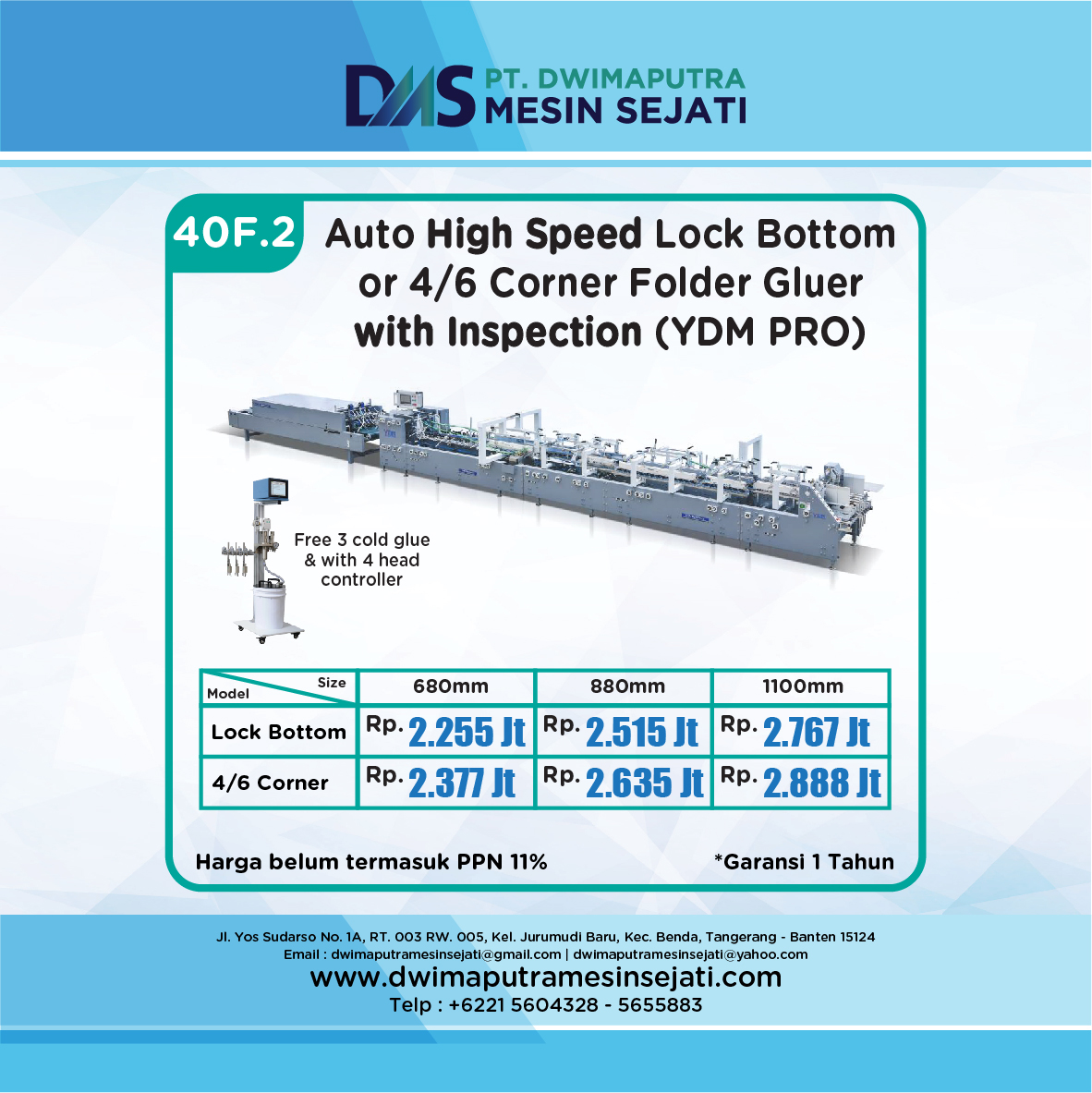

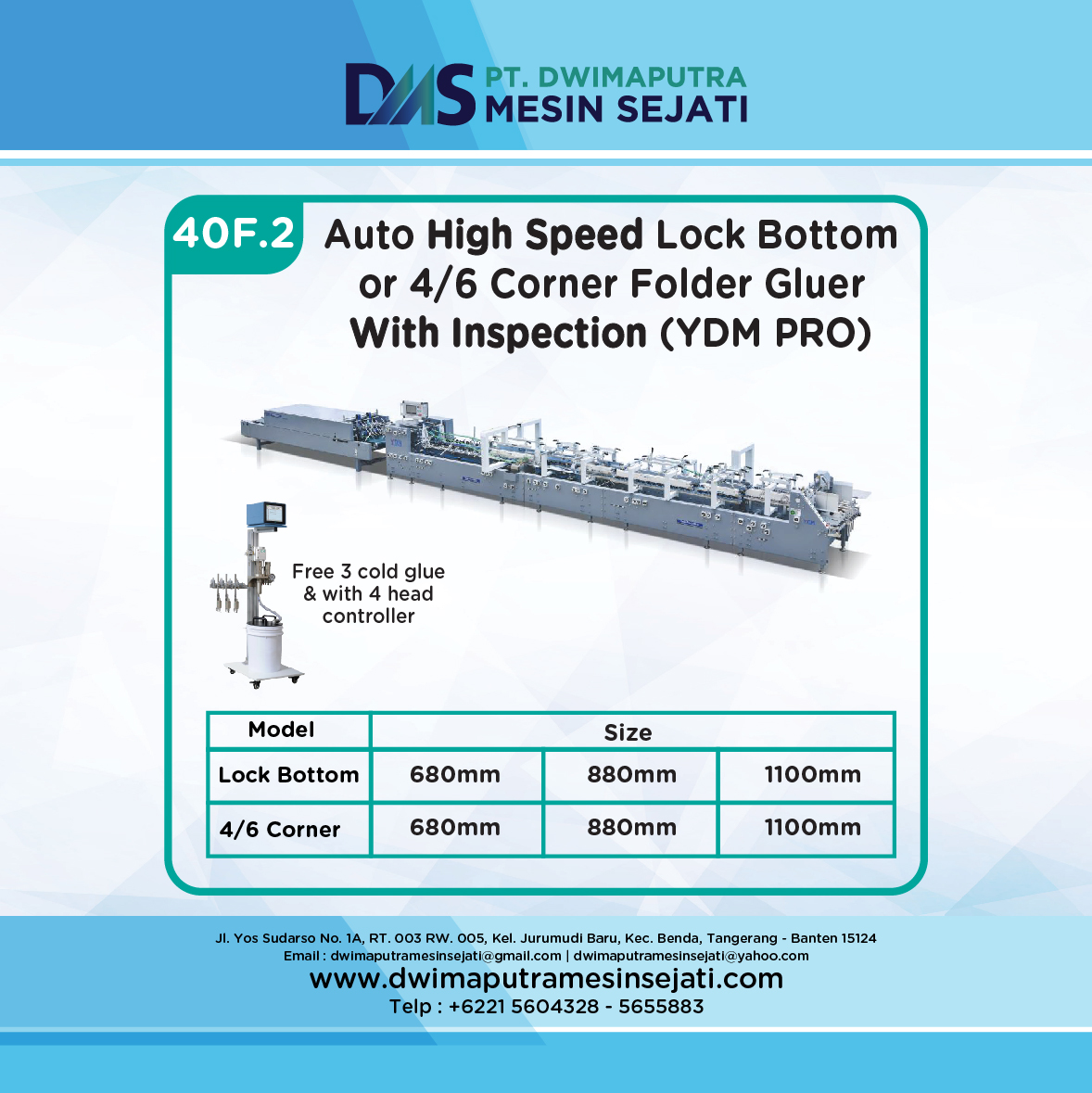

INTRODUCTION & TECHNICAL SPECIFICATION
- LOCK BOTTOM

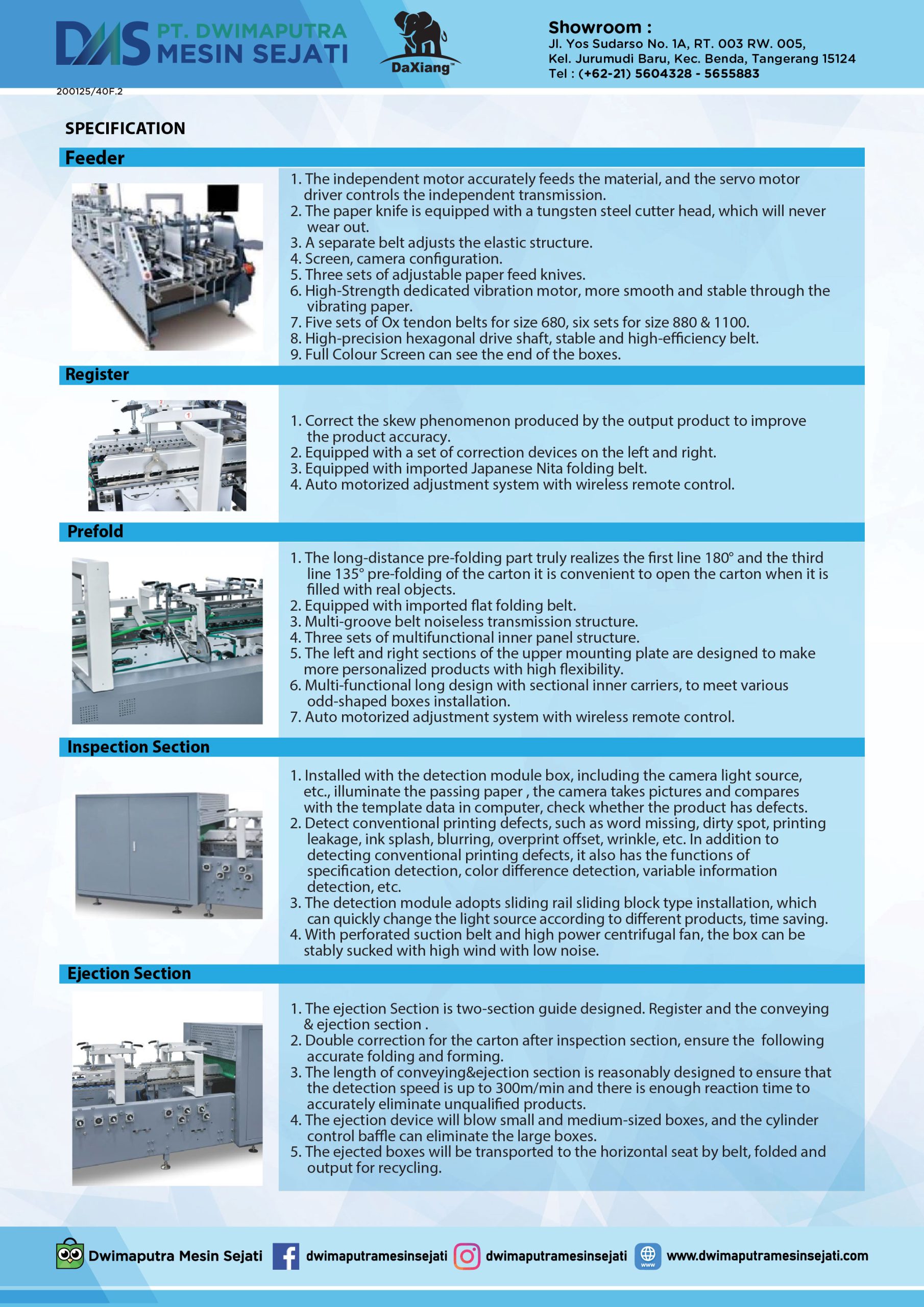

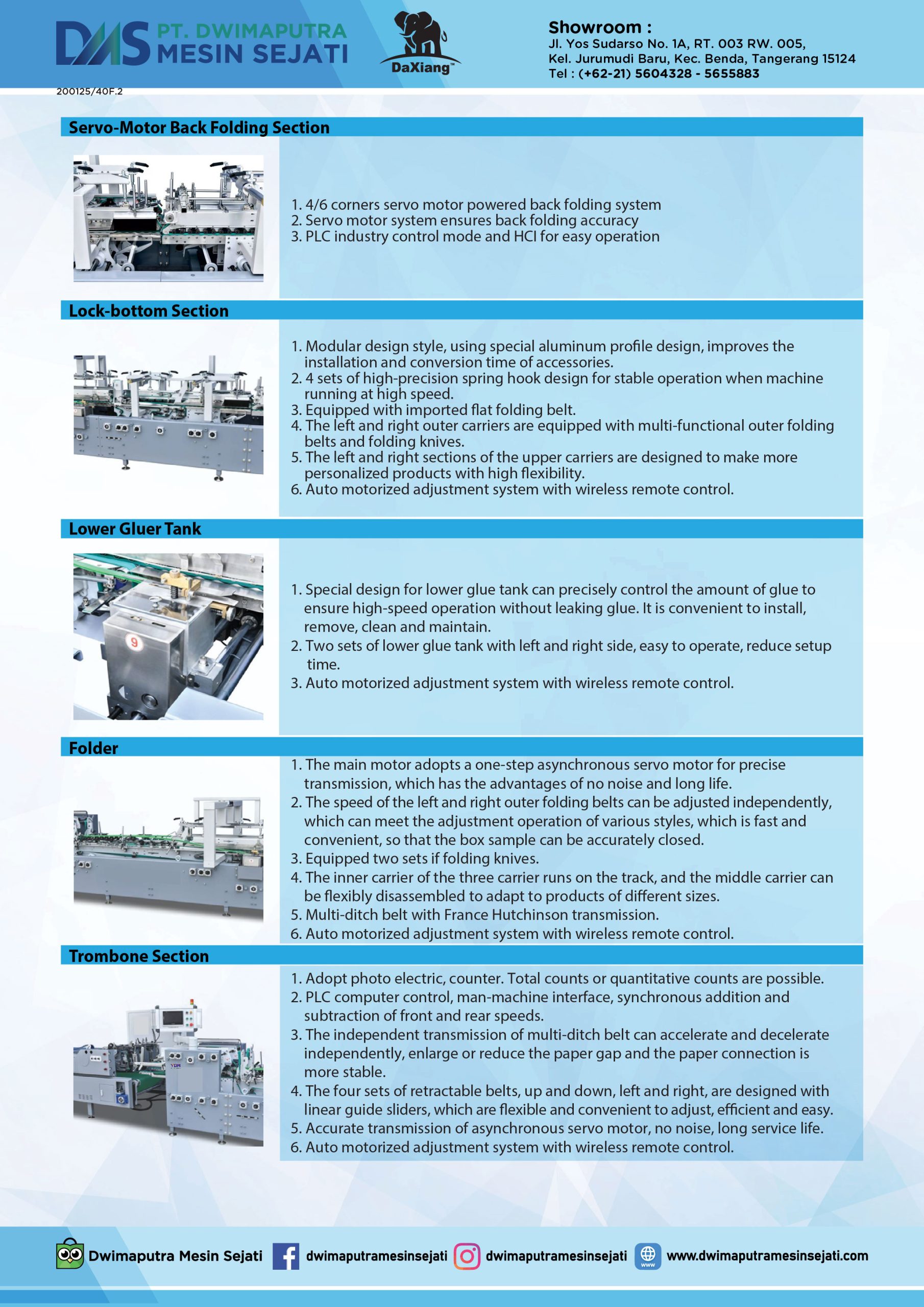

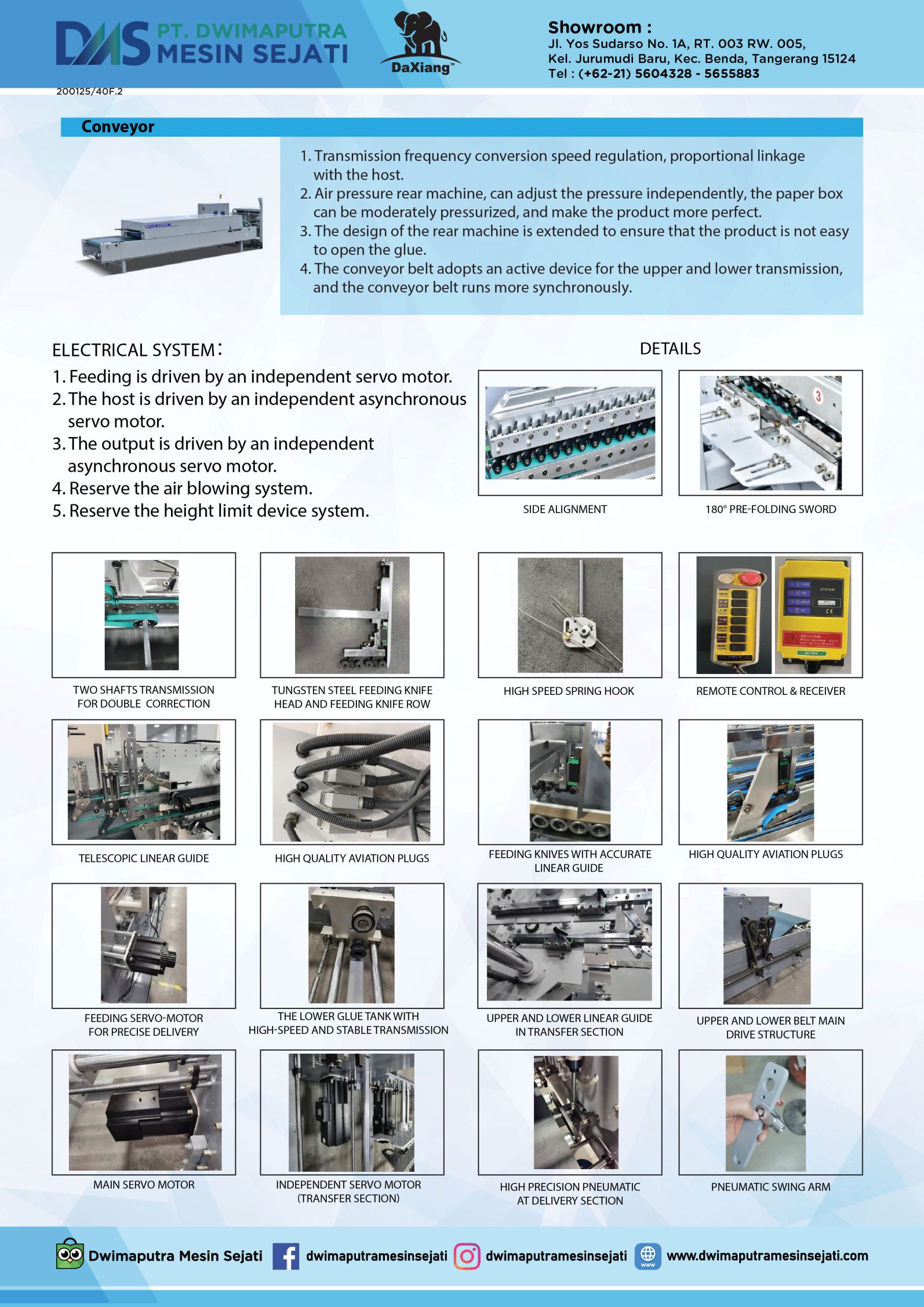

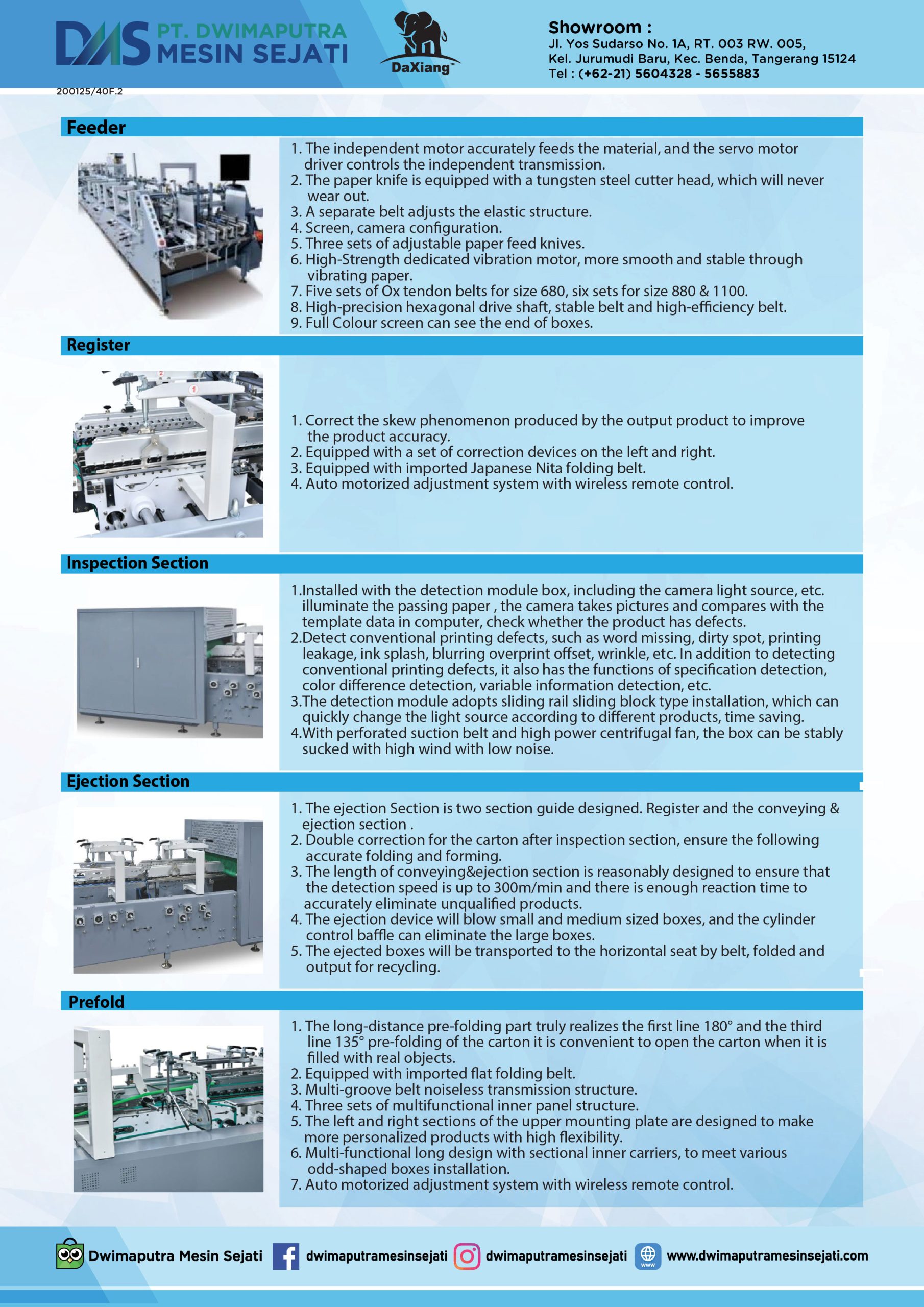

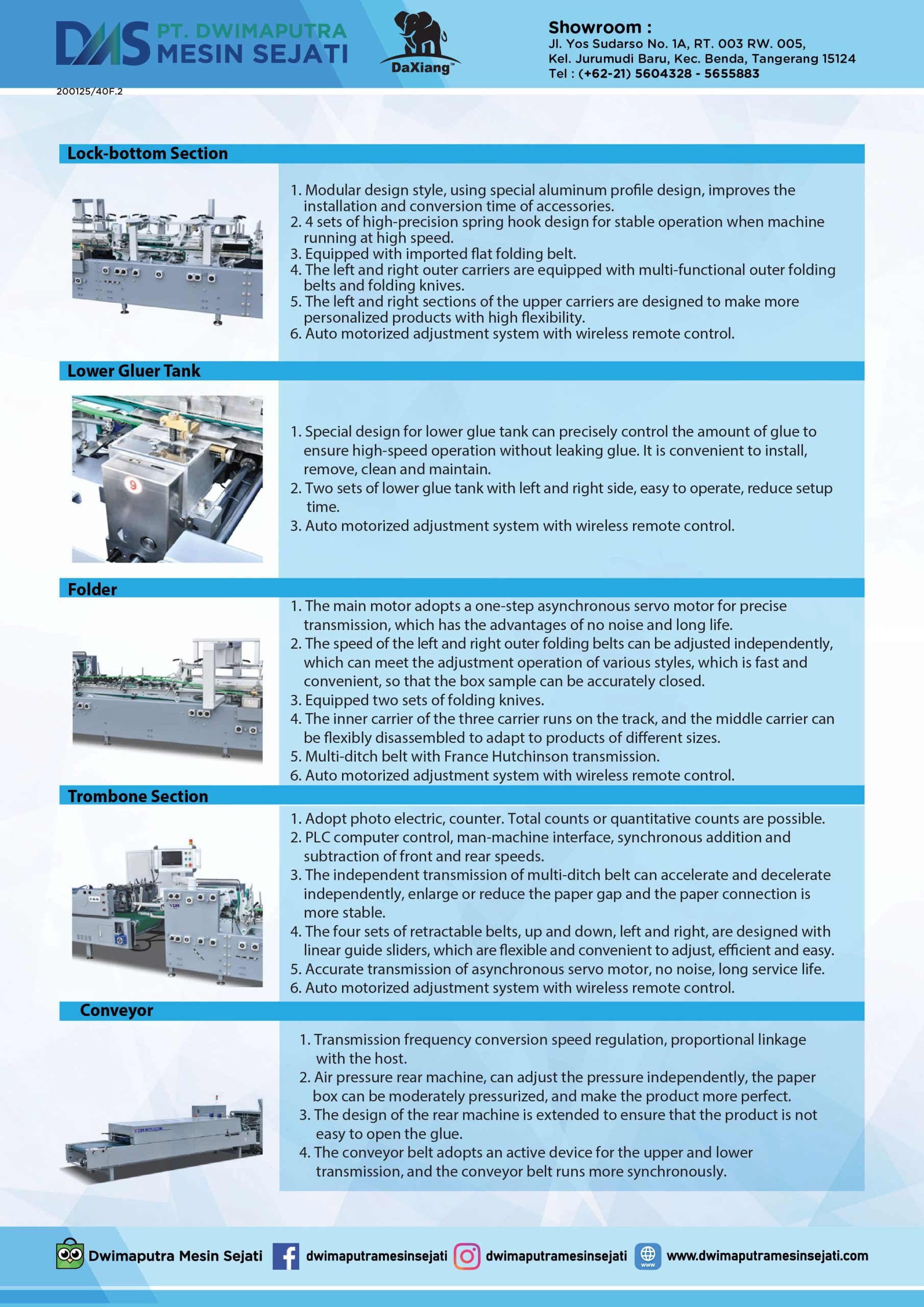

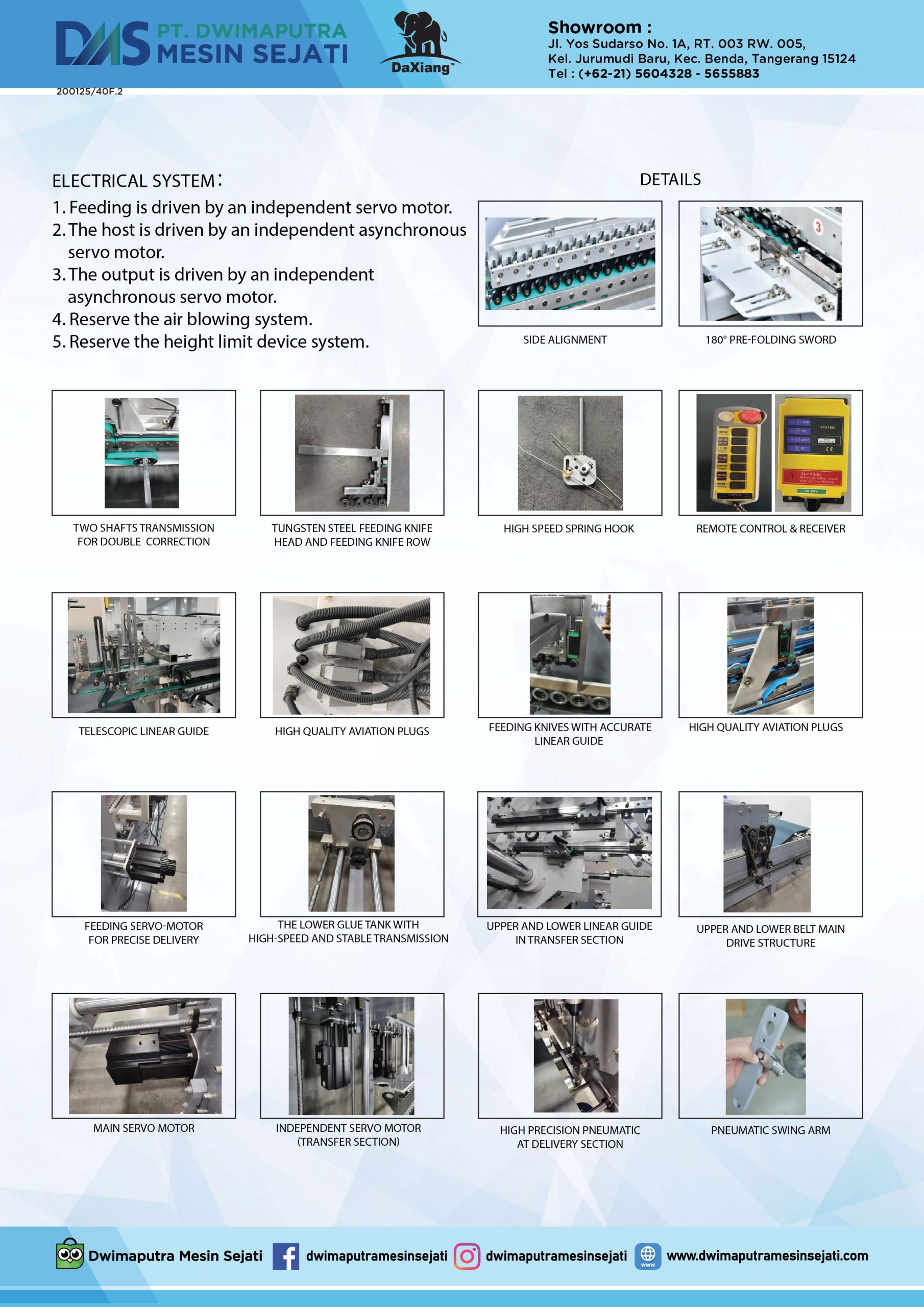

Feeder, main motor and trombone are driven by servo motors. All boards are intelligent remote controlled. Printing quality & defect inspection and gluing all in one machine, ensure product quality. Accurately eliminate detected defective products at high speed without stopping the machine.

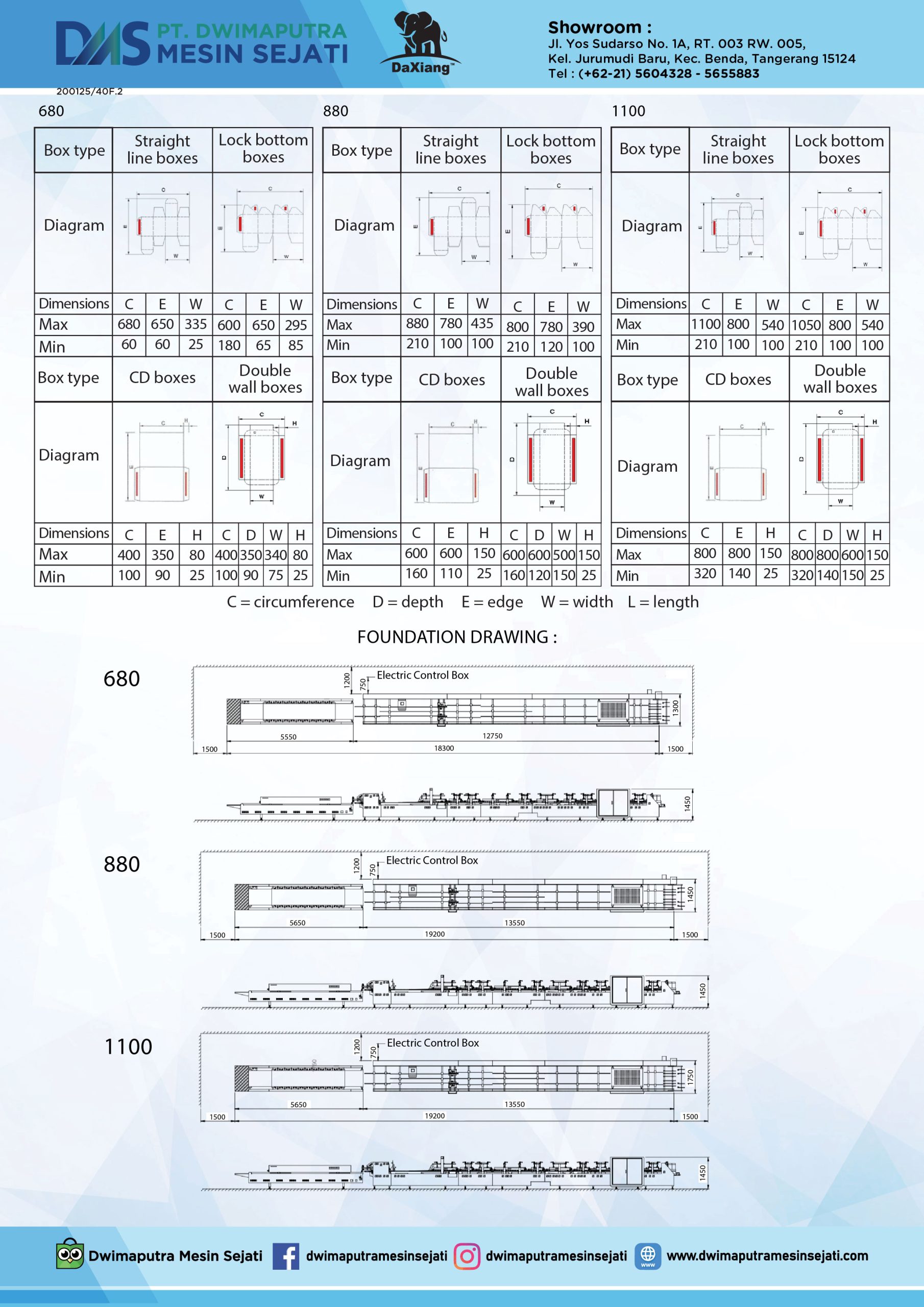

| Model | 680 | 880 | 1100 | |||
| Paper Thickness | 200-800 g/m² | 200-800 g/m² | 200-800 g/m² | |||
| Paper Material | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | |||
| Box Type | Straight Line Box
Max: 680x650mm Min: 60x60mm |
Lock Bottom Box
Max: 600x650mm Min: 180x65mm |
Straight Line Box
Max: 880x780mm Min: 210x100mm |
Lock Bottom Box
Max: 800x780mm Min: 210x120mm |
Straight Line Box
Max: 1100x800mm Min: 210x100mm |
Lock Bottom Box
Max: 1050x800mm Min: 210x100mm |
| Paper Inspection Size | Max. 650mm | Max. 800mm | Max. 1100mm | |||
| Machine Speed | Max. 400m/min | Max. 400m/min | Max. 400m/min | |||
| Inspection Speed | Max. 300m/min | Max. 300m/min | Max. 250m/min | |||
| Feeding Method | Automatic and continuous paper feeding | Automatic and continuous paper feeding | Automatic and continuous paper feeding | |||
| Machine Size | 18300x1300x1450mm | 19300×1550×1500mm | 19300x1750x1500mm | |||
| Machine Weight | ≤9T | ≤10T | ≤12T | |||
| Power Consumption | 31KW | 32KW | 38KW | |||
| Max.Inspection Speed | 300m/min | 300m/min | 250m/min | |||
| Printing Defects | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | |||
| 3D Defects | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | |||
| Variable Data Defects | Barcode, QR code, and verification code errors, code redundancy, missing codes | Barcode, QR code, and verification code errors, code redundancy, missing codes | Barcode, QR code, and verification code errors, code redundancy, missing codes | |||
| Mis-Registration | ±0.15mm | ±0.15mm | ±0.15mm | |||
| Color Difference Accuracy | ΔE ≥ 3NBS | ΔE ≥ 3NBS | ΔE ≥ 3NBS | |||

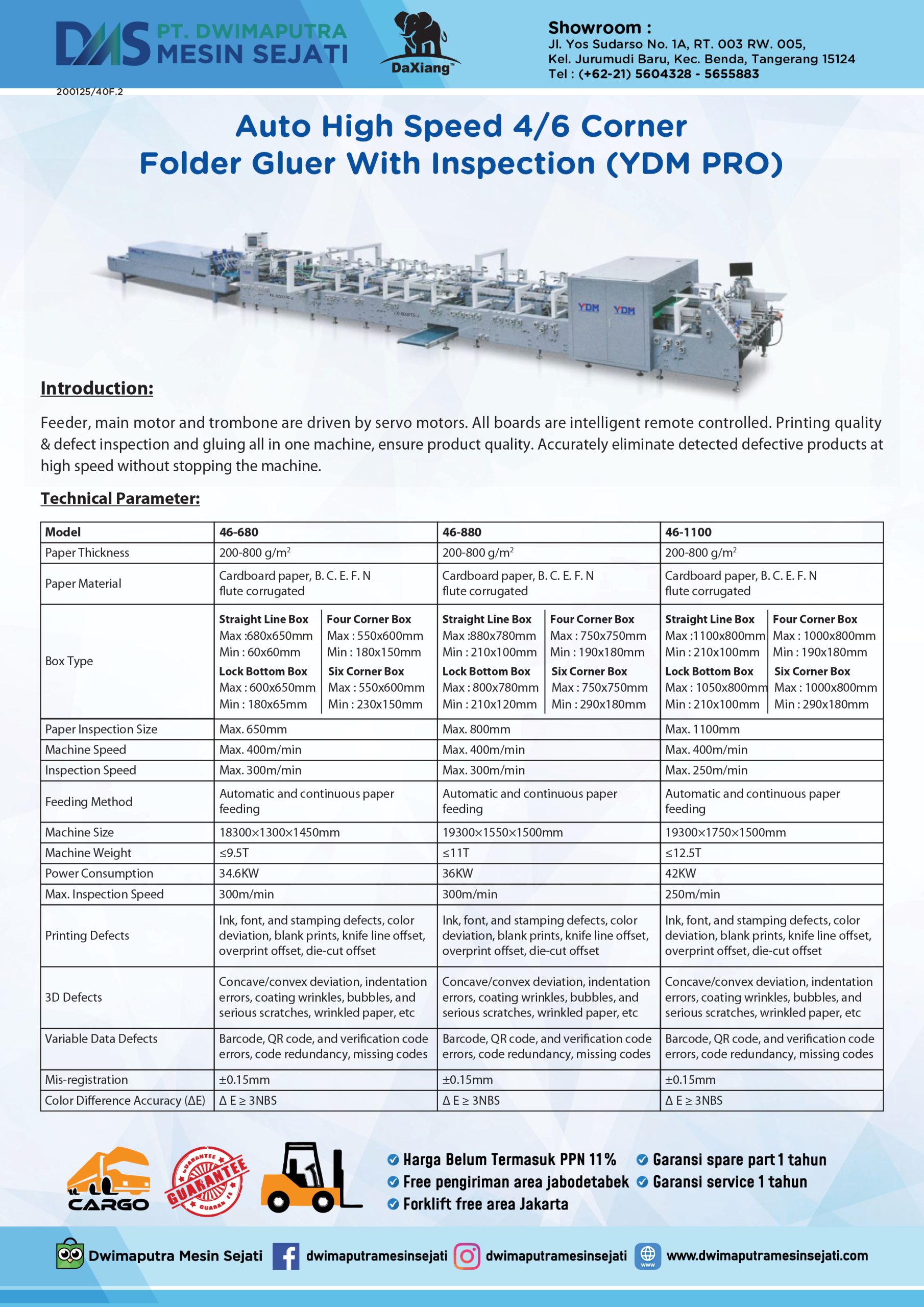

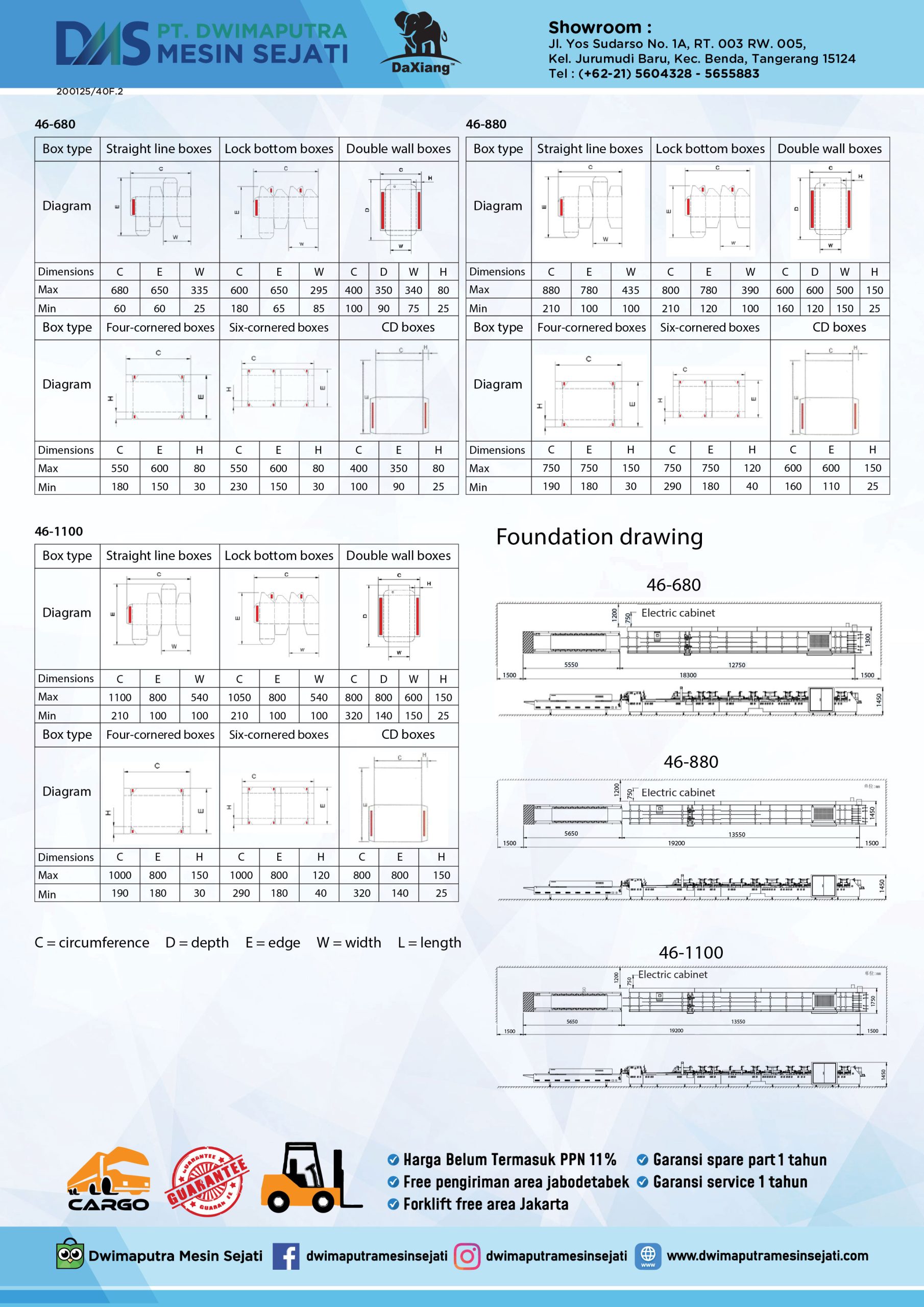

- 4/6 CORNER
Feeder, main motor and trombone are driven by servo motors. All boards are intelligent remote controlled. Printing quality & defect inspection and gluing all in one machine, ensure product quality. Accurately eliminate detected defective products at high speed without stopping the machine.
| Model | 46-680 | 46-880 | 46-1100 | |||
| Paper Thickness | 200-800 g/m² | 200-800 g/m² | 200-800 g/m² | |||
| Paper Material | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | Cardboard paper, B. C. E. F. N flute corrugated | |||
| Box Type | Straight Line Box
Max: 680x650mm Min: 60x60mm |
Four Corner Box
Max: 550x600mm Min: 180x150mm |
Straight Line Box
Max: 880x780mm Min: 210x100mm |
Four Corner Box
Max: 750x750mm Min: 190x180mm |
Straight Line Box
Max: 1100x800mm Min: 210x100mm |
Four Corner Box
Max: 1000x800mm Min: 190x180mm |
| Lock Bottom Box
Max: 600x650mm Min: 180x65mm |
Six Corner Box
Max: 550x600mm Min: 230x150mm |
Lock Bottom Box
Max: 800x780mm Min: 210x120mm |
Six Corner Box
Max: 750x750mm Min: 290x180mm |
Lock Bottom Box
Max: 1050x800mm Min: 210x100mm |
Six Corner Box
Max: 1000x800mm Min: 290x180mm |
|
| Paper Inspection Size | Max. 650mm | Max. 800mm | Max. 1100mm | |||
| Machine Speed | Max. 400m/min | Max. 400m/min | Max. 400m/min | |||
| Inspection Speed | Max. 300m/min | Max. 300m/min | Max. 250m/min | |||
| Feeding Method | Automatic and continuous paper feeding | Automatic and continuous paper feeding | Automatic and continuous paper feeding | |||
| Machine Size | 18300x1300x1450mm | 19300×1550×1500mm | 19300x1750x1500mm | |||
| Machine Weight | ≤9,5T | ≤11T | ≤12,5T | |||
| Power Consumption | 34,6KW | 36KW | 42KW | |||
| Max.Inspection Speed | 300m/min | 300m/min | 250m/min | |||
| Printing Defects | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | Ink, font, and stamping defects, color deviation, blank prints, knife line offset, overprint offset, die-cut offset | |||
| 3D Defects | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | Concave/convex deviation, indentation errors, coating wrinkles, bubbles, and serious scratches, wrinkled paper, etc | |||
| Variable Data Defects | Barcode, QR code, and verification code errors, code redundancy, missing codes | Barcode, QR code, and verification code errors, code redundancy, missing codes | Barcode, QR code, and verification code errors, code redundancy, missing codes | |||
| Mis-Registration | ±0.15mm | ±0.15mm | ±0.15mm | |||
| Color Difference Accuracy | ΔE ≥ 3NBS | ΔE ≥ 3NBS | ΔE ≥ 3NBS | |||
