Description

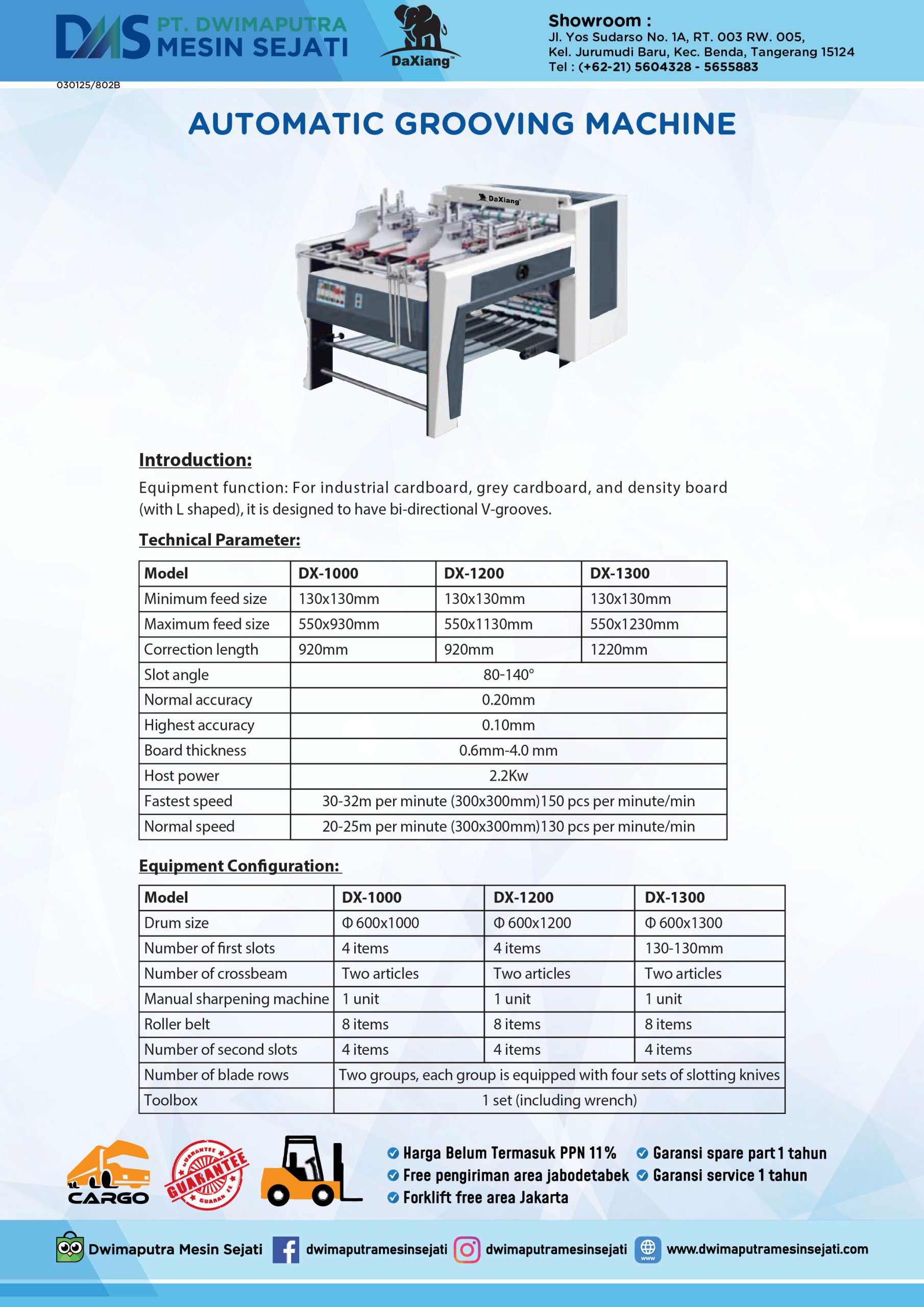

INTRODUCTION & TECHNICAL SPECIFICATION
Equipment function: For industrial cardboard, grey cardboard, and density board (with L-shaped), it is designed to have bi-directional V-grooves.
| Model | DX-1000 | DX-1200 | DX-1300 |
| Minimum feed size | 130x130mm | 130x130mm | 130x130mm |
| Maximum feed size | 550x930mm | 550x1130mm | 550x1230mm |
| Correction length | 920mm | 920mm | 1220mm |
| Slot angle | 80-140° | ||
| Normal accuracy | 0.20mm | ||
| Highest accuracy | 0.10mm | ||
| Board thickness | 0.6mm-4.0 mm | ||
| Host power | 2.2Kw | ||
| Fastest speed | 30-32m per minute (300x300mm) 150 pcs per minute/min | ||
| Normal speed | 20-25m per minute (300x300mm) 130 pcs per minute/min | ||
