AUTOMATIC DIE CUTTING (BIG SIZE WITH STRIPPING) DX-165120S
AUTOMATIC DIE CUTTING (BIG SIZE WITH STRIPPING) DX-165120S - Image 2
AUTOMATIC DIE CUTTING (BIG SIZE WITH STRIPPING) DX-165120S - Image 3

AUTOMATIC DIE CUTTING (BIG SIZE WITH STRIPPING) DX-165120S

PT. Dwimaputra Mesin Sejati, distributor dan layanan purna jual berbagai mesin berkualitas.

Tersedia Tipe:

  • DX-13298S
  • DX-165120S

Hubungi kami untuk informasi lebih lanjut

Category:

Description

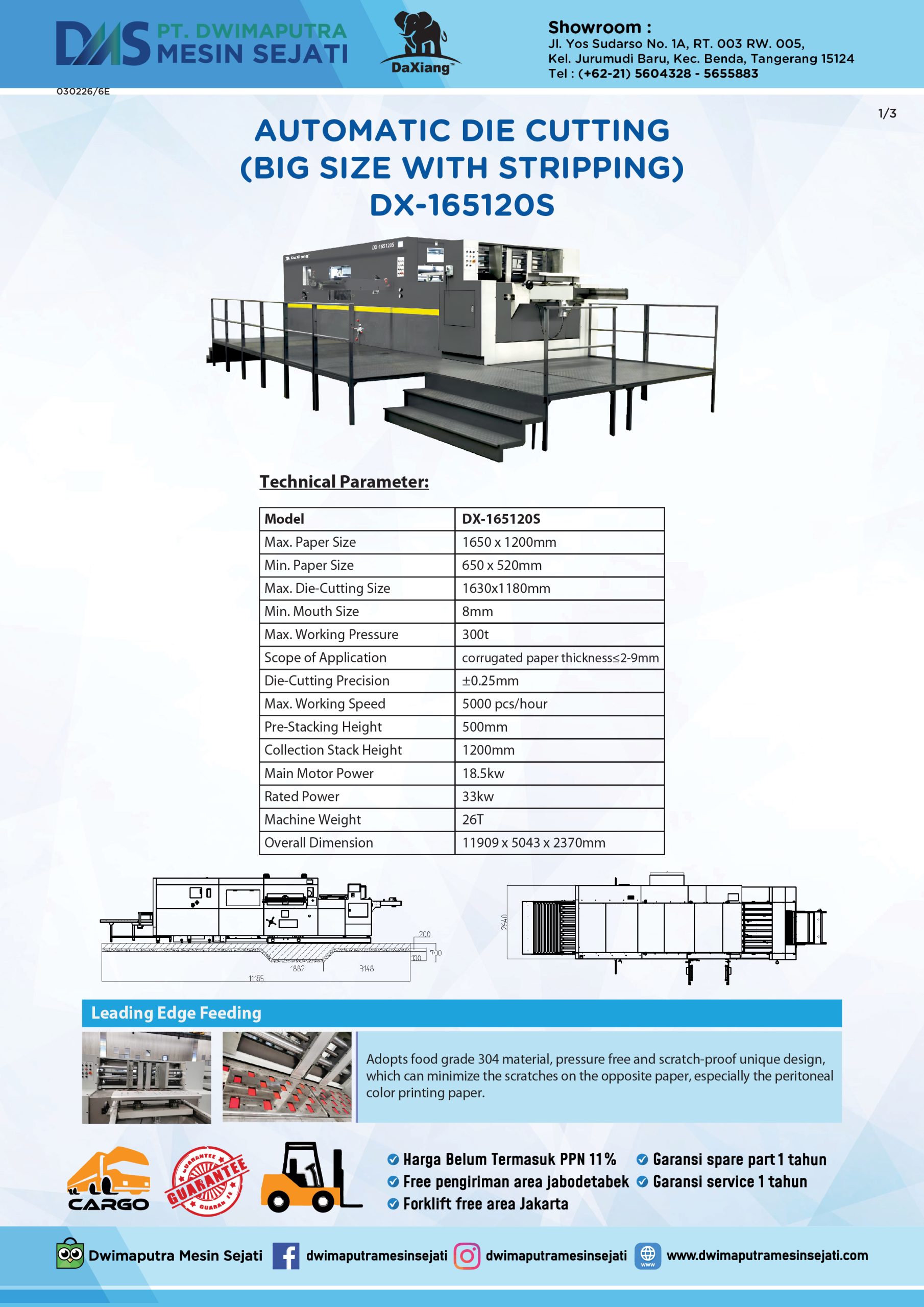

INTRODUCTION & TECHNICAL SPECIFICATION

DX-165120S

Model DX-165120S
Max. Paper Size 1650 x 1200mm
Min. Paper Size 650 x 520mm
Max. Die-Cutting Size 1630x1180mm
Min. Mouth Size 8mm
Max. Working Pressure 300t
Scope of Application Corrugated paper thickness 2-9mm
Die-Cutting Precision ±0.25mm
Max: Working Speed 5000 Second/T
Pre-Stacking Height 500mm
Collection Stack Height 1200mm
Main Motor Power 18.5kw
Rated Power 33kw
Machine Weight 26T
Overall Dimension. 11909 x 5043 x 2370mm
