Description

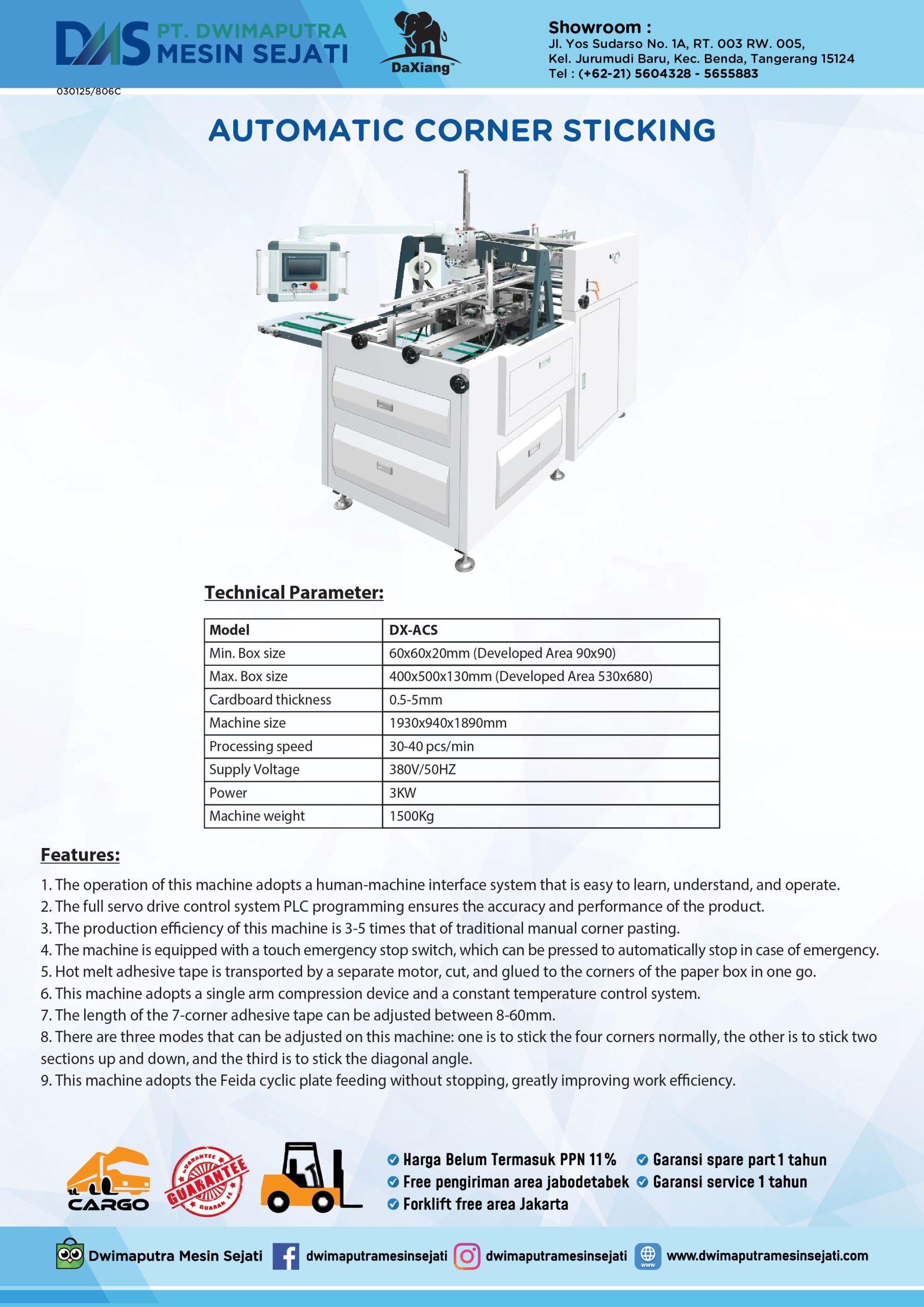

INTRODUCTION & TECHNICAL SPECIFICATION

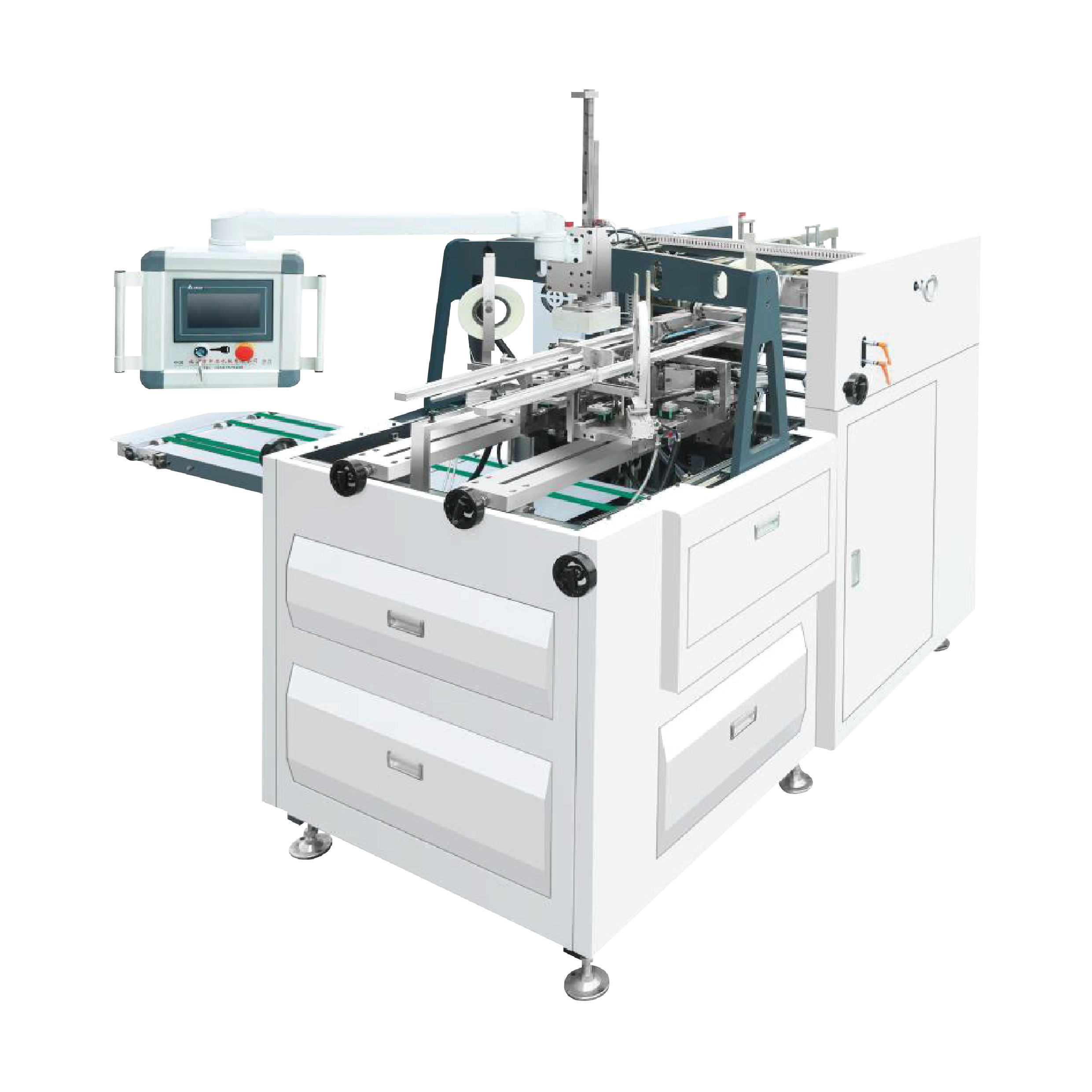

- The operation of this machine adopts a human-machine interface system that is easy to learn, understand, and operate.
- The full servo drive control system PLC programming ensures the accuracy and performance of the product.
- The production efficiency of this machine is 3-5 times that of traditional manual corner pasting.
- The machine is equipped with a touch emergency stop switch, which can be pressed to automatically stop in case of emergency.
- Hot melt adhesive tape is transported by a separate motor, cut, and glued to the corners of the paper box in one go.
- This machine adopts a single arm compression device and a constant temperature control system.
- The length of the 7-corner adhesive tape can be adjusted between 8-60mm.
- There are three modes that can be adjusted on this machine: one is to stick the four corners normally, the other is to stick two sections up and down, and the third is to stick the diagonal angle.
- This machine adopts the Feida cyclic plate feeding without stopping, greatly improving work efficiency.

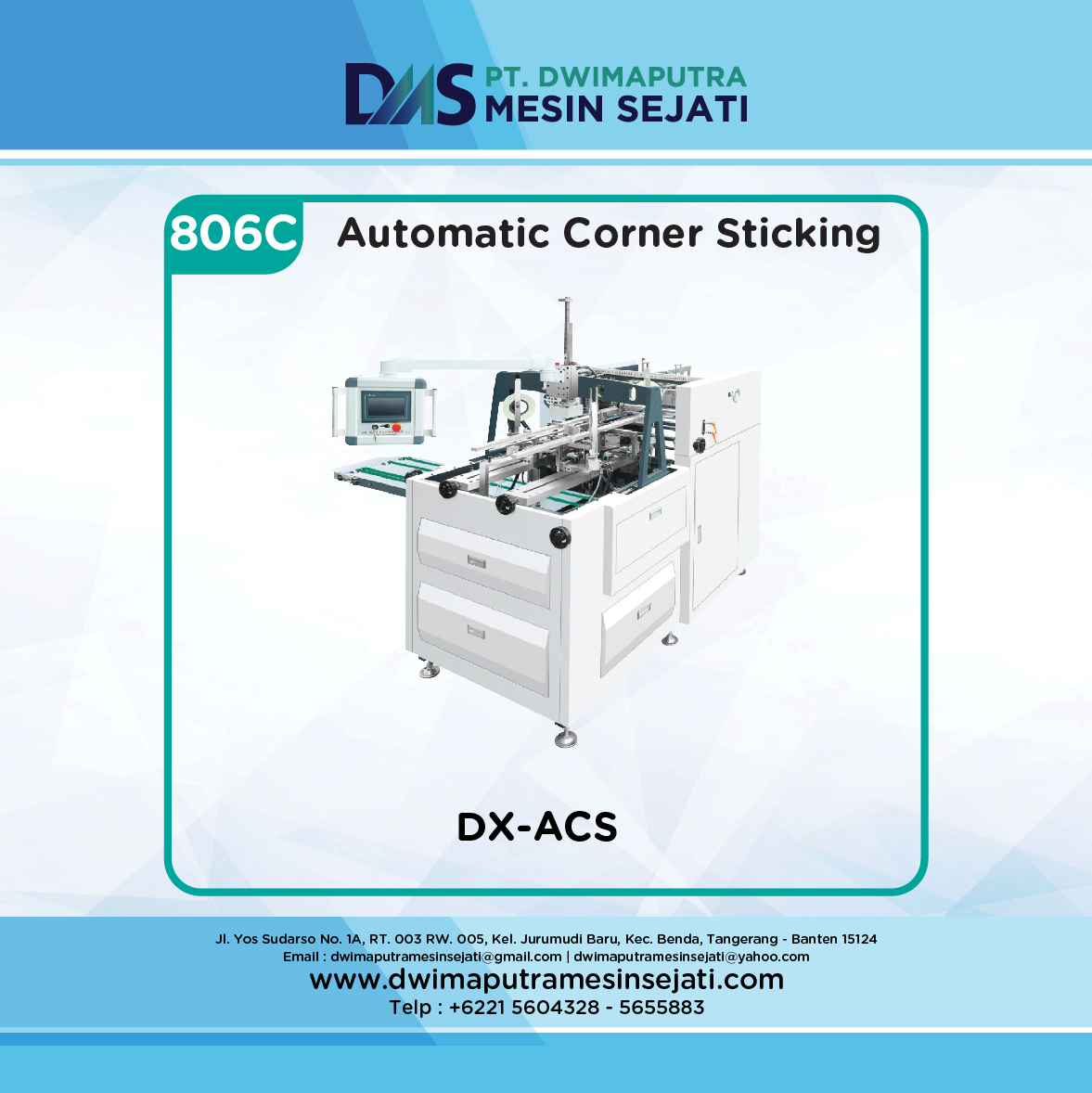

| Model | DX-ACS |
| Min. Box size | 60x60x20mm (Developed Area 90×90) |
| Max. Box size | 400x500x130mm (Developed Area 530×680) |
| Cardboard thickness | 0.5-5mm |
| Machine size | 1930x940x1890mm |
| Processing speed | 30-40 pcs/min |
| Supply Voltage | 380V/50HZ |
| Power | 3KW |
| Machine weight | 1500Kg |
