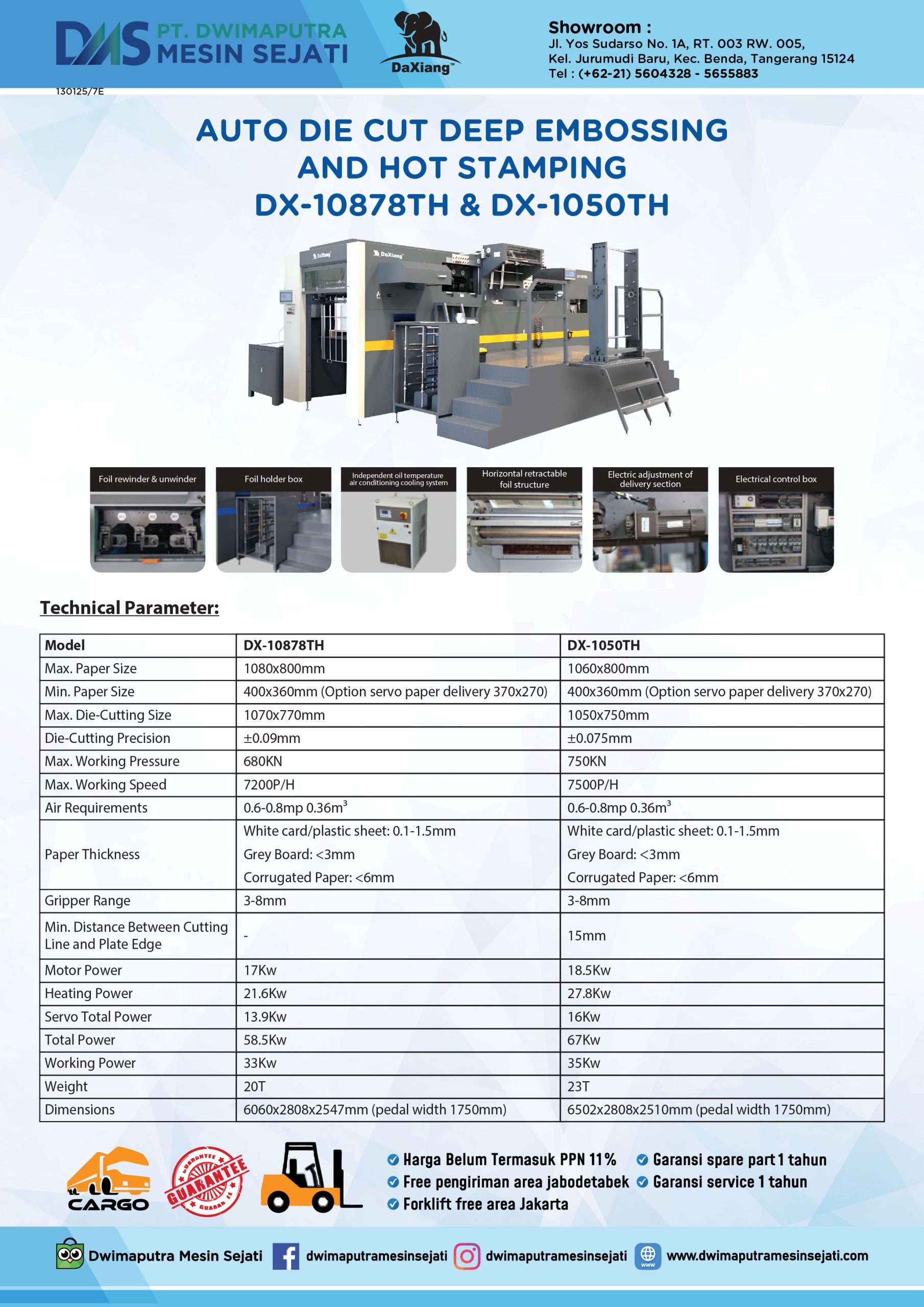

INTRODUCTION & TECHNICAL SPECIFICATION
| Model | DX-10878TH | DX-1050TH |
| Max. Paper Size | 1080x800mm | 1060x800mm |
| Min. Paper Size | 400x360mm (Option servo paper delivery 370×270) | 400x360mm (Option servo paper delivery 370×270) |
| Max. Die-Cutting Size | 1070x770mm | 1050x750mm |
| Die-Cutting Precision | ±0.09mm | ±0.075mm |
| Max. Working Pressure | 680KN | 750KN |
| Max. Working Speed | 7200P/H | 7500P/H |
| Air Requirements | 0.6-0.8mp 0.36m² | 0.6-0.8mp 0.36m² |
| Paper Thickness | White card/plastic sheet: 0.1-1.5mm
Grey Board: <3mm Corrugated Paper: <6mm |
White card/plastic sheet: 0.1-1.5mm
Grey Board: <3mm Corrugated Paper: <6mm |
| Gripper Range | 3-8mm | 3-8mm |
| Min. Distance Between Cutting Line and Plate Edge | – | 15mm |
| Motor Power | 17Kw | 18.5Kw |
| Heating Power | 21.6Kw | 27.8Kw |
| Servo Total Power | 13.9Kw | 16Kw |
| Total Power | 58.5Kw | 67Kw |
| Working Power | 33Kw | 35Kw |
| Weight | 20T | 23T |
| Dimensions | 6060x2808x2547mm (pedal width 1750mm) | 6502x2808x2510mm (pedal width 1750mm) |
