Description
INTRODUCTION & TECHNICAL SPECIFICATION

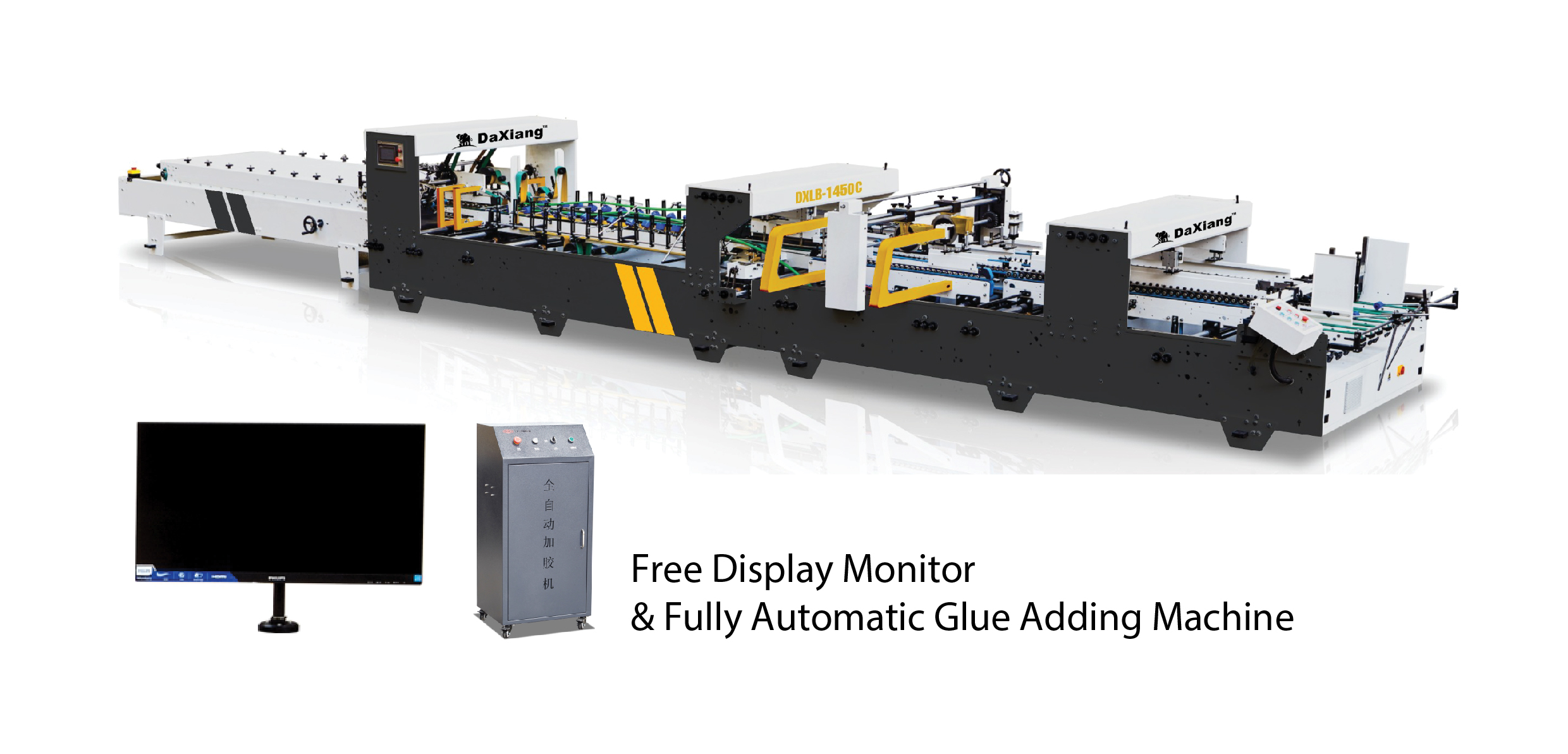

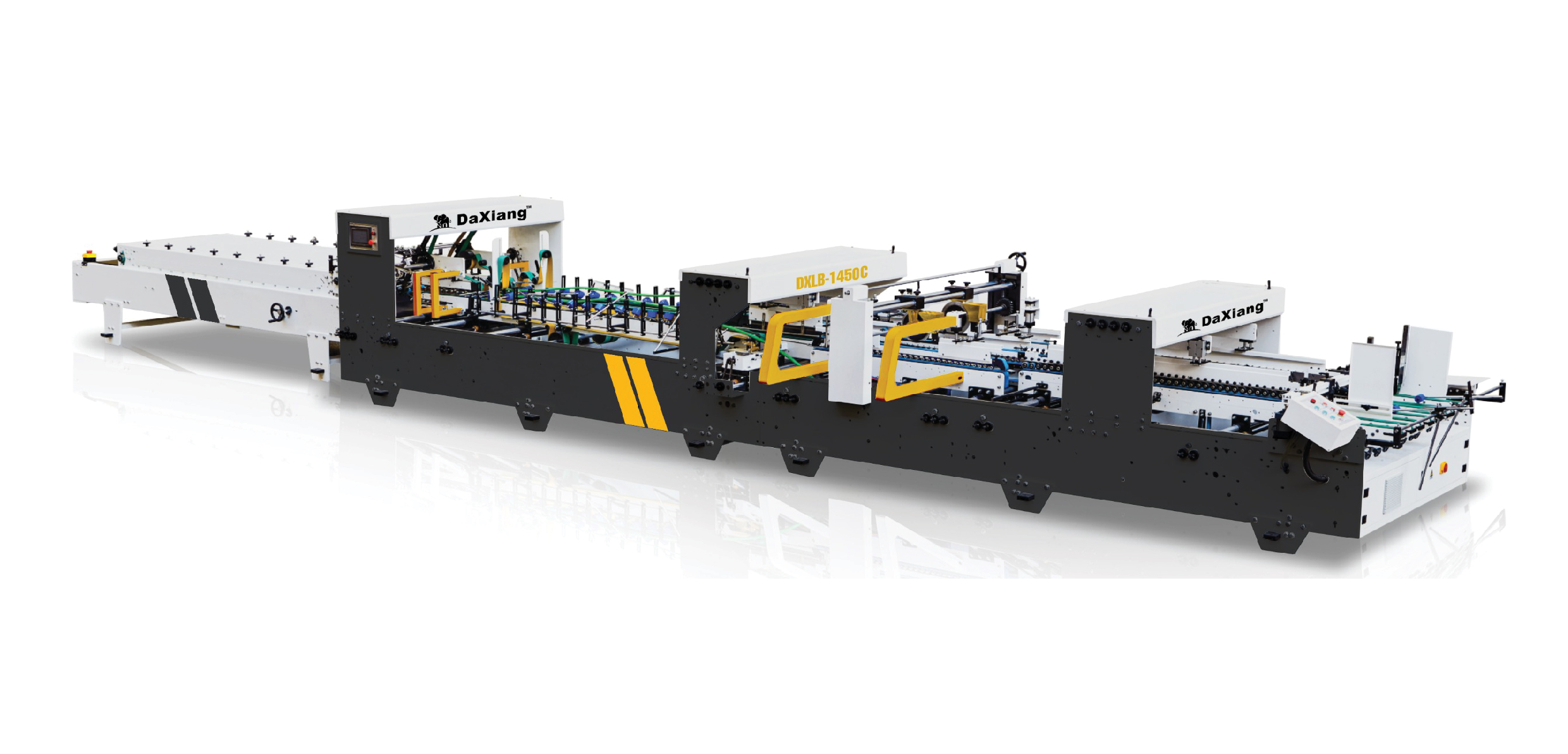

Corrugated folder gluer machine, imported electronic components, feeding section adopts independent electrical control, operation on rail with stable performance and easy to control and operate. This machine is professional for cardboard and corrugated cartons,its correction function make corrugated cartons perfectly meeting the requirements of packaging industry.
| Model | 1050C | 1250C | 1450C | 1650C | 1850C | 2050C |
| Paper Material | Cardboard 200-800g, (A/B/C/E/F-flute) | |||||
| Max. Liner Speed | Max. 220 m/min | |||||
| Feeding Way | Automatically and Continuously Feeding | |||||
| Way of Folding | Fold 2 and fold 4 are 180° | |||||
| Glue Material | Water-base Cold Glue | |||||
| Electric Power | 11.5Kw, 380V 50Hz 3P | 15Kw, 380V 50Hz 3P | ||||
| Weight | 3800Kg | 4200Kg | 4600Kg | 5000Kg | 5400Kg | 5800Kg |
| Over dimension | 15.5×1.6×1.4mm | 15.5×1.8×1.4mm | 15.5×2.0x1.4mm | 15.5×2.2×1.4mm | 15.5×2.4×1.4mm | 15.5×2.6×1.4mm |
